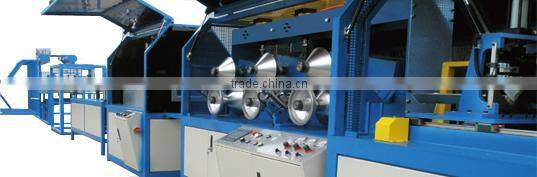

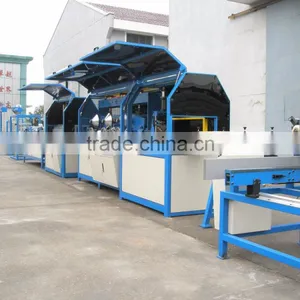

ZJK120G High Speed Paper edge Protector Line
(For making L-profile edge protector only)
Characteristics:
1. ZJK120G model is for making L-profile protector only and maximum working speed is 65m/min.
2. Edge protector forming wheel is suspended structure, easy to change it.
3. Two motors for adjusting speed synchronously, can provide bigger driving force.
4. Touch screen and servo system make ZJK120G machine easy for operating and air cylinder is convenient for pressure regulating.
5. With function of automatic malfunction alarm.
6. Automatic counter for calculating production.
7. Gluing section can control glue temperature and supply glue with fixed volume automatically. So it makes ZJK120G machine can produce edge protector with fast speed and good quality at low temperature (e.g. in Winter).
8. Hoist is equipped to load the paper reel to save labor.
Specification:
Model | ZJK120G |
Max. working speed | 65m/min (Min. cutting length: 800mm) 15m/min (Min. cutting length: 50m) |
L edge protector size | 25-120mm (could be symmetrical and asymmetrical) |
L edge protector thickness | 2.5-10mm |
Inner paper grammage | 420-600g/m2 |
Surface paper grammage | 175-250gsm kraft |
Core diameter of paper reel | 3"(76mm) |
Layers | 3-13 |
Paper reel diameter | 1300mm as maximum |
Machine dimension | 24500x1350x1700mm |
Machine weight | 6500KG |
Total power | 17KW (include 6.5KW for heat forming and 4.5KW for glue heating) |
Compressed air requirement | 0.8MPa/0.2m3 (customer provide) |
Details of ZJK120G machine:
Control system | PLC, servo motor, Touch screen (HIM) |
Paper stands | Composite stands with hoist for inner paper. Separate paper stand for surface paper. |
Method to load paper roll | Load inner paper rolls with hoist (equipped on ZJK120G machine). Load surface paper roll with manual hydraulic forklift. No need to stop machine when loading paper rolls. |
Paper feeding and laminating | Multilayer laminating |
Gluing system | Multilayer gluing |
Glue heating | Electrical heating with temperature control system |
Glue feeding | Automatic feeding with diaphragm pump |
Pressing adjustment | Pneumatic control |
Protector heating | Electrical heating |
Cut method | Cam structure cutter |
Quantity of cutter | 1 cutter |
Min cut length | 5cm |
Cutting precision | ±1mm |
Stacker | Automatic stacking |
Operator | 2-3 workers |
Required container | One 40"container |
