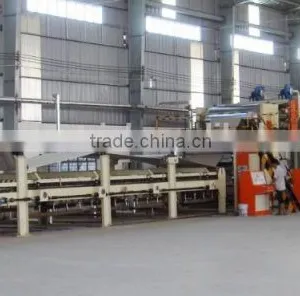

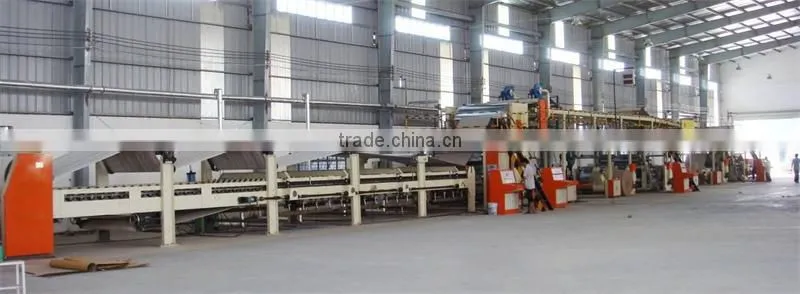

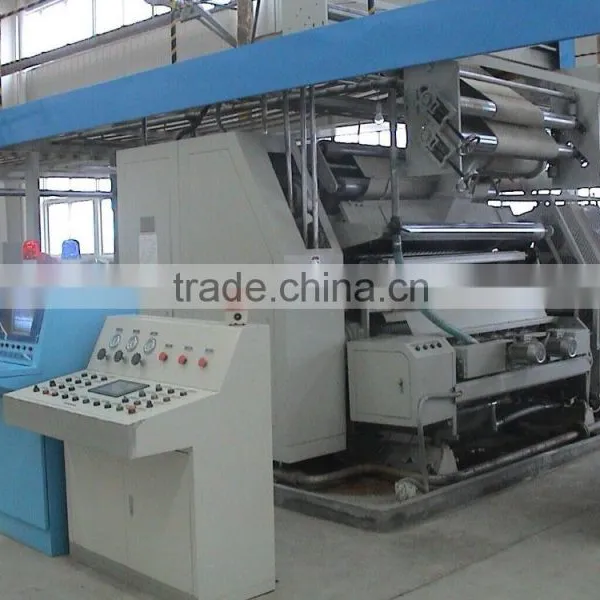

CL150-1800-5ply production line
Steam heating
Standard configuration and quotation
Distinguishing feature:
After service: |
Engineers available to service macinery overseas |
Certificate |
CE and ISO |
Machine weight |
23000KG |
Machine dimension |
75000 x 8000 x 5000mm |
Driving type |
Electric drive |
Heating Method |
Steam heating |
Automation |
Automatic control |
Package |
Covered with plastic film |
Machine status |
100% NEW |
HS Code |
84413090 |
Designed speed |
150 m/min |
Working speed |
80-120m/min |
Delivery time |
120 days |
Operator quantity |
4-5 persons |
Technician quantity for commissioning |
2 technicians |
Time for commissioning |
30 days |
Main Technology Parameters:
n Model CL150-1800
n Total length About 75 meters (depend on base drawing)
n Design speed 150 m/min
n Working speed 100-120 m/min for 3-ply, 80-100 m/min for 5-ply
n Effective width 800-1800mm
n Steam pressure and consumption
Pressure 1.4 - 1.6MP Consumption about 2500-3000kg/h
n Air pressure and consumption
Pressure0.8 - 1.0 MPa consumption about: 1.5 m3/min
n Slitting precision:±1mm(manual)
n Cutting length and precision 500 - 9999mm, ±1mm
n Dimension about 75m×8m× 5m (L×W×H)
n Equipment flow: according the customers’ workshop to installation the machine
Note: Test basis paper for production line should meet follow requirements;
n Machine surface temperature: not less than 172℃
n Basis paper scale ≥B
n Basis paper moisture: 11%±1%
liner: 150 - 200 g/m2; medium paper: 150 - 200 g/m2;
corrugated paper: 105 - 180 g/m2
Note: some parts equipped by consumers
n Heating system: one set steam boiler that rate capacity is 4000kg/h, rated pressure 1.25Mpa
n Steam pipe (Dia.114mm) and air return-air drainage duct (Dia.89mm).
n Compressored air tupe, glue pipe, steam pipe and air return pipe
n Water, electricity, gas installation ground work.
n Equipment machine grease, lubrication oil, engine oil.
n Test basis paper, corn(potatoes)starch, caustic soda for industrial use, Borax and other material
