Home > Products > 5050 SMD LED Module > DC12V super brightness SMD 5050 led module IP65 waterproof 5050 led module

DC12V super brightness SMD 5050 led module IP65 waterproof 5050 led module

FOB Price

USD $0.2 - $0.3 / Piece

1000 Pieces(Min.Order)

Product Details

Product Picture:

Features:

1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, a long life-span, maintenance-free.

3. IP Rate: IP65,waterproof.

4. DC 12V low voltage input, reliable and safe.

5. LED Modules can be easily installed with 3M double-sided sticking tape and connectors.

Specifications:

LED Type	5050 SMD LED
LED BRAND	Epistar chip from Taiwan
Viewing Angle	≥120°
Luminous Flux(lm)	80 LM
LED Qty	4 pcs
Life Span	50,000 H
Working Voltage	DC12V
Consumption	1 W
Driving Method	constant voltage
Stand Length In Serial Connection	20pcs
Maximum Length In Serial Connection	≤20pcs
Shell	Milk white PVC
Dimension	35354 mm
Available Color	W/WW/CW/R/G/B/Y
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

Package:

Every 20 pcs per a string, every 5 string in an anti-static bag, 3000 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 9 g/pc; 180 g/string; 28kg/carton.

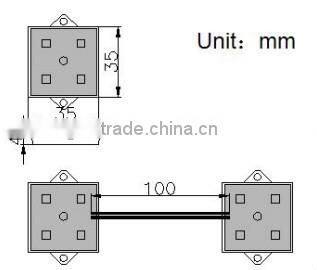

Dimension Diagram(mm):

Application:

1. Backlight of giant signage ,channel letter and lighting box.

2. Marine signal and task lighting.

3. Architectural outdoor lights.

CE & RoHS Certifications:

Exhibition Pictures:

Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)

2014 GZ& Shanghai International Lighting EXPO
