Home > Products > 5050 SMD LED Module > Factory sale IP68 waterproof injection 5050 led module

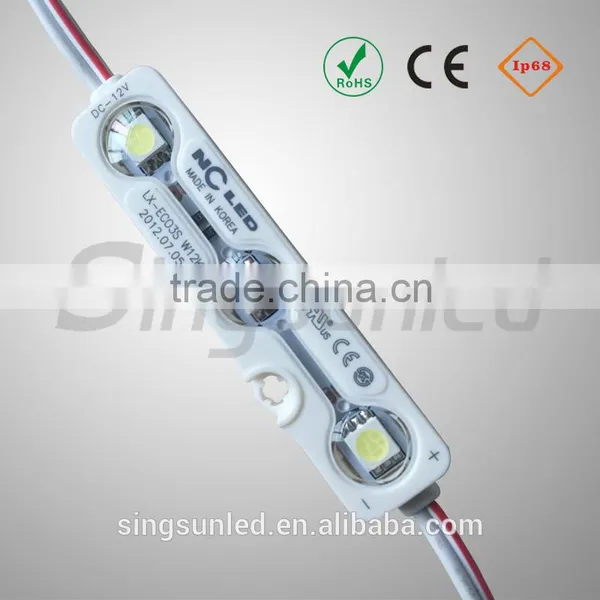

Factory sale IP68 waterproof injection 5050 led module
- 50000 Piece / Pieces per Month
- Yantian port
- Credit Card
Product Details
| Model Number: | STF-K3 | Chip Material: | InGaN | Emitting Color: | Other, warm white/nature white/cool white/R/G/B/Y |
| Luminous Flux(lm): | 60-66lumen | Optical Attenuation(%): | 3% | Power: | Other, 0.72watt |
| Power Dissipation: | 0.72 | Color Rendering Index(Ra): | 75 | Color Temperature: | 2700-12000k |
| Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | -50, 60 | Place of Origin: | Guangdong, China |
| Brand Name: | singsunled | Certification: | CE |
Product Description
Factory sale IP68 waterproof injection 5050 led module.
Features:
1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 20-22LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP68, waterproof.
5. DC 12V low voltage input , reliable and safe.
6. Adopt series-parallel connection circuit, 20/50pcs per string, each module could be singled out.
7. Viewing angle: 120°.
8. Three years warranty.
Product Specifications:
LED Type | 5050 SMD LED |
LED BRAND | Epistar chip from Taiwan |
Viewing Angle | 120° |
Luminous Flux(lm) | 60 LM |
LED Qty | 3 pcs |
Life Span | 50,000 H |
Working Voltage | DC12V |
Consumption | 0.72 W |
Driving Method | CV |
Stand Length In Serial Connection | 20pcs/50pcs |
Maximum Length In Serial Connection | ≤50pcs/≤20pcs |
Shell | white ABS |
Dimension | 66*15*7.5 mm |
Available Color | W/WW/CW |
Certification | CE&ROHS |
Working Temperature | -20℃ —— +60℃ |
Store Temperature | -50℃ —— +60℃ |
IP Degree | IP68 |
Package:
Every 50 pcs per a string, every 2 string in an anti-static bag, 2000 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 9 g/pc; 450 g/bag; 18kg/carton.
Connection Diagram:
Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ& Shanghai International Lighting EXPO
2015 Dubai SGI exhibition (Time: 11-13, January, 2015. Booth No: A-F01)
