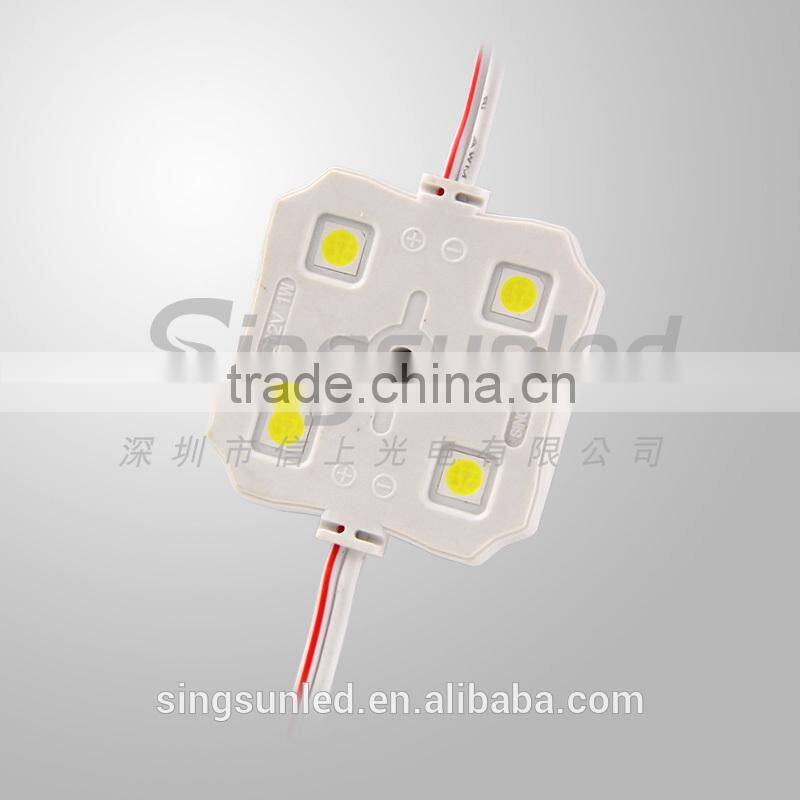

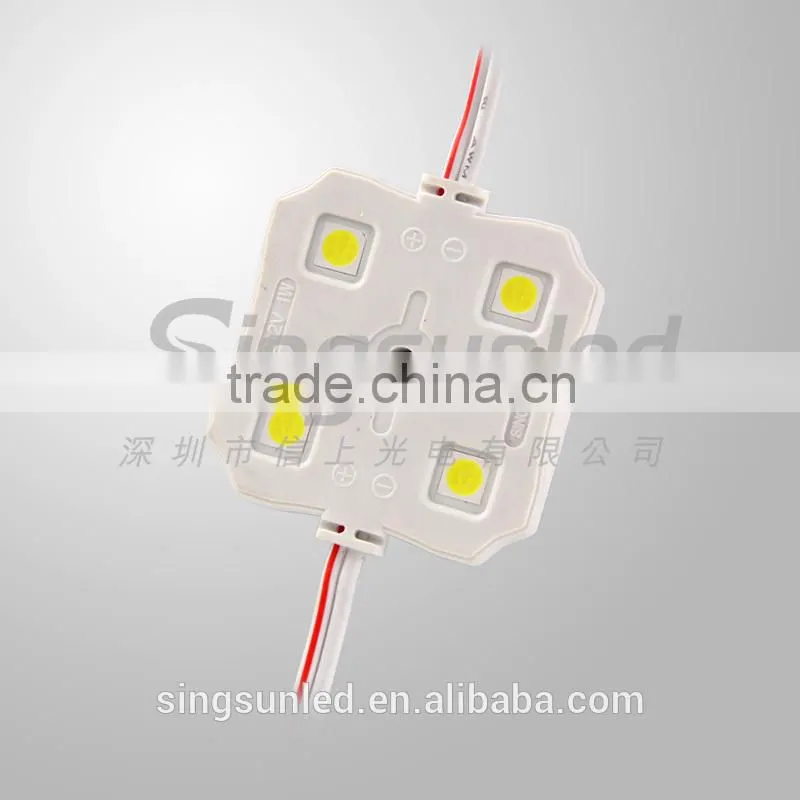

Features:
1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect.
4. IP Rate: IP65, waterproof.
5. DC 12V low voltage input, reliable and safe.
6. Adopt series-parallel connection circuit, 20pcs for 1 string, each module could be singled out.
Product Specifications:
LED Type | 5050 SMD LED |
LED BRAND | Epistar chip from Taiwan |
Viewing Angle | ≥120° |
Luminous Flux(lm) | 80 LM |
LED Qty | 4 pcs |
Life Span | 50,000 H |
Working Voltage | DC12V |
Consumption | 1 W |
Driving Method | constant voltage |
Stand Length In Serial Connection | 20pcs |
Maximum Length In Serial Connection | ≤20pcs |
Shell | Milk white PVC |
Dimension | 37*37*5.5 mm |
Available Color | W/WW/CW/R/G/B/Y |
Certification | CE&ROHS |
Working Temperature | -20℃ —— +60℃ |
Store Temperature | -50℃ —— +60℃ |
IP Degree | IP65 |

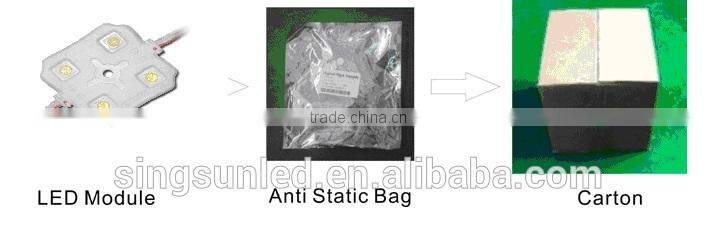

Package:
Every 20 pcs per a string, every 4 string in an anti-static bag, 2000 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 12 g/pc; 240 g/string; 25kg/carton.

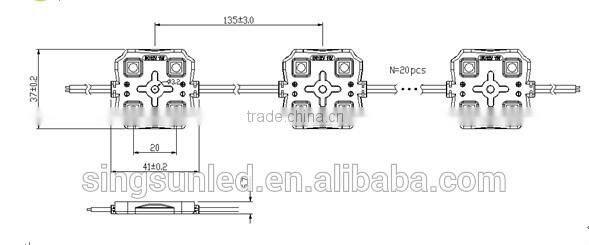

Dimension Diagram(mm):

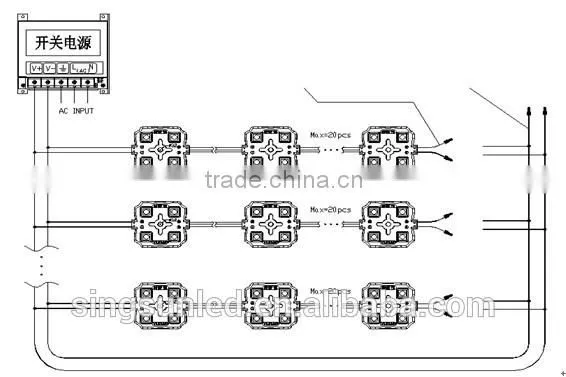

Connection Diagram:

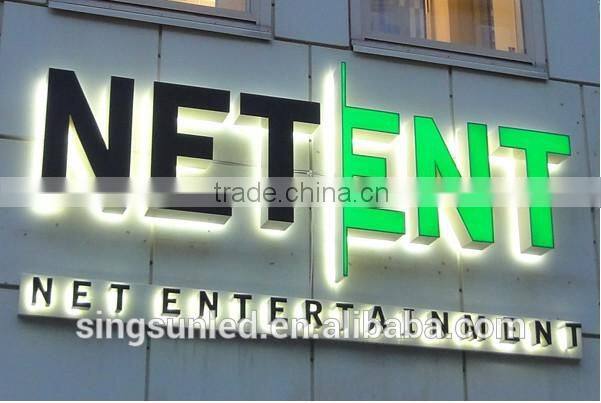

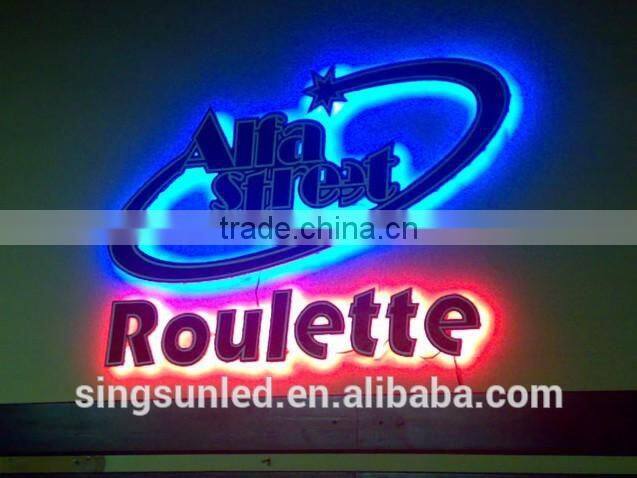

Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ& Shanghai International Lighting EXPO
