Home > Products > 5050 SMD LED Module > DC12V 0.72watt waterproof 3 chips 5050 smd led module 3 years warranty 5050 injection led module

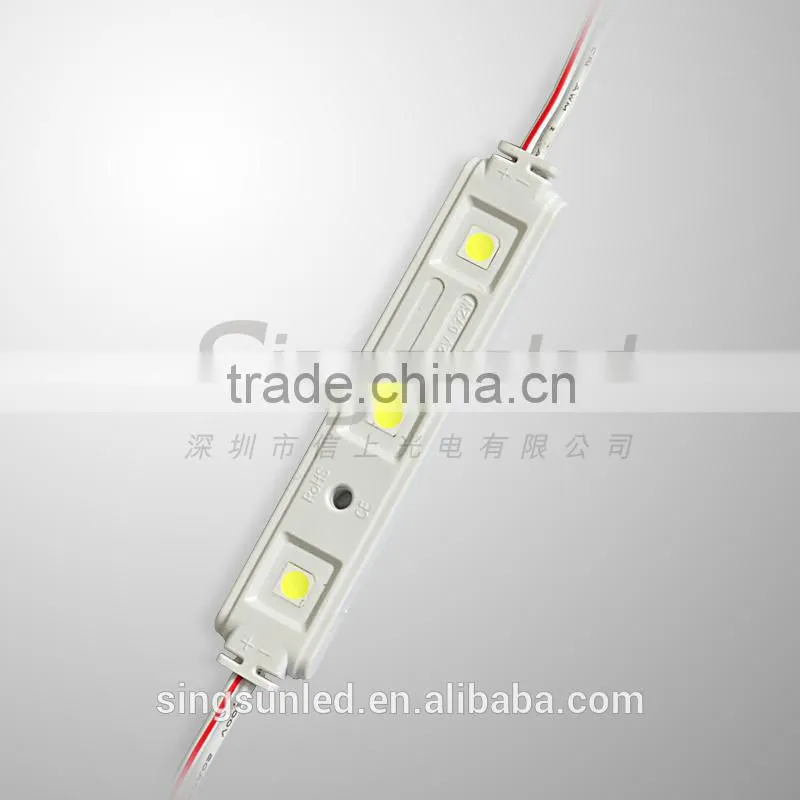

DC12V 0.72watt waterproof 3 chips 5050 smd led module 3 years warranty 5050 injection led module
- 50 Piece / Pieces per Month
- Credit Card
Product Details
Model Number: | SZ-75123X-50 | Emitting Color: | Other, warm white/nature white/cool white/R/G/B/Y | Luminous Flux(lm): | 60lumen |
Optical Attenuation(%): | 3% | Power: | Other, 0.72watt | Color Rendering Index(Ra): | 75 |
Color Temperature: | 2700-12000k | Operating Temperature(℃): | -20, 60 | Storage Temperature(℃): | -50, 60 |
Place of Origin: | Guangdong, China | Brand Name: | singsunled | Certification: | CE |
Product Description
Features:
1. Adopt TOP 5050 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect.
4. IP Rate: IP65,waterproof.
5. DC 12V low voltage input, reliable and safe.
6. Adopt series-parallel connection circuit, 20Pcs for 1 string, each module could be singled out.
Product Specifications:
LED Type | 5050 SMD LED |
LED BRAND | Epistar chip from Taiwan |
Viewing Angle | ≥120° |
Luminous Flux(lm) | 60 LM |
LED Qty | 3 pcs |
Life Span | 50,000 H |
Working Voltage | DC12V |
Consumption | 0.72 W |
Driving Method | constant voltage |
Stand Length In Serial Connection | 20pcs |
Maximum Length In Serial Connection | ≤20pcs |
Shell | Milk white PVC |
Dimension | 78*15*5.5 mm |
Available Color | W/WW/CW/R/G/B/Y |
Certification | CE&ROHS |
Working Temperature | -20℃ —— +60℃ |
Store Temperature | -50℃ —— +60℃ |
IP Degree | IP65 |

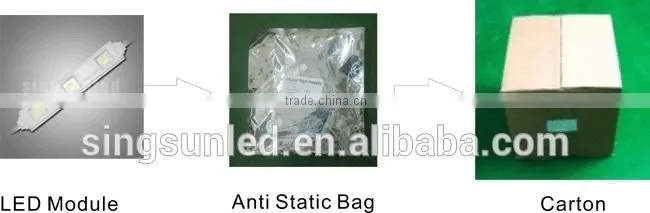

Package:
Every 20 pcs per a string, every 5 string in an anti-static bag, 2500 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 11 g/pc; 220 g/string; 26kg/carton.

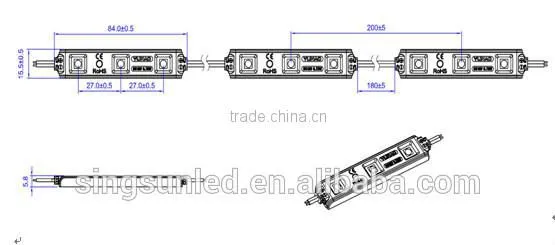

Dimension Diagram(mm):

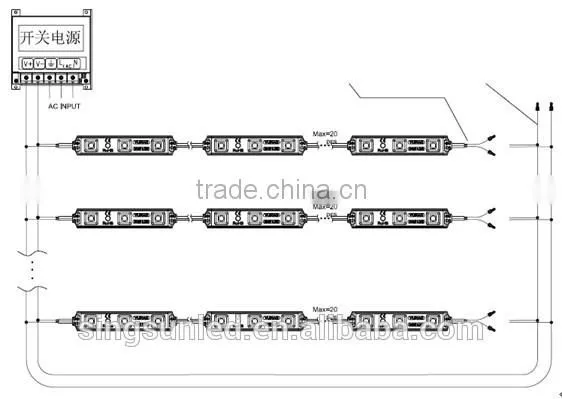

Connection Diagram:
Application:
1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ& Shanghai International Lighting EXPO
