High quality 2835 smd DC 12V 0.72W led module with CE RoHS
LED Type |
2835 SMD LED |
LED BRAND |
Epistar chip from Taiwan |
Viewing Angle |
165-170° |
Luminous Flux(lm) |
70LM |
LED Qty |
2 pcs |
Life Span |
50,000 H |
Working Voltage |
DC12V |
Consumption |
0.72watt |
Driving Method |
constant current |
Stand Length In Serial Connection |
50pcs |
Maximum Length In Serial Connection |
≤50pcs |
Shell |
white ABS |
Dimension |
30*17*6.5 mm |
Available Color |
W/WW/CW |
Certification |
CE&ROHS |
Working Temperature |
-20℃ —— +60℃ |
Store Temperature |
-50℃ —— +60℃ |
IP Degree |
IP65 |
Features:
1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 35LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP65,
5. DC 12V low voltage input, constant current drive method, reliable and safe.
6. Adopt series-parallel connection circuit, 50pcs per string, each module could be singled out.
7. Viewing angle: 165-170°.
8. Three years warranty.

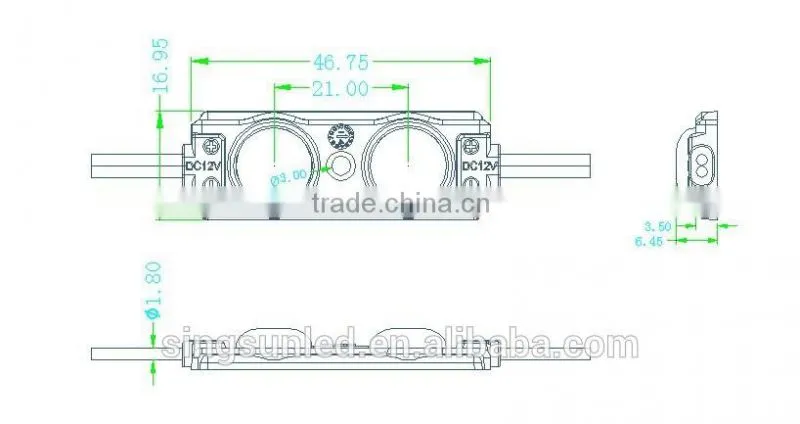

Dimesion Diagram(mm):
Application:
This product is applicable for 3-20cm glowing character, advertisement board, light box or local lighting.
50 pcs per string, 100pcs per bag, 5000 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 4.5 g/pc; 225 g/string; 24kg/carton.
2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 1000pcs.
Q3: What’s the lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer 3-5 years guarantee for the products.
Q6: Do you accept drop shipping
A: Yes, it is available.
Q7: What's the payment method you accept?
A: Singsun accept below two different payments.
1. T/T(Bank to bank payment)
2. Western Union
