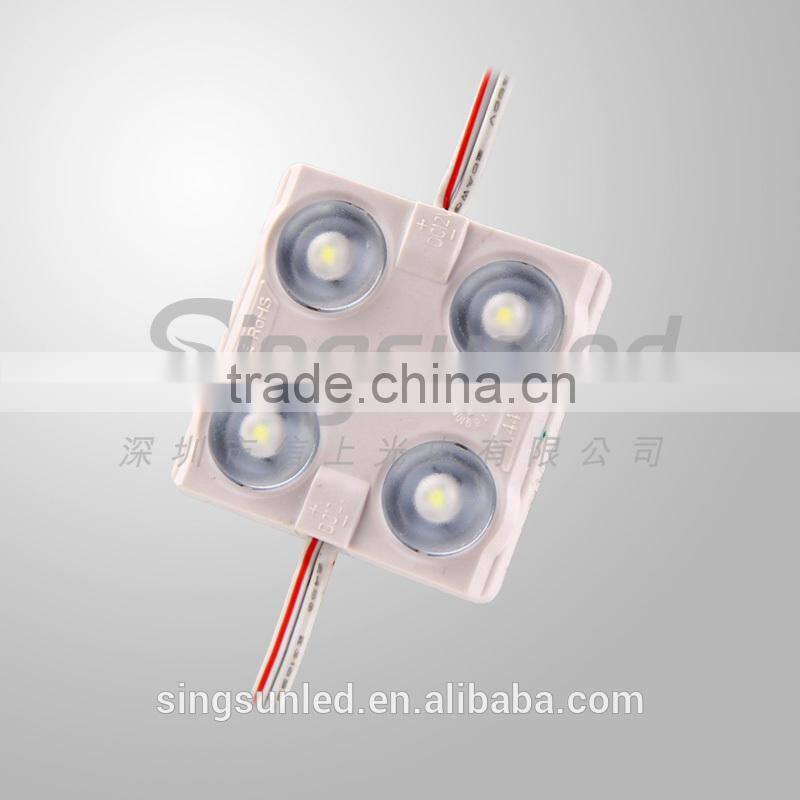

High power 2w 4 chips led module smd 2835 IP67 waterproof led module
LED Type |
2835 SMD LED |
LED BRAND |
Epistar chip from Taiwan |
Viewing Angle |
165-170° |
Luminous Flux(lm) |
180 LM |
LED Qty |
4 pcs |
Life Span |
50,000 H |
Working Voltage |
DC12V |
Consumption |
2W |
Driving Method |
constant current |
Stand Length In Serial Connection |
20pcs |
Maximum Length In Serial Connection |
≤20pcs |
Shell |
white ABS |
Dimension |
39*39*6.5 mm |
Available Color |
W/WW/CW |
Certification |
CE&ROHS |
Working Temperature |
-20℃ —— +60℃ |
Store Temperature |
-50℃ —— +60℃ |
IP Degree |
IP67 |

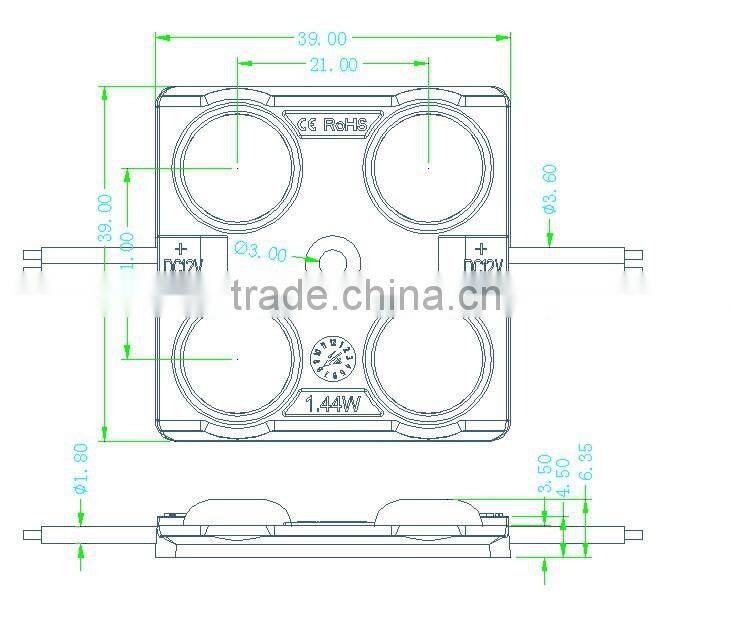

Dimension Diagram(mm):

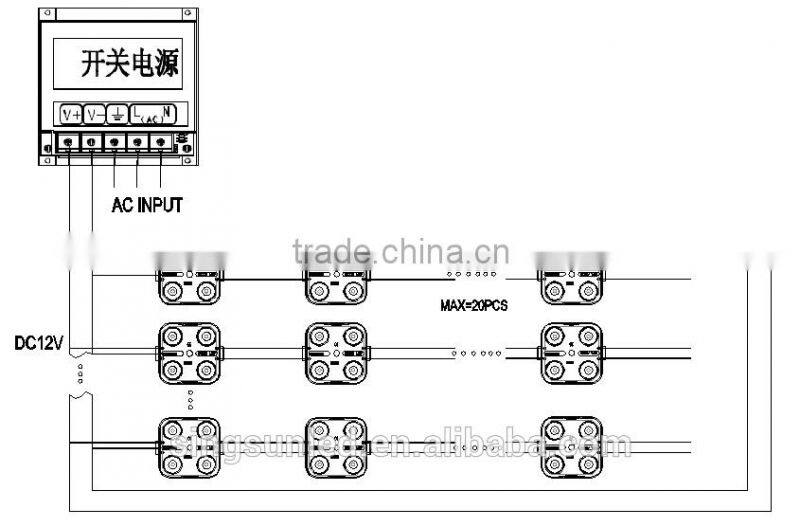

Connection Diagram:
Product Features:
1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 35-40LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.
4. IP Rate: IP65,
5. DC 12V low voltage input, constant current drive method, reliable and safe.
6. Adopt series-parallel connection circuit, 20pcs per string, each module could be singled out.
7. Viewing angle: 165-170°.
8. Warranty of 5 years

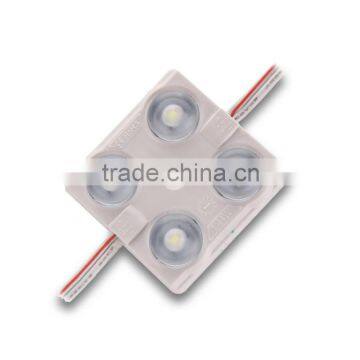

Product Show:

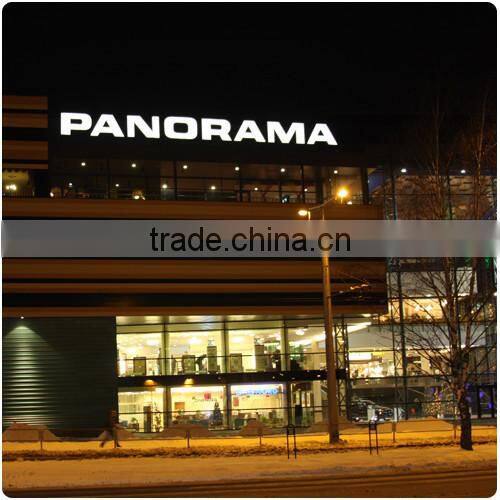

Applications:
1) Channel Letters Backlighting
2) Advertisement Signs Backlighting
3) Advertisement Light Boxes Backlighting
Every 20 pcs per a string, every 5 string in an anti-static bag, 2000 pcs per a carton box.
Carton size: 50*35*31.5 cm.
Net Weight: 12.5 g/pc; 250 g/string; 28kg/carton.
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.
3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014(Time: 23-26, September, 2014. Booth No: FC144) & 2014 Hong Kong International Lighting Fair Autumn Edition( Time: 27-30, October, 2014. Booth No: CR-A32)
2014 GZ&Shanghai International Lighting EXPO
Why choose us?
For all your inquires about us or our products, we will reply you in detail within 24 hours
We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
We are Alibaba assessed 2 years gold supplier.
We are a factory manufacturing LED modules and LED strips, best production capacity, best quantity control, best service.
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 5000pcs.
Q3: What’s the lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer 3-5 years guarantee for the products.
.
