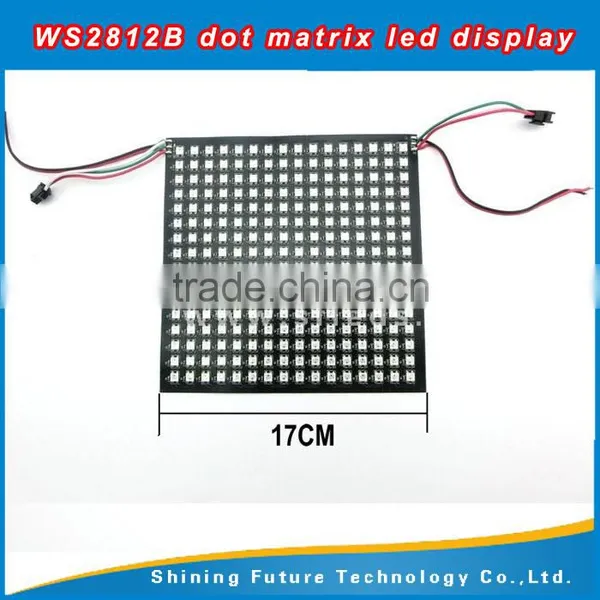

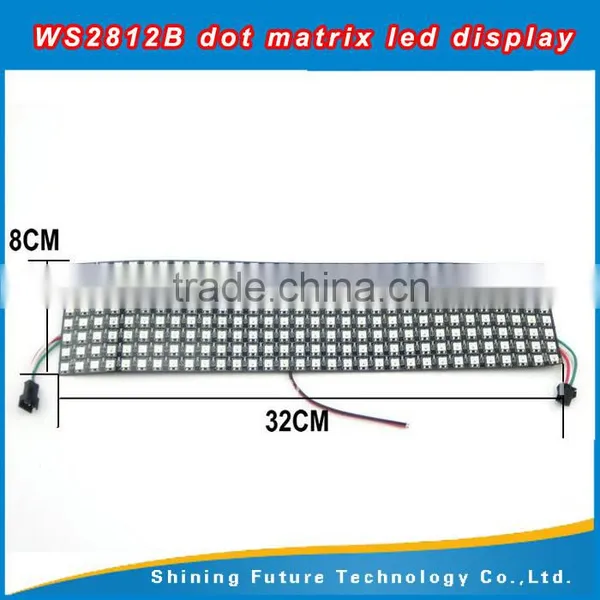

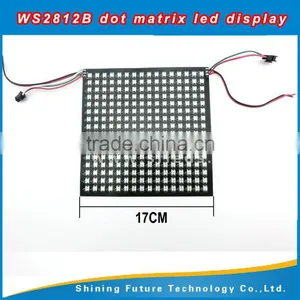

Flexible led digital rgb pixel for 8x32 Matrix panel
1. For WS2812B LED lovers, we now have a bendable, flexible 8x32 LED Matrix pannel ! Control all 256 ultra-bright LEDs using a single microcontroller pin, set each LED as you wish to scroll messages or draw little images. This matrix has a thick flexible PCB backing that can be gently bent and curved around surfaces.
2. This big pannel use the completely same WS2812B LED diode with the WS2812B LED pixel strip,so you can use this matrix just like any other WS2812B LED Pixel-compatible product .
3. Don't forget, with 256 LEDs, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don't think the flex PCB can handle that much current).
4. Try to keep the current draw at under 5A , each pcs matrix comes with one pair JST SM connector for signal sending and power inputting.
5. Flexible PCBs are not designed for repeated flexing! While we think this product may work in wearables or other situations where the matrix is bent around, we do not offer any guarantees or refunds if you end up cracking the LEDs or traces! This is for advanced users only, who already know how to use WS2812B Pixels and are comfortable with the high current requirements and protecting the matrix LED from damage.
Future
| Item No | SF-8x32 |
| Voltage | DC5V |
| Power Consumption | 76.8watt/pcs |
| LED Qty | 256LEDs/pcs |
| View Angle | 140 degree |
| Emitting Color | RGB Full Color |
| PCB Option | Black Color |
| PCB Size | 8*32cm |
| Weatherproof grade | IP20 |
| Working Temperature | -40-80°c |
| Warranty | 2 years |
| Certificates | CE , ROHs |
Connection way:
SPI signal: LED Strip+LED power supply +LED controller
DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder
LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...
(offline / PC online)
LED power suppply: Meanwell power supply, T- series, A- series power supply...
(waterproof / non-waterproof)
Trade Terms:
Payment: T/T ,Western Union or Paypal are welcomed
Production lead time for5000pcs:5-7days
Sample can be delivered in 3days
Shipping freight are quoted under your requests
Shipping port: Shenzhen, Mainland China
Discounts are offered based on order quantities
