Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Swiss Lathe Swiss Turning Machine

Swiss Lathe Swiss Turning Machine

Name: Swiss Lathe Swiss Turning Machine
Brand: SMARTECH
SKU: 123973891
Availability: InStock

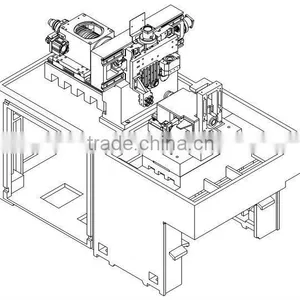

Swiss Lathe Swiss Turning Machine thumbnail-1

Swiss Lathe Swiss Turning Machine photo-1

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, swiss lathe

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, swiss lathe

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 20 mm

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number TNCB15F

Voltage 380V

Power(W) 6 Kw

Dimension(L*W*H) 1610*1000*1600 mm

Weight 1450 Kg

Specifications

1 supply both frame and complete machine;
2 competitive price;
3 high machining precision;
4 short delivery time;

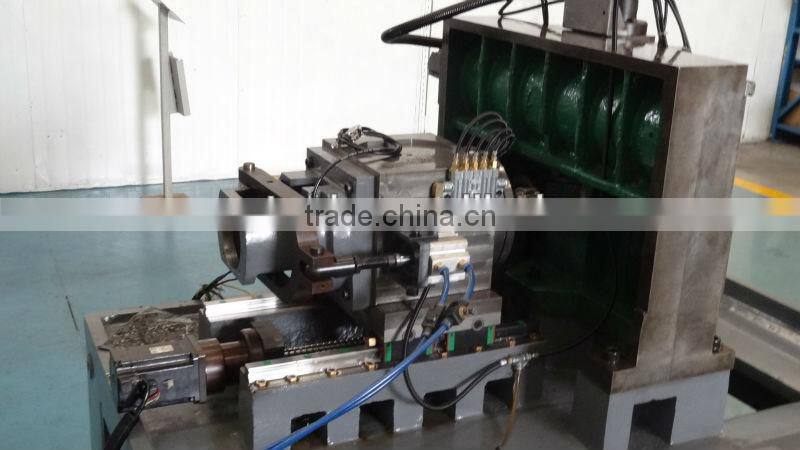

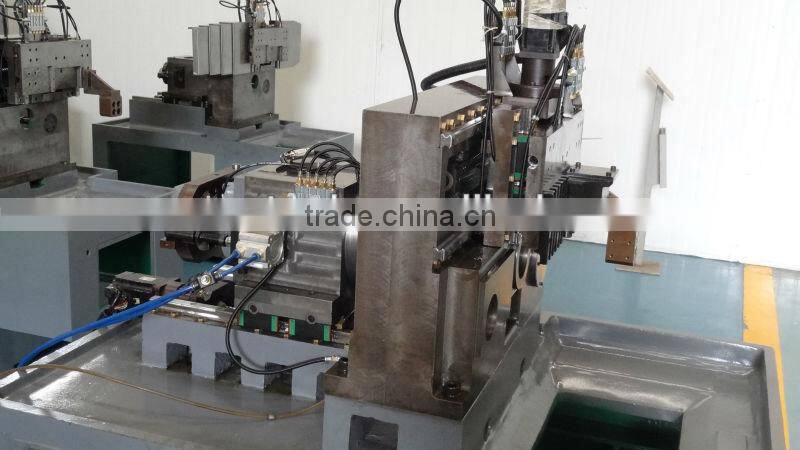

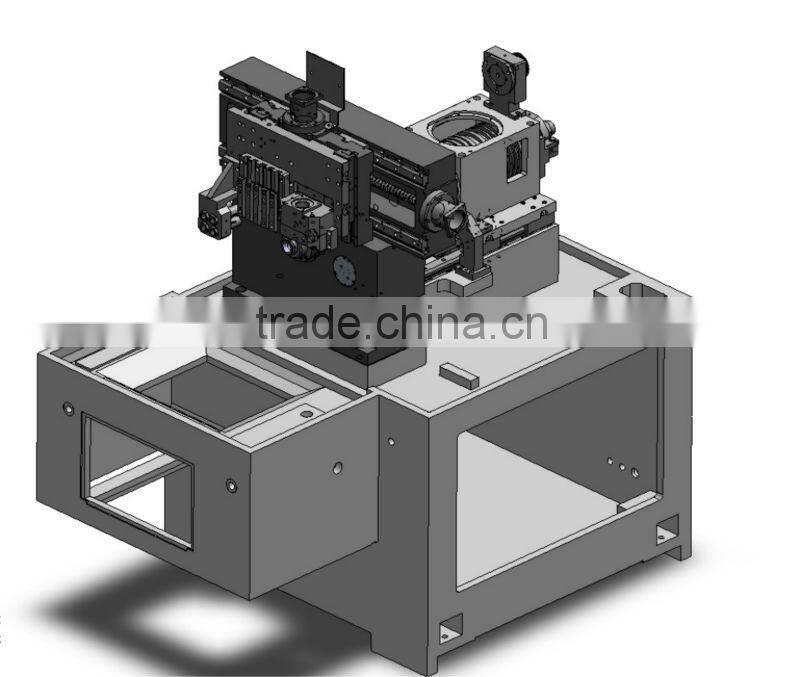

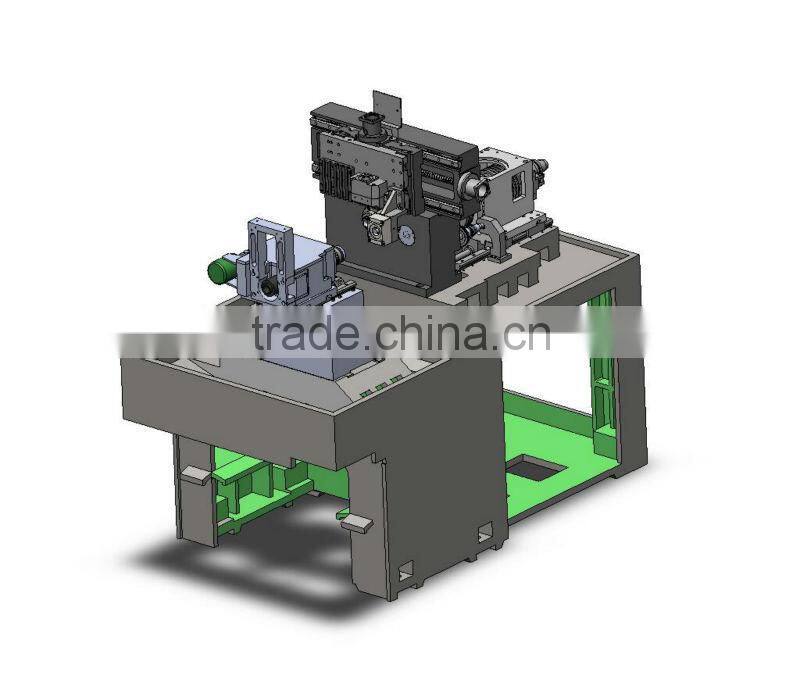

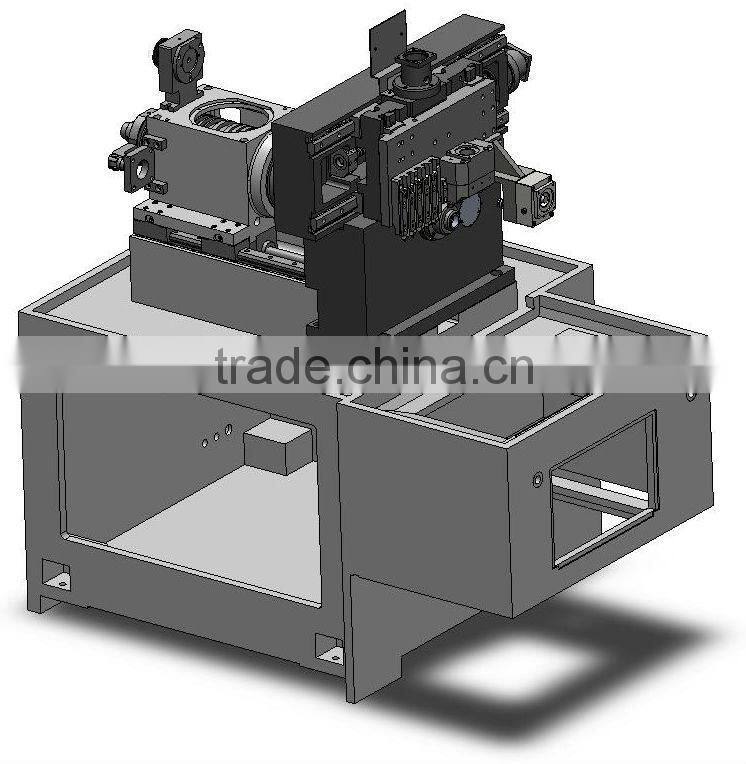

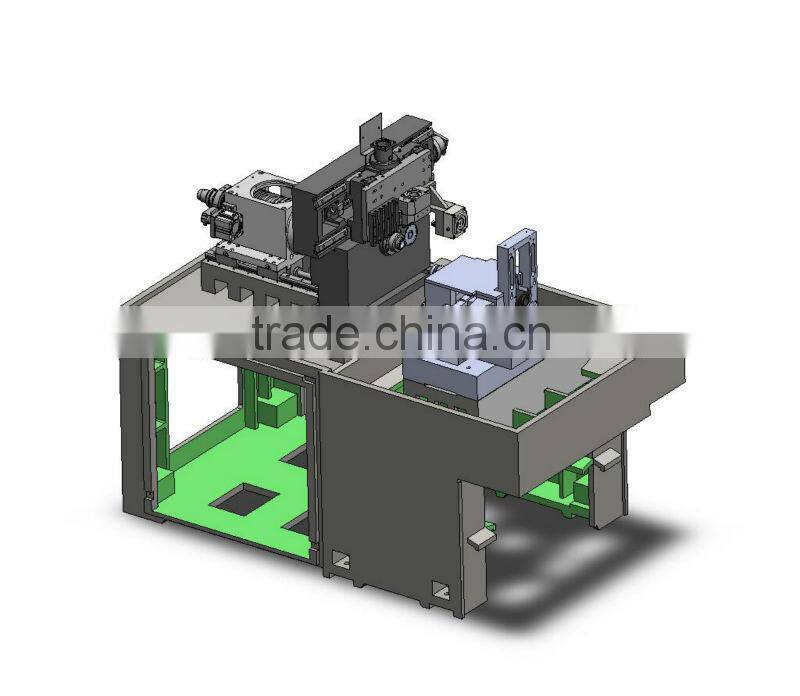

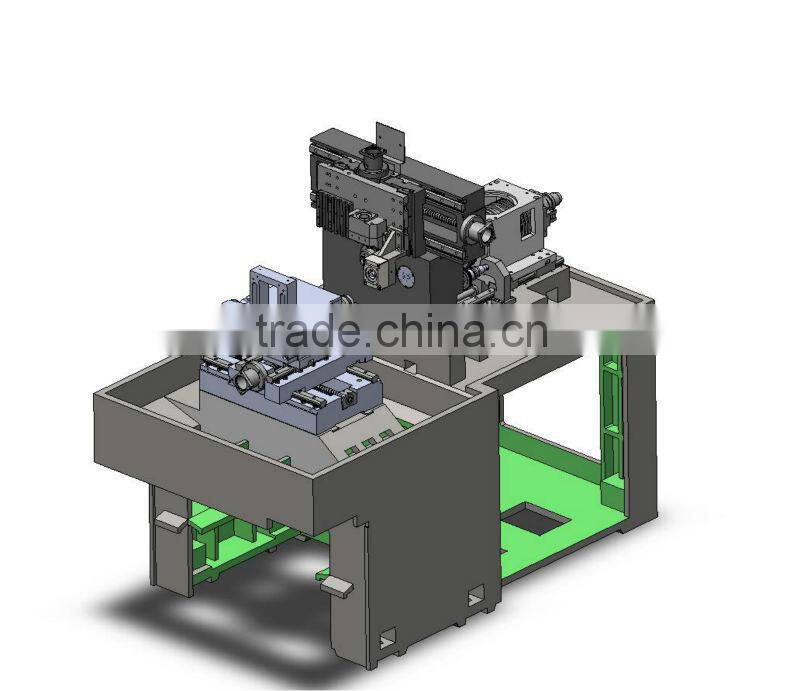

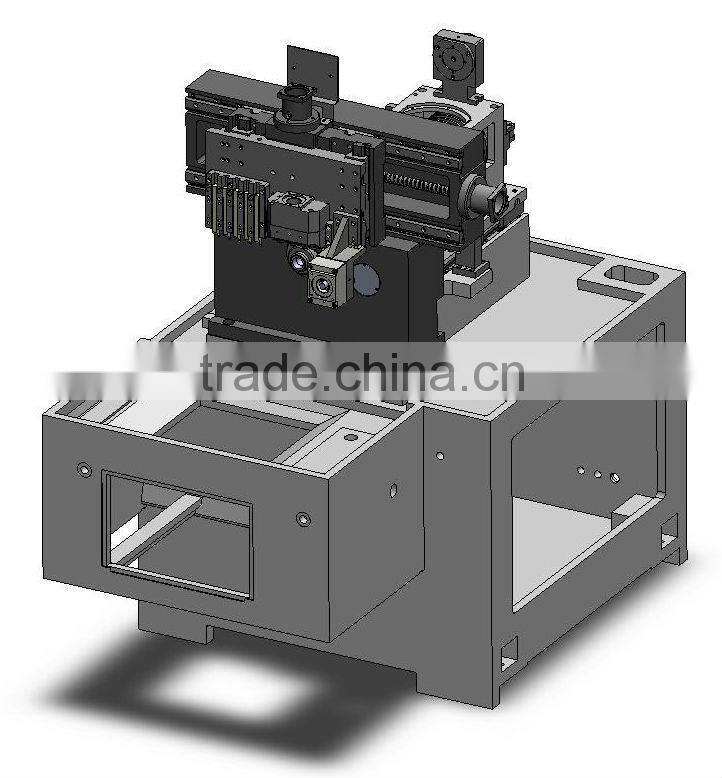

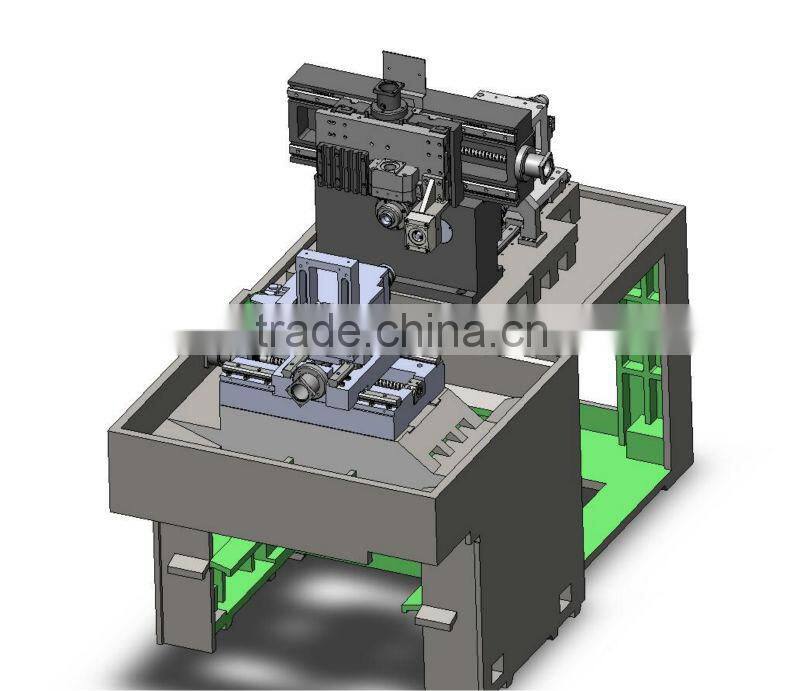

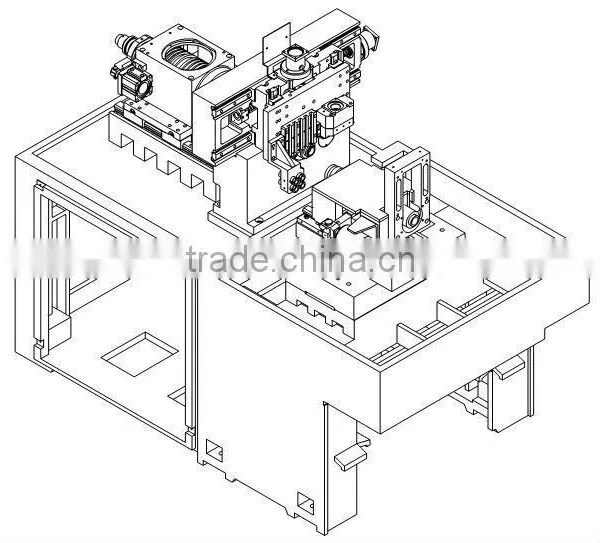

SMARTECH CNC LATHE FRAME

MACHINE FEATURE:

1 High-class casting processed by resin sand and wood mould;

2 Imported ball screw and linear guide;

3 Electronic one-piece spindle;

4 Pneumatic clamping collets;

5 Imported X/Y/Z couplings;

6 Centralized maintenance-free automatic lubrication system;

7 Painting: Customized color

8 Packing: antirust and moisture-proof package, fasten on wooden pallet,

OPTIONS OF FRAME:

1 Full guarding;

2 YASKAWA servo motors;

3 CNC control system: LNC or Syntec;

4 Coolant pump;

5 Bar feeder.

SPECS. OF COMPLETE MACHINE:

MODEL	B15F / B20F
Max bar stock diameter	Φ15 / Φ20
Max processing parts length	125 / 160
Max boreing diameter	Φ6 / Φ8
Max tapping	M6/ copper M8
Recommended total power	6Kw
Range of spindle speed	200-8000r/min 200-10000r/min
External turning tool	5 tools
Spec. of external turning tool	1010120
Axial fixed tool	4 tools
Radial power (rotary) tool	4 tools
Max diameter of radial power (rotary) tool	Φ7
Diameter of axial fixed tool	Φ2 ~ Φ10
Number of axes controlled	4 axes
Min mechanical resolution	0.001 / X1(0.0005)
Rotary speed of milling tool	50~5000 r/min

Cutting speed	1-6000 mm/min
Rapid feed rate X axis	20 m/min
Rapid feed rate Y1, Z1, X2, Z2 axis	30 m/min
X1, Y, Z2 axis servo motor rated torque	1.27 N.M
Z1, Z2 axis servo motor rated torque	2.39 N.M
Max. holding diameter of sub-spindle	15/20 mm
Center height of spindle	950
Power of spindle motor	3 Kw
Power of servo motor	0.4 Kw / 0.75 Kw
Power of milling (rotary) tool	0.4 Kw
Power of coolant pump	0.25 Kw
Power of lubrication motor	25 W
Total power	14 KVA
Pneumatic pressure	0.45 Mpa
Pneumatic flow	40 L
Volumn of oil	60 L
Recommended milling unit head speed	50-5000(servo)
Dimension (LxWxH)	1610x1000x1600
Net Weight	1450 kg
