Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Machine Body VMC1890

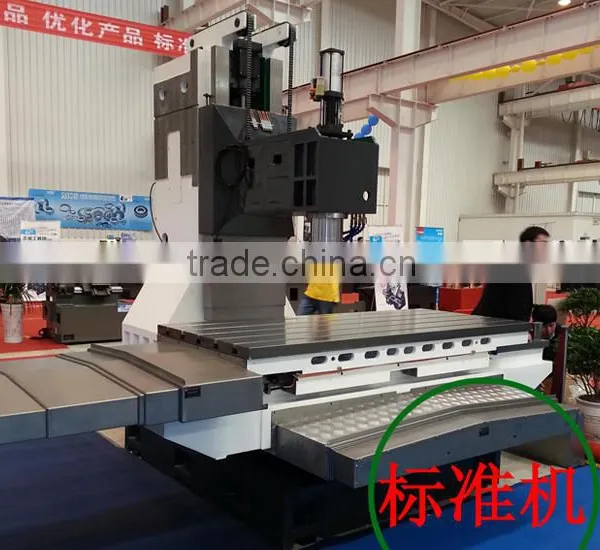

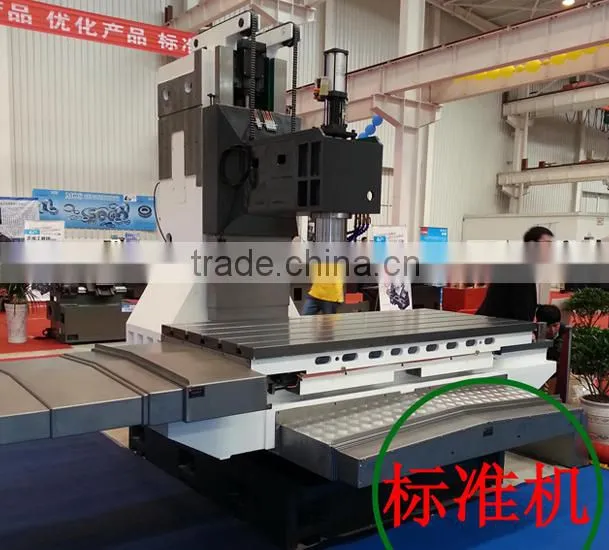

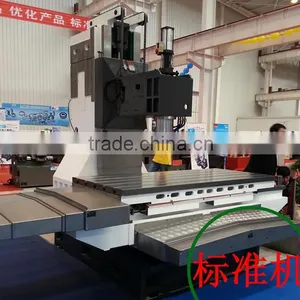

CNC Machine Body VMC1890

Name: CNC Machine Body VMC1890
Brand: SMARTECH
SKU: 123972647
Availability: InStock

US$ 40,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Yunnan, China

Brand Name:

SMARTECH

Contact Supplier Request Quote Chat Now

Smartech Machinery & Equipment Co., Ltd.(Shenzhen)

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN CHINA;

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Yunnan, China

Brand Name SMARTECH

Model Number VMC1890

Type Vertical

CNC or Not CNC

Voltage 380V

Power(W) 15-18.5 kw (customized)

Dimension(L*W*H) 2800*3100*3300 mm

Weight 11000 kg

Certification ISO

Warranty one year

After-sales Service Provided Overseas third-party support available

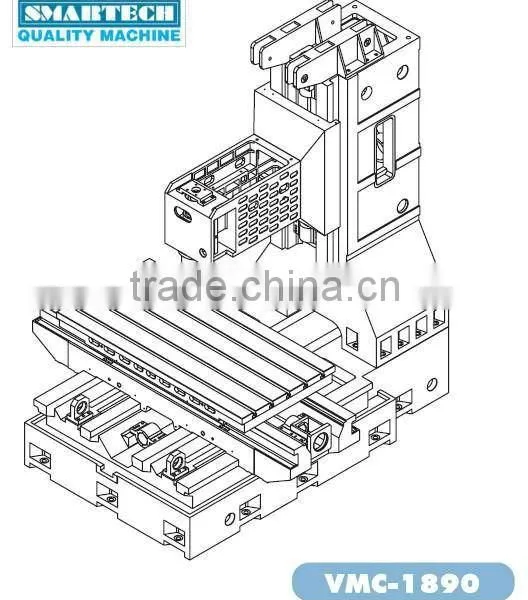

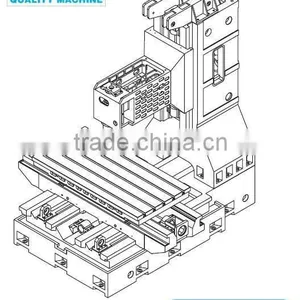

SMARTECH CNC VMC FRAME VMC-1890

MACHINE FEATURE:

1 High-class casting by resin sand and wood mould;

2 Top class imported ball screws sets and bearing ;

3 Imported spindle & tool clamping system ;

4 Imported drive connectors ;

5 Stainless steel telescopic protection on X/Y/Z axis ;

6 Central lubrication system ;

7 Coolant system ;

8 Harden&ground on all slideways and Turcite-B coated with precise scraping;

OPTIONAL:

1 Spindle from Taiwan;

2 Direct drive structure for main motor with spindle ;

3 Central oil coolant for the spindle ;

4 Coolant through spindle ;

5 ATC: drum type, arm type or chain type ;

6 Outside guarding: standard or special made according to clients design

7 Chip conveyor

8 CNC pre-installed for clients: whole full ready package delivery according to clients design

SPECS:

MODEL	VMC-1890
Table Size	900 x 2000
Travel X	1800
Y	900
Z	680
Spindle to Column Slideway	950
Spindle Nose to Table Surface	160-840
T-Slot(No-size/distance)	5-22/165
Spindle Taper/outside dia	BT50/190
Spindle Speed	8000rpm
X,Y axis Ball Screw Spec.	55/08
Z axis Ball Screw Spec.	55/08
X,Y & Z Motor Connection	Direct drive
Main motors recommended	15-18.5kw
Drive motors recommended X/Y/Z	26/30/30Nm
Table Work Load	1600 Kg
Net Weight	10500kg
