Home > Products > CNC Machine Frame > CNC machine frame;VMC650L

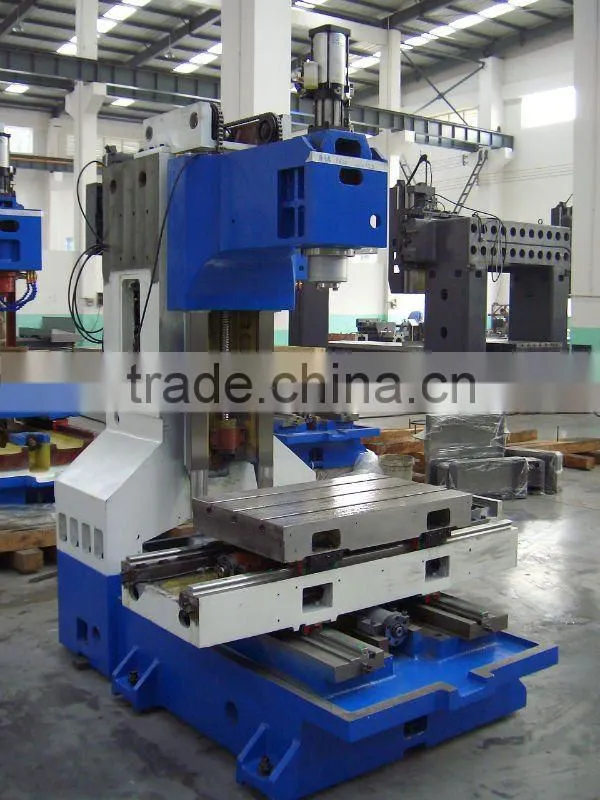

CNC machine frame;VMC650L
- 100 Set / Sets per Month
- SHENZHEN CHINA;
- T/T
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Place of Origin: | Yunnan, China | Brand Name: | SMARTECH |
Model Number: | VMC650L | Type: | Vertical | CNC or Not: | CNC |
Product Description
Specifications
1 high-class quality;2 competitive price;
3 high machining precision;
4 short delivery time;

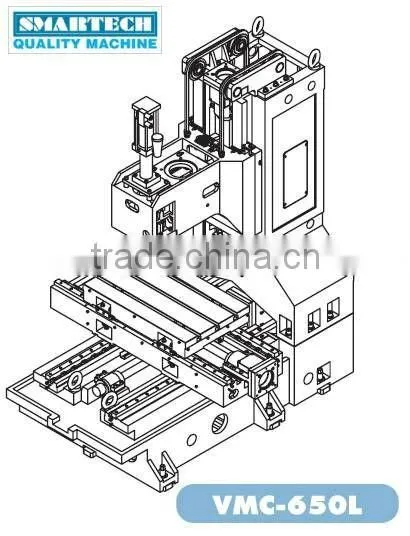

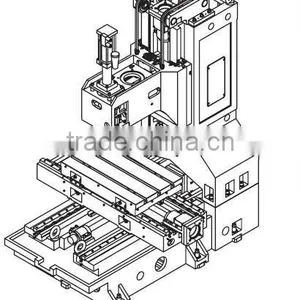

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 X&Y axes Linear slideways and Z axis box way type;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL | VMC-650L |
Table Size | 500 x 800 |
Travel X | 600 |
Y | 500 |
Z | 500 |
Spindle to Column Slideway | 560 |
Spindle Nose to Table Surface | 110-610 |
T-Slot(No-size/distance) | 3-18/144 |
Spindle Taper/outside dia | BT40/130 |
Spindle Speed | 8000rpm |
X,Y axis Ball Screw Spec. | 40/12 |
Z axis Ball Screw Spec. | 40/12 |
X,Y & Z Motor Connection | Direct drive |
Main motors recommended | 5.5kw |
Drive motors recommended X/Y/Z | 8/10/10Nm |
Table Work Load | 350 Kg |
Net Weight | 4500kg |
