Help CenterVertical Machining Center VMC1890B
Related Products

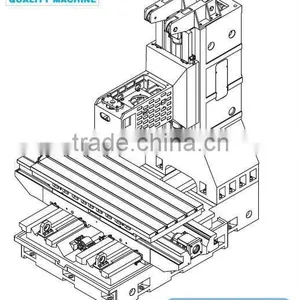

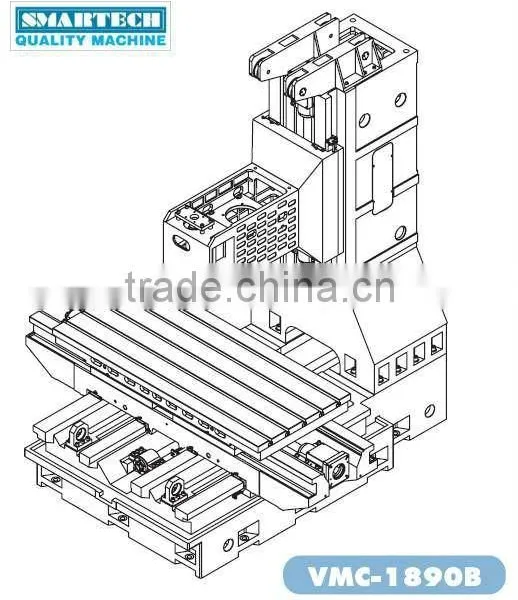

SMARTECH CNC VMC FRAME
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors ;
5 Stainless steel telescopic protection on X/Y/Z axis ;
6 Central lubrication system ;
7 Coolant system ;
8 Harden&ground on all slideways and Turcite-B coated with precise scraping;
- OPTIONAL:
1 Spindle from Taiwan;
2 Direct drive structure for main motor with spindle ;
3 Central oil coolant for the spindle ;
4 Coolant through spindle ;
5 ATC: drum type, arm type or chain type ;
6 Outside guarding: standard or special made according to clients design
7 Chip conveyor
8 CNC pre-installed for clients: whole full ready package delivery according to clients design
- SPECS:
MODEL |
VMC-1890B |
Table Size |
900 x 2000 |
Travel X |
1800 |
Y |
900 |
Z |
800 |
Spindle to Column Slideway |
950 |
Spindle Nose to Table Surface |
160-960 |
T-Slot(No-size/distance) |
5-22/165 |
Spindle Taper/outside dia |
BT50/190 |
Spindle Speed |
8000rpm |
X,Y axis Ball Screw Spec. |
55/08 |
Z axis Ball Screw Spec. |
55/08 |
X,Y & Z Motor Connection |
Direct drive |
Main motors recommended |
15-18.5kw |
Drive motors recommended X/Y/Z |
26/30/30Nm |
Table Work Load |
1600 Kg |
Net Weight |
11000kg |
*Also provide linear-type slide ways.
Machining Equipments Imported from Nicolas Correa Spain
A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
ISO Certificate
