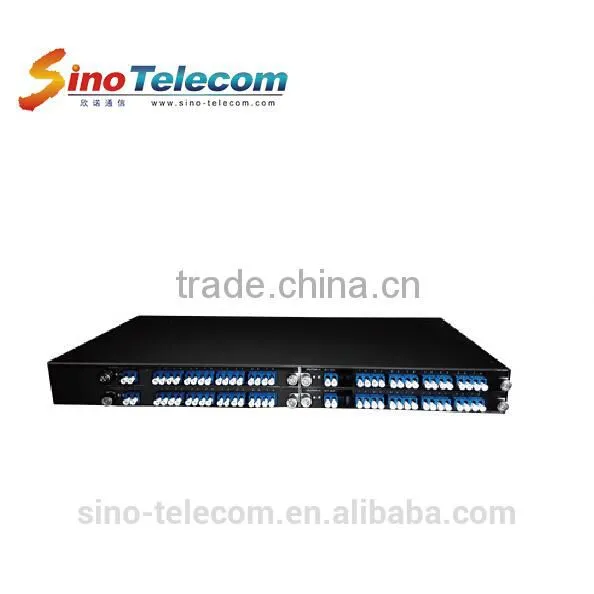

Sino-Telecom 1x 2/3/4/8 Channel Optical Splitter Service Board

Name: Sino-Telecom 1x 2/3/4/8 Channel Optical Splitter Service Board
Brand: Sino-Telecom
SKU: 123957375

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Sino-Telecom

Model Number:

OEO6500-OTAP

Shanghai Sino-Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name Sino-Telecom

Model Number OEO6500-OTAP

Operating Environment

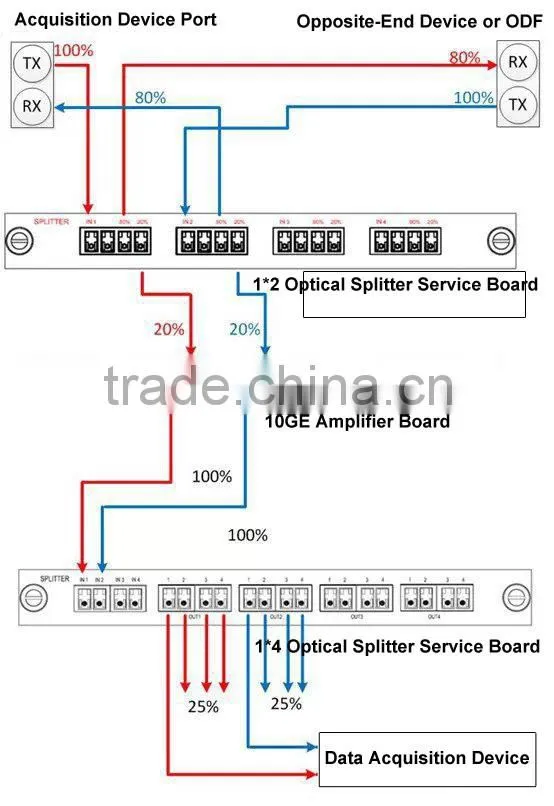

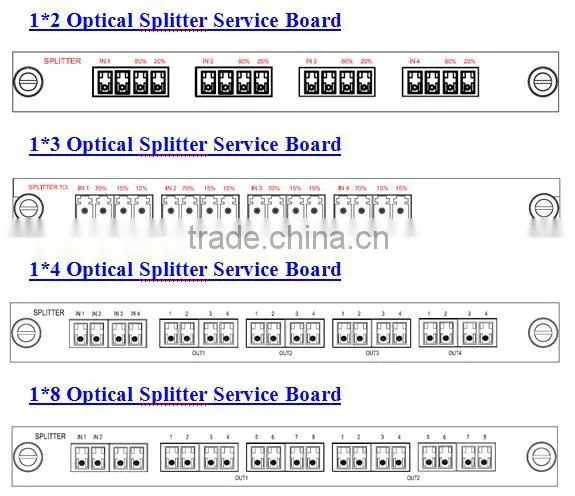

1*2 optical splitter service board provides 16 LC/UPC optical interfaces and supports a
maximum of 4 1*2 splitters;
1*3 optical splitter service board provides 16 LC/UPC optical interfaces and supports a
maximum of 4 1*3 splitters;
1*4 optical splitter service board provides 20 LC/UPC optical interfaces and supports a
maximum of 4 1*4 splitters;
1*8 optical splitter service board provides 20 LC/UPC optical interfaces and supports a
maximum of 2 1*8 splitters.

Performance Specifications of 1*2 Single Mode FBT Splitter:

Model		ST-12-SM-28	ST-12-SM-37	ST-12-SM-46	ST-12-SM-55
Operating Wavelength (nm)		1310, 1550 or others
Insertion Loss (dB)	Typical Value	7.5/1.2	5.7/1.9	4.4/2.6	3.4
Insertion Loss (dB)	Maximum Value	8.0/1.4	6.0/2.0	4.7/2.8	3.6
Polarization Dependent Loss (dB)	Typical Value	0.1	0.1	0.1	0.1
Polarization Dependent Loss (dB)	Maximum Value	0.15	0.15	0.15	0.15
Directivity (dB)	Minimum Vaue	55	55	55	55
Splitting Ratio (%)		20/80	30/70	40/60	50/50

Performance Specifications of 1*2 Multimode FBT Splitter:

Model		ST-12-MM-28	ST-12-MM-37	ST-12-MM-46	ST-12-MM-55
Operating Wavelength (nm)		850
Insertion Loss(dB)	Typical Value	8.7/2.1	6.7/2.7	5.4/3.5	4.3
Insertion Loss(dB)	Maximum Value	9.0/2.4	7.0/3.0	5.7/3.8	4.6
Polarization Dependent Loss (dB)	Typical Value	0.1	0.1	0.1	0.1
Polarization Dependent Loss (dB)	Maximum Value	0.15	0.15	0.15	0.15
Splitting Ratio(%)		20/80	30/70	40/60	50/50

Performance Specifications of 1*4 & 1*8 Single Mode PLC Splitter:

Model		ST-14-PLC-55	ST-18-PLC-55
Operating Wavelength (nm)		1260~1650
Insertion Loss (dB)	Typical Value	7	10
Insertion Loss (dB)	Maximum Value	7.4	10.5
Loss Uniformity (dB)	Typical Value	0.4	0.5
Loss Uniformity (dB)	Maximum Value	0.6	0.8
Return Loss (dB)		55/50	55/50
Polarization Dependent Loss (dB)	Typical Value	0.1	0.1
Polarization Dependent Loss (dB)	Maximum Value	0.2	0.2
Directivity (dB)	Minimum Value	55	55

Performance Specifications of 1*16 & 1*32 Single Mode PLC Splitter:

Model		ST-14-PLC-55	ST-18-PLC-55
Operating Wavelength (nm)		1260~1650
Insertion Loss (dB)	Typical Value	13	16
Insertion Loss (dB)	Maximum Value	13.5	16.5
Loss Uniformity (dB)	Typical Value	0.6	0.7
Loss Uniformity (dB)	Maximum Value	0.8	0.9
Return Loss (dB)		55/50	55/50
Polarization Dependent Loss (dB)	Typical Value	0.1	0.1
Polarization Dependent Loss (dB)	Maximum Value	0.2	0.2
Directivity (dB)	Minimum Value	55	55
