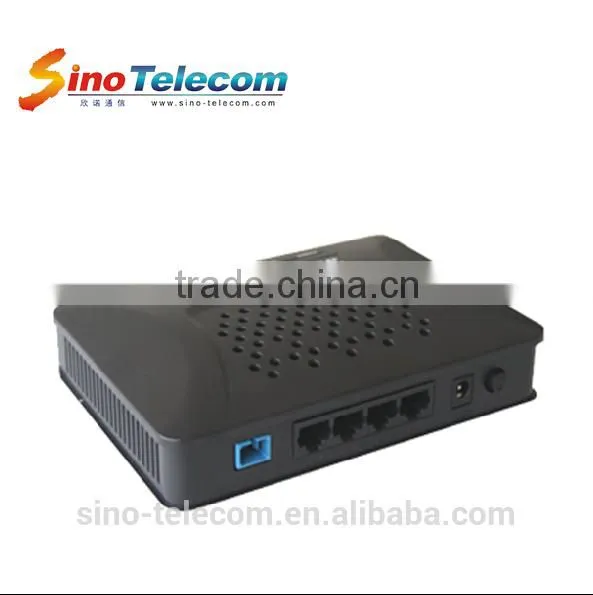

Sino-Telecom Optical Network Unit for FTTH, 4* 10/100Mbps EPON ONU
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sino-Telecom
Model Number:
ONU304
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPONNegotiableMOQ: 1 Unit -
Sino-Telecom EPON Potocol Analyzer XPA2000-EPONNegotiableMOQ: 1 Unit
-
Sino-Telecom High Capacity FTTH Solution WDM PON SystemNegotiableMOQ: 1 Unit
-
Sino-Telecom EPON Extender / Amplifier EA3302NegotiableMOQ: 1 Unit
-
Sino-Telecom PON+CATV OEO Repeater GPON AmplifierNegotiableMOQ: 10 Units
Place of Origin
Shanghai, China
Brand Name
Sino-Telecom
Model Number
ONU304
Introductions
ONU304 is an EPON broadband terminal device designed for fulfilling FTTH request of telecom operators, internet access of SOHO people and renovation request of EPON+EOC infrastructure of Broadcast & TV companies. This product is basing on the stable and mature Gigabit EPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. And it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1) from China Telecom.
Special features
- Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
- Integrated OAM remote configuration and maintenance function.
- Support rich QinQ VLAN function and IGMP Snooping multicast feature.
- Functions like transceiver diagnostic monitoring, transmitter disable, etc.
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Functions
- Full speed non-blocking switching.
- 1K MAC address table.
- 64 full range VLAN ID.
- Integrated QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
- Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
- Support auto polarity detection of Ethernet ports (AUTO MDIX).
- Support IEEE802.1p QoS with four level priority queues.
- Support IPv4 IGMP snooping and IPv6 MLD snooping.
Technical parameters
| Technical items | Description |
| Upstream PON interface | 1 EPON interface, SC single-mode/single-fibre, symmetric 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC connector |
| Downstream LAN interface | 4 10/100Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
| Indicators | 6 indicators, for status of power supply, PON port and 4 ethernet ports. |
| DC power supply | +12V, external AC-DC power adaptor |
| Power switch | 1 |
| Power consumption | ≤5W |
| Operating condition | Operating temp: -25 - +55℃, operating humidity:10-90%(non-condensed) |
| Storing condition | Storing temp: -30 - +60℃, storing humidity:10-90%(non-condensed) |
| Dimension | 160mm*115mm*32mm(length*width*height) |
| Net weight | 0.25Kg |

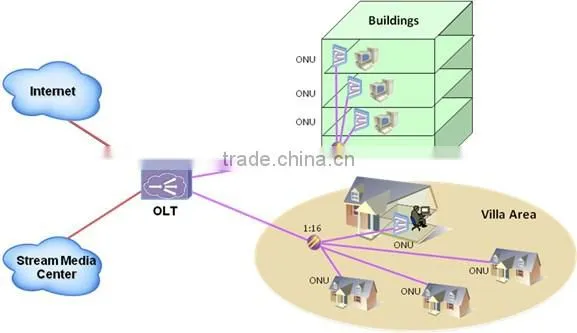

Application chart
