Sino-Telecom EPON Potocol Analyzer XPA2000-EPON

Name: Sino-Telecom EPON Potocol Analyzer XPA2000-EPON
Brand: Sino Telecom
SKU: 123957453

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON thumbnail-1

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON thumbnail-2

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON thumbnail-3

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON photo-1

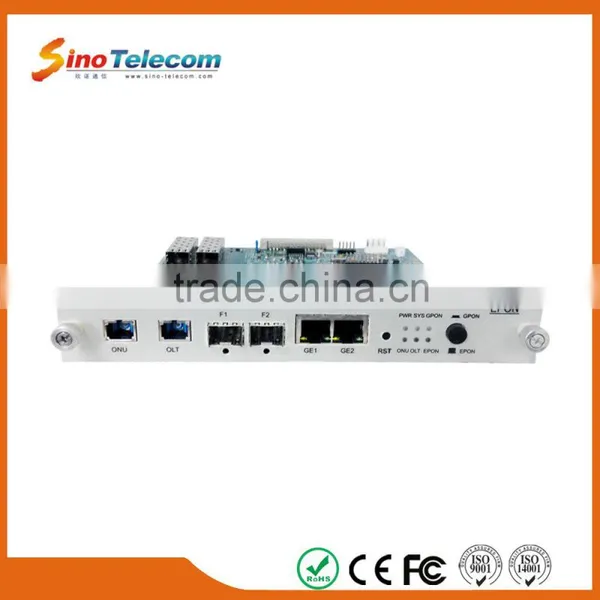

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON photo-2

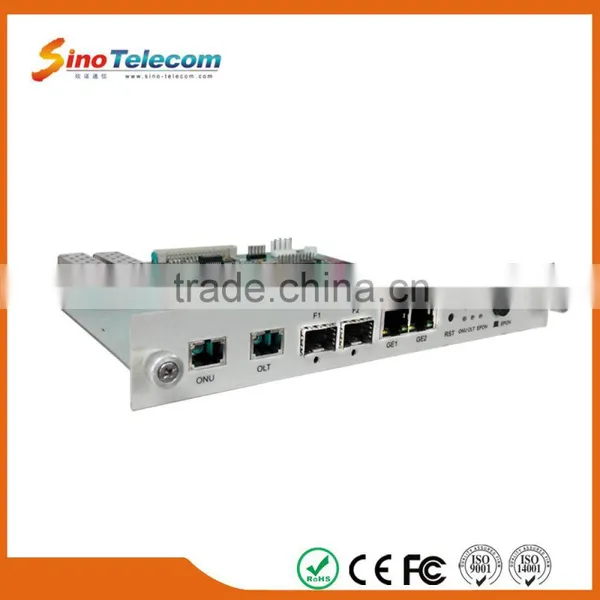

Sino-Telecom EPON Potocol Analyzer XPA2000-EPON photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Sino Telecom

Model Number:

XPA2000-EPON

Contact Supplier Request Quote Chat Now

Shanghai Sino-Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Sino Telecom

Model Number XPA2000-EPON

Product Description

Overview

XPA2000-EPON is an EPON protocol analyzer equipment developed by using Sino-Telecom’s independent intellectual property rights. It can work under cascade connection mode or parallel connection mode, which provides abundant testing functions of EPON link layer protocols. It can not only test MPCP and standard OAM protocols, but also support China Telecom CTC V3.0 extended OAM standards. Moreover, it allows wire-speed support of thriple disturbance decryption. It can be widely used for the interoperability test of operators’ EPON network as well as protocol analysis of EPON link.

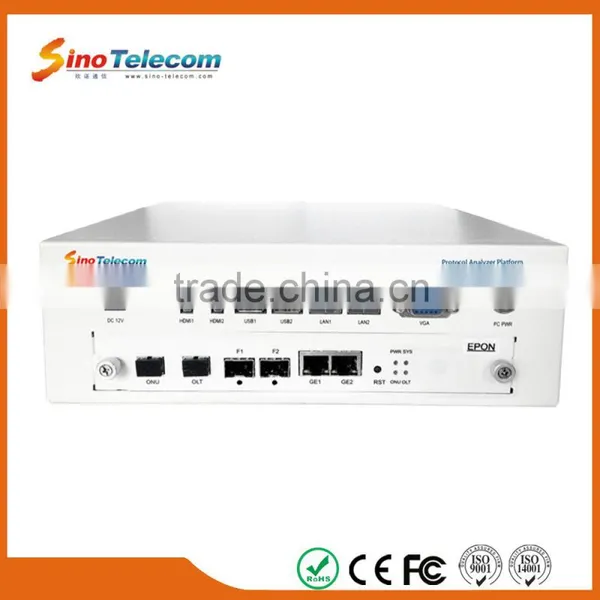

XPA2000-EPON is with good appearance and compact structure, which is easy to carry. It can not only be applied for laboratory tests, but also for EPON engineering construction site.

The launch of XPA2000-EPON breaks the monopoly of foreign manufacturers on high-end FTTH protocol analyzers. Compared with similar products in the international market, the targeted improvements make XPA2000-EPON more suitable for domestic EPON network environment. XPA2000-EPON can be widely used in the EPON OLT/ONU interoperability testing and the fault location of EPON link for domestic telecom operators and system equipment manufacturers

Features

Category	Item	Description

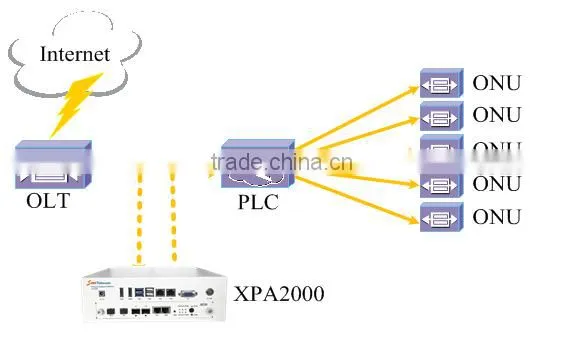

Packet Capture	Bidirectional Packet Capture	It supports the packet capture in the two directions of EPON link. For the external interface, 2*N splitter can be used to connect to the network; or connect to the network in cascade mode. (EPA2000C cannot support cascade mode)
	Packet Filtering	It supports LLID/MAC-based capture of specified message.
	Time Stamp	Time stamp by FPGA for bidirectional receiving of packets.
	Bidirectional Merge	The packets captured in the two directions are saved according to the time order.
	Storage Space	It supports a storage space of 8G Byte.
Analysis	Decryption	It supports the decryption of the captured encrypted frame. (It does not support the decryption of EPA2000C.)
	MPCP Analysis	It supports the analysis on MPCP frame defined in 802.3ah standards.
	Standard OAM Analysis	It supports the analysis on OAM frame defined in 802.3ah standards.
	CTC Extended OAM Analysis	It supports the analysis on extended OAM frame defined in CTC V3.0 standards.
	Other Second Layer and Higher Layer Protocol Analysis	It supports the analysis on other second layer/third layer or other higher layer protocols.
Display	In Time Stamp Order
	Distinguish the Packets in Different Directions	The uplink and downlink frames can be distinguished by the different colors.
	Display of Filter
	The Protocols are displayed according to the fields.
Save	Save the Original Decryption Data	To save the decrypted original messages.
Save	Save the Data According to the Filter Result

Hardware Specification

Hardware Specification		Built-in X86
Chassis	Dimensions: 27224064 mm Net Weight: 2.5Kg	Mainboard	3.5” industrial mainboard with low power consumption, RPGA988 CPU socket, which supports Intel i3-i5-i7.
Power Supply	Input: DC12V/5A; Actual power consumption<48W	Chipset	HM6 Chipset
Optical Interface	1OLT Interface 1ONU Interface	CPU	Core i5,dual core four threads
Display Interface	VGA or Remote Desktop	Frequency	2.7G Hz
USB	2*USB, which can be connected with keyboard/mouse	Memory	8GB DDR3
Management Interface	1*RJ45	Hard Disk	128GB SSD
