Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON

Name: Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON
Brand: Sino Telecom
SKU: 123957435

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON thumbnail-1

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON thumbnail-2

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON thumbnail-3

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON photo-1

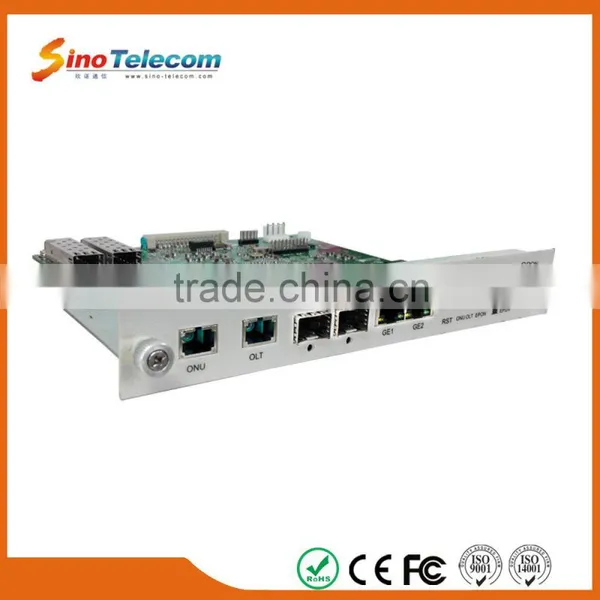

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON photo-2

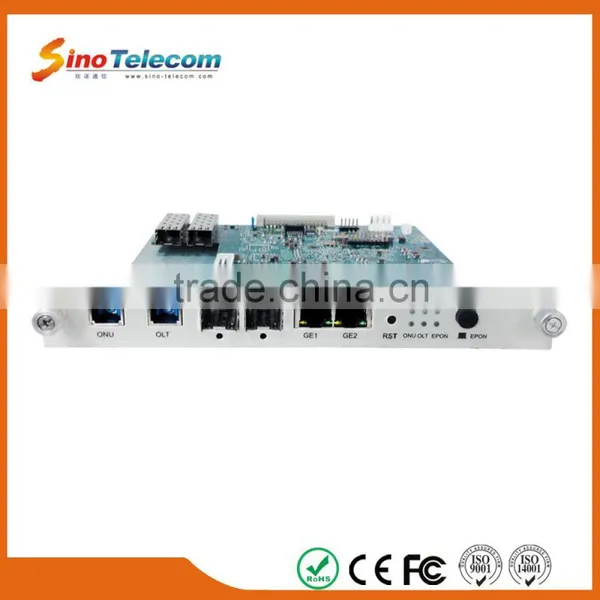

Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPON photo-3

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Sino Telecom

Model Number:

XPA2000-GPON

Contact Supplier Request Quote Chat Now

Shanghai Sino-Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Sino Telecom

Model Number XPA2000-GPON

Product Description

Overview

XPA2000-GPON is a portable FPGA-based multi-functional GPON protocol analyzer developed by using Sino-Telecom’s independent intellectual property rights. The launch of XPA2000-GPON breaks the monopoly of foreign manufacturers on high-end FTTH protocol analyzers. Compared with similar products in the international market, the targeted improvements make XPA2000-GPON more suitable for domestic GPON network environment. XPA2000-GPON can be widely used in the GPON OLT/ONU interoperability testing and the fault location of GPON link for domestic telecom operators and system equipment manufacturers.

Compared with the existing GPON protocol analyzer in the market, here are the advantages:

XPA2000-GPON is compatible with IEEE802.3ah, ITU-T G.984.X and ITU-T G.988 protocol standards;
XPA2000-GPON supports the analysis on PCBd PLOu BWMap DBRu PLOAM and OMCI protocols;
XPA2000-GPON supports GPON link wire-speed decryption function and can work under the condition that GPON link is encrypted;
XPA2000-GPON supports both cascade and parallel connection modes;
XPA2000-GPON supports dynamic display of bandwidth direction;
XPA2000-GPON is with good appearance and compact structure, which is easy to carry. It can not only be used in laboratory testing, but also in GPON engineering construction site.

Features

Category	Item	Description
Packet Capture	Bidirectional Packet Capture	It supports the packet capture in the two directions of GPON link. For the external interface, 2*N splitter can be used to connect to the network, or connect to the network in cascade mode.
	Packet Filtering	It supports OMCI/Service-based filtering of specified message.
	Time Stamp	Time stamp by FPGA for bidirectional receiving of packets
	Bidirectional Merge	The packets captured in the two directions are saved according to the time order.
	Long-time Packet Capture	If there is enough hard disk space, infinite time is given for packet capture.
Analysis	Decryption	It supports the decryption of the captured encrypted frame.
	OMCI Protocol Analysis	It supports the analysis on OMCI frame defined in ITU-T G.998 standards.
	PCBd BWMap PLOu DBRu and PLOAM Analysis	It supports the analysis on PCBd BWMap PLOu DBRu and PLOAM frames overhead defined in ITU-TG.984.X standards.
	Other Second Layer and Higher Second Layer Protocol Analysis	It supports the analysis on other second layer/third layer or other higher layer protocols.
Display	In Time Stamp Order
	Distinguish the Packets in Different Directions	Uplink and downlink are respectively identified as “up” and “down”.
	Filter Display	7 filter buttons are provided. Filter can be also configured according to user’s demand.
	The Protocols are displayed according to the Fields.
	ONU Topological Graph Display	The detailed information about every ONU is displayed in a treelike structure.
	Dynamic Bandwidth Trend Chart Display	The dynamic bandwidth trend chart corresponding to TCONT can be displayed, which facilitates the analysis.
Save	Save the Original Decryption Data	To save the decrypted original message.
Save	Save the ONU Topological Graph	It can save the ONU topological graph in text format.

Hardware Specification

Hardware Specification		Built-in X86
Chassis	Dimensions: 27224064 mm Net Weight: 2.5Kg	Mainboard	3.5” industrial mainboard with low power consumption, RPGA988 CPU socket, which supports Intel i3-i5-i7.
Power Supply	Input: DC12V/5A; Actual power consumption<48W	Chipset	HM6 Chipset
Optical Interface	1OLT Interface 1ONU Interface	CPU	Core i5,dual core four threads
Display Interface	VGA or Remote Desktop	Frequency	2.7G Hz
USB	2*USB, which can be connected with keyboard/mouse	Memory	8GB DDR3
Management Interface	1*RJ45	Hard Disk	128GB SSD
