Sino-Telecom Long Distance EPON Signal Amplifier Repeater, 1:64
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sino-Telecom
Model Number:
EA3302
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sino-Telecom 1x 2/3/4/8 Channel Optical Splitter Service BoardNegotiableMOQ: 1 Piece -
Sino-Telecom Optical Network Unit for FTTH/FTTO, 4* 10/100Mbps EPON ONUNegotiableMOQ: 1 Piece
-
Sino-Telecom Optical Network Unit for FTTx, 4* 10/100Mbps EPON ONUNegotiableMOQ: 1 Piece
-
Sino-Telecom Optical Network Unit for FTTH, 4* 10/100Mbps EPON ONUNegotiableMOQ: 1 Piece
-
Sino-TelecomSino-Telecom GPON Potocol Analyzer XPA2000-GPONNegotiableMOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Sino-Telecom
Model Number
EA3302
Overview

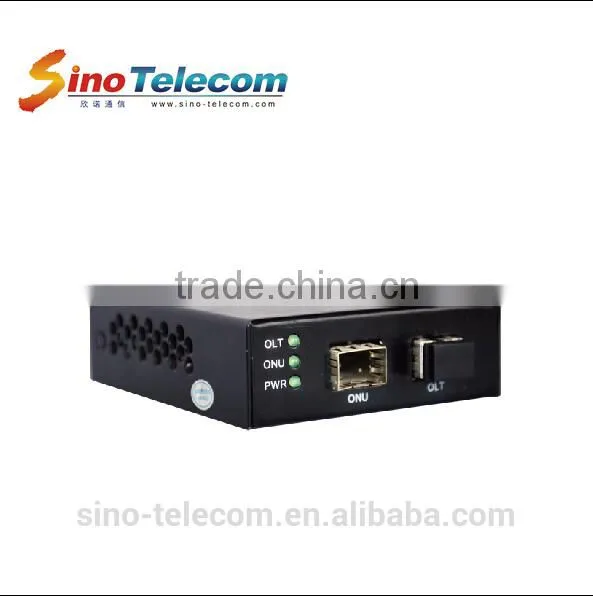

EA3302 is an EPON link amplifier that is developed by Sino and compliant with IEEE802.3ah standards. It is with good compatibility, and can be used for the mainstream OLT/ONU in the market. The coverage of the EPON system can be extended from the original 20Km to 80Km or even further.
EA3302 can be used in coordination with the mainstream OLT/ONU in the market, so as to provide efficient and flexible long-distance EPON solutions.
Basic Functions
- Compliant with IEEE802.3ah and GB (YD/T 1475-2006);
- Transparent protocol and good compatibility helps to be fully compatible with the mainstream OLT/ONU equipment in the market;
- Flexible to use. It can be not only installed in front of the splitter to amplify the multi-channel EPON signals; but also be installed at the back of the splitter to extend the single-channel EPON signal to a maximum of 80 km;
- EA3302 can effectively promote the utilization of the OLT port, and improve the maximum split ratio from 1:32 to 1:64 or even to 1:128;
- It is compact and with low power consumption;
- It is with good reliability and strong environmental adaptability, which allows the operation under -40 °C ~ +65 °C in the wild.
Hardware Specifications
| Item | Description |
| Interface | 1*dedicated OLT interface; |
| 1*dedicated ONU interface | |
| PON Interface | Uplink and downlink symmetrical transmission rate of 1Gbps; |
| High sensitivity optical receiver; | |
| Security: ONU authentication mechanism; | |
| Network coverage radius: 3 options—50km, 80km and 100km | |
| Standards | IEEE 802.3-2005 EPON OLT |
| Compliant with Technical Requirements for China Telecom EPON Equipment Item 2.2 | |
| Physical Dimensions | 184mm (W) * 192mm (D) * 25mm (H) |
| Environmental Requirements | Operating Environment: -40 °C ~ 85 °C; 10% ~ 85% non-condensation |
| Storage Environment: -40 °C ~ 85 °C; 5% ~ 95% non-condensation | |
| Power Supply | Input Voltage: 5V |
| Input Current: 0.6A | |
| Power: a maximum of 3W |
