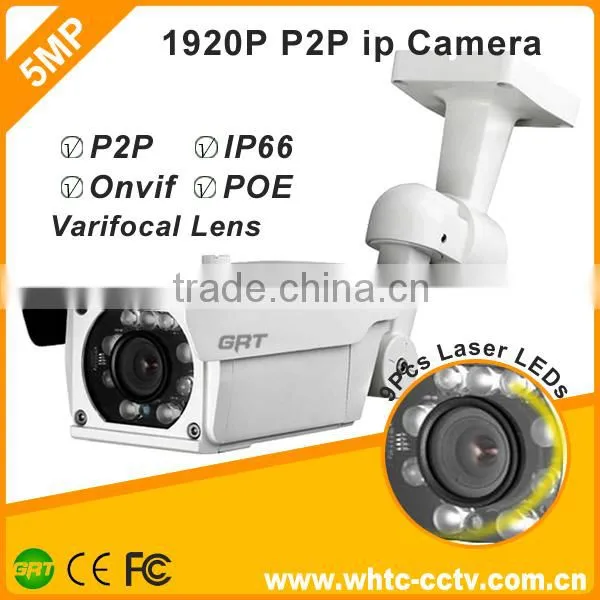

H.264 Video Alarm Outdoor HD Network Camera Bullet POE 5mp ip cam hd
IP cam hd
Highlights
* 5MP IR waterproof camera, 10fps, <180ms delay .
* ONVIF V2.0, compatible with major brands of ONVIF NVR.
* Manual varifocal 4-9mm , 2.8-12mm Mega Pixel Lens optional.
* POE, Wi-Fi (30M) , Micro SD Card Slot (support 32GB Max) optional
* Dual ICR optical filters, Auto day/night modes switch, No color cast.
* Support DDNS remote viewing.
* Support RTSP video stream with VLC media player.
* Support 1CH audio in/out,1CH BNC video output.
* D-WDR function, is up to 120dB, Excellent effect in the door or backlighting place.
* Constant current and voltage, 9pcs IR laser leds, IR distance 60M, intelligent controlling overexposure
* Instant alert when motion detection, video tampering, network abnormal.
Instant email alert to mobile phone with pictures captured when alarm.
* Free PC CMS software support to manage 128 cameras at most.
* Support remote viewing via PC CMS software, IE browser, Mobile Phone APP.
* Support data storage via FTP server, PC hard disk, Micro SD card, NVR, NAS.
* 3-Axis hidden cable brakcet
Package Listing
1 * HW238AKW 3MP HD IP Camera
1 * Bracket(include needed screws)
ip cam hd
IP CAM HD
IP CAM HD
Functions
Model |
HW1190DE |
HW119ADL |
HW229ADS |
HW239ADW |
HW259ADD |
|
Type |
Basic version |
Functional |
Basic version |
D-WDR 120db |
Low Lux |
|
Max. Pixels |
1.3 Megapixel |
1.3 Megapixel |
2 Megapixel |
3 Megapixel |
5 Megapixel |
|
Imaging sensor |
1/3″ Aptina CMOS |
1/2.5″Aptina CMOS |
||||
Processor |
TI DaVinci DM365 |
TI DaVinci DM368 |
||||
Video coding rate (Adjustable) |
1MP@ 25fps/30fps |
1MP@ 25fps/30fps |
1MP@ 25fps/30fps |
1MP@ 25fps/30fps |
||
/ |
2MP@ 25fps/30fps |
2MP@ 25fps/30fps |
2MP@ 25fps/30fps |
|||
/ |
/ |
3MP@ 15fps/20fps |
3MP@ 15fps/20fps |
|||
/ |
/ |
/ |
5MP@ 10fps |
|||
BNC Analog Output |
Support 1CH BNC video output |
|||||
Audio I/O |
/ |
1CH RCA |
/ |
1CH RCA |
1CH RCA |
|
Audio Function |
G.711 format, 64Kbps |
|||||
Audio broadcast, recording, two-way talkback | ||||||
Optional Functions (require extra charges) |
POE |
POE |
POE |
POE |
POE |
|
/ |
SD Card Slot |
/ |
SD Card slot |
SD Card slot |
||
/ |
WiFi |
/ |
WiFi |
WiFi |
||
Min. Illumination |
Color: 0.4Lux, B/W:0.1Lux |
Color: 0.6Lux;B/W:0.08Lux |
Color: 0.1Lux;B/W:0.01Lux |
Color: 0.6Lux;B/W:0.08Lux |
||
Black & White: 0Lux | ||||||
S/N Ratio |
≥ 50dB |
|||||
Infrared LED |
9 IR Laser LEDs, IR range 50-60M |
|||||
Lens |
Default lens: 9-22mm varifocal lens, Optional: 2.8-12mm (not suitable for 5MP model) |
|||||
Shutter Speed |
1/60 ~ 1/100,000 second |
|||||
Noise redection |
3DNR |
|||||
AGC&WB&Exposure |
Auto Gain Control, Auto White Balance, Auto Exposure |
|||||
Interface standard |
Onvif V2.0 |
|||||
Network Protocol |
PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS; |
|||||
Stream type |
Video Stream or Video&Audio Stream (settable) |
|||||
H.264 Compression format, CBR / VBR | ||||||
Dual Strem: Main Stream 1~8Mbps , Sub Stream 0.5~2Mbps (adjustable) | ||||||
System Maintenance |
Upgrade via Network, Power Timer, Manually restore to default |
|||||
System Management |
Password Protection |
|||||
System authority |
Permission level: Administrator / Common User |
|||||
E-Zoom |
Picture can be zoomed by mouse |
|||||
Alarm Event |
Motion Detect, Video Tampering, Network Abnormal |
|||||
Alarm Responses |
Snapshot, Email Alert, Start to Record , FTP Upload |
|||||
Recording modes |
Manual, Schedule, Motion Detect, Network Abnormal |
|||||
Image Capture |
JPEG format (picture definition is same with video) |
|||||
Network |
10M/100M RJ45 self-adaptive |
|||||
Storage methods |
Upload to FTP Server, Built-in Micro SD Card, NVR, NAS, PC Hard disk |
|||||
Installation type |
Ceiling mount / Wall mount |
|||||
Access methods |
PC Software, IE Browser, Mobile Phone APP (IOS, Android) |
|||||
Bracket |
3-axis manual rotatable bracket, cable is hidden |
|||||
Waterproof rate |
IP67 |
|||||
Working temperature |
-10°C ~ +60°C (Built-in heater can be added Only if POE/Wi-Fi/SD Card Slot Modules are all cancelled) |
|||||
Camera temperature |
25°C~35°C |
|||||
Working Humidity |
< 90% |
|||||
Power Consumption |
DC Female Interface, DC12V±5%,IR ON :8W |
|||||
SIZE(mm) |
Unit packing:369 x 134 x 110mm Carton size: 610 x 430 x 400mm(14pcs/ CTN) |
|||||
Weight(Kg) |
Unit Weight: 1.63kg~1.75 kg Carton Weight: 23.1kg~24.5kg |
|||||
Qulity Assurance
1. Input Quality Control
2. Aging test for main raw material
3. Production in factory
4. 48 hours aging test for finished products
5. QA inspect samples
Assuranc Business Terms
1. MOQ: 1pcs
2. Delivery terms: EX work, FOB, CFR, CIF etc.
3. Delivery time: Sample: within 3 working days
100~200pcs: 5 working days
201~800pcs: 10 working days
4. Payment terms: T/T before deliver, L/C, Western Union, MoneyGram
Our Service
1. OEM and ODM, private labeling and distributorships are accepted
a. Logo printing
b. DIY Sticker/Label
c. Branding Your Boxes
d. Boot Logo
2. Your designated market area, idea of design and all private information are protected
3. Well-trained and experienced staffs will answer all enquiries and questions within 24hours
4. Providing free online technical support
5. 2-years warranty support
Q: What's the MOQ?
A: MOQ is 1pcs for your first order.
Q: How long is the delivery time?
A: Sample order is around 5 working days, bulk order is 7-10 working days.
Q: How long is the warranty
A: All of product is two years after shipment
Q: Why do you choose us GRT?
A1. All of our product is 48 hours aging test
A2. Provided free CMS software
A3. Updated software version promptly
A4. Provided free technical support
A5. Updated full price list per month as per the feedback of security market
A6. Good pre-sale and after-sale service from GRT
