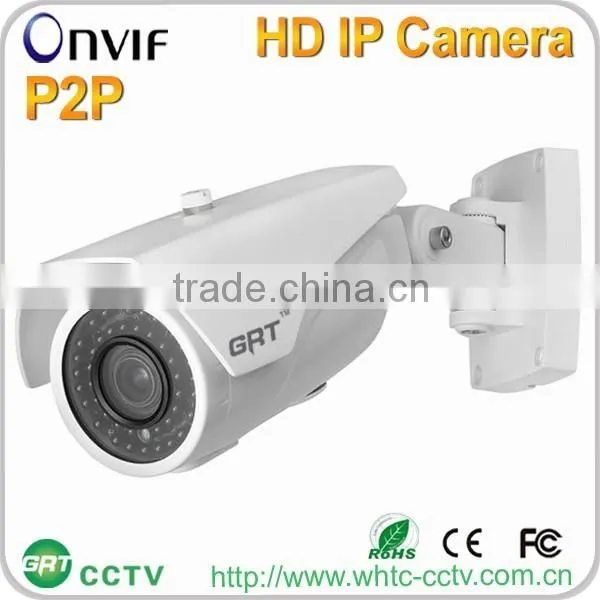

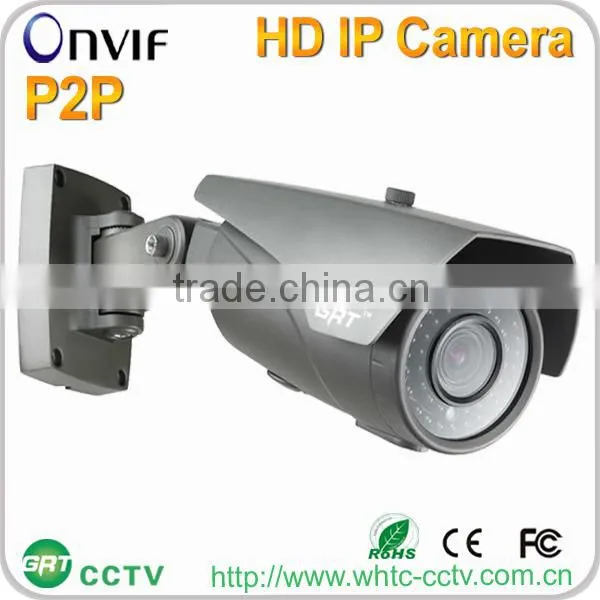

Onvif IR 40m Varifocal Lens POE 960P,2MP,3MP,5MP hd 1.3mp ip Camera

Onvif IR 40m Varifocal Lens POE 960P,2MP,3MP,5MP hd 1.3mp ip Camera thumbnail-1
Onvif IR 40m Varifocal Lens POE 960P,2MP,3MP,5MP hd 1.3mp ip Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRT
Model Number:
HW13A2K4D
Contact Supplier Request Quote Chat Now
Shenzhen Wu He Tian Chen Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GRT
Model Number HW13A2K4D
Type Digital Camera
Style Bullet Camera
Sensor Other, CMOS, 1/3"progressive scanning CMOS
Technology NetWork
Special Features Other, Metal Case, Waterproof / Weatherproof



Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera





Mega pixel IR  Camera-    HW13A2K4D





Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera

Function Feature:

Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera

P2P IP Camera  Support P2P function

H.264 Main Profile @level 3
HD 960P    1280*960 Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
Support RTSP Compatible with VLC Media Player
Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
Support Two Way Audio(Optional)
Build in Motion Detection
1/3"progressive scanning CMOS
2.8-12mm Mega pixel Varifocal Lens included

Φ5 36pcs IR LED IR Range 30 m
Support Power over Ethernet (IEEE 802.3af) optional
IP66 Rated Waterproof, Outdoor Use
Support iPhone/iPad/Android Mobile
Support Intelligent Video Analytics Software








Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera

 Specification:





Model

HW13A2K4D

Hardware

Sensor

1/3"progressive scanning CMOS

Effective Pixels

1280(H)×960(V)

Min.Illumination

0.01 LUX (0 LUX IR LED on)

Day/Night

Auto,dual IR-Cut filter

IR LED

Φ5 36pcs IR Leds  IR Range 30 m

Max S/N Ratio

>50dB

Electronic Shutter

Rolling Shutter

Interfaces

Optical lens

Interface

MT12 (Interchangeable Lens)

Lens

Fixed Iris, Manual Focus

Focal Length

Fixed-Focal, f3.6mm 2MP IR Lens (6mm lens optional)

H View Angle

70.0°

Network Interface

Lan

10/100M BASE-TX,RJ-45 connector


Audio video encoding

Video Compression

H.264 Main Profile; MJPEG/JPEG Baseline

Resolution

Main Stream

HD 720P (1280*960)30fps

Sub Stream

CIF(352*288)/QVGA(320*240)/QCIF(176*144)  1-30fps

Video Bitrate

32Kbps~4Mbps,Supports CBR/VBR

Title OSD

Supports channel name, date, and video stream information overlay;
OSD location is adjustable

Privacy Mask

4 configurable regions

Image Orientation

image flip and mirror

Auto Image Control Functions

Auto  Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC)

Image Controls

Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling

Audio Compression

G.711

Two Way Audio

Support

Data transmission and storage

Data storage

Video and Image

Recording

Recording set up to record by motion trigger,alarm trigger, manual, or schedule

Alarm Output

FTP,E-mail, Explorer, Software

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP

Wireless protocols(-W)

802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports)

ONVIF protocols

Support 1.02 version

Remote View

PC

IE 6.0 or later, max 10 users

Mobile Phone

iPhone, Android, Blackberry Mobile

General Parameters

Environmental Casing

Waterproof (IP66  Rated), Outdoor Use

Installation

Brackets Included, Wall Mount

Operating Temperature

-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

Operating Humidity

0% -85% RH

Power

DC12V 2.0A

POE

POE Class 3 IEEE802.3af, optional for "-POE" Model

Power Consumption

9W(MAX)

Dimension

174(L) * 75(W) * Φ60 (H)mm

Weight

1KG (2.2lb)

Approvals

CE FCC RoHS







 Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera





Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip cameraOnvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip cameraOnvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera

Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera



Our Services

 Quality Assurance:

1. Input Quality Control

2. Aging test for main raw material

3. Production in factory

4. 48 hours aging test for finished products

5. QA inspect samples



Our Service:

1. OEM, private labeling and distributorships are accepted

2. Your designated market area, idea of design and all private information are protected

3. Well-trained and experienced staffs will answer all enquiries and questions within 24hours

4. Providing free online technical support

5. 2-years warranty support

Others about quotation:

1. Discounts are accepted based on order quantities, and more discounts will provide if work longer

2. Shipping freight will be quoted to you for compare





Business Terms:

1. MOQ: 5pcs

2. Delivery terms: EX work, FOB, CFR, CIF etc.

3. Delivery time: Sample: within 3 working days

               100~200pcs: 5 working days

               201~800pcs: 10 working days

4. Payment terms: T/T before deliver, L/C, Western Union, MoneyGram





Onvif IR 40m Varifocal lens POE 960P,2MP,3MP,5MP hd 1.3mp ip camera
