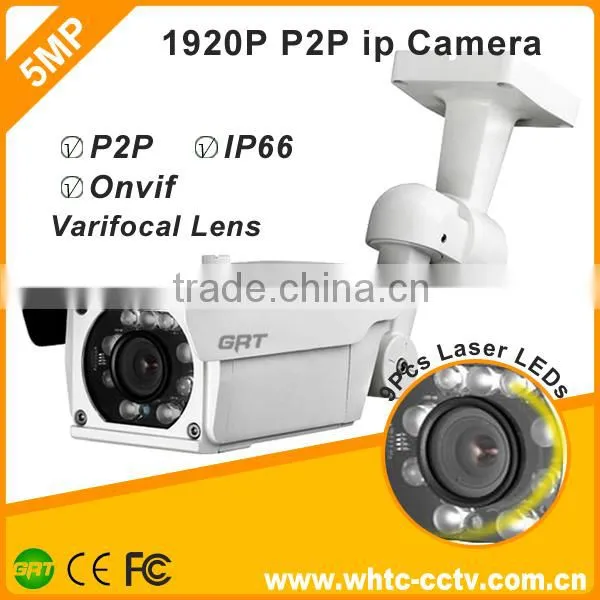

new technology Onvif P2P Bullet outdoor IR 40m Varifocal lens full HD 5MP ip camera

Model

GRT- HW259ADD  5mp ip camera

Hardware

Sensor

1/2.5"progressive scanning CMOS

Effective Pixels

2592(H)×1920(V)

Min.Illumination

0.1 LUX (5 LUX IR LED on)

Day/Night

Auto,dual IR-Cut filter

IR LED

9pcs IR laser Leds  IR Range 60 m

Max S/N Ratio

>68dB

Electronic Shutter

Rolling Shutter

Interfaces

Optical lens

Interface

 M12 Varifocal Lens

Lens

varifocal lens Fixed Iris, Manual Focus

Focal Length

2.8-12mm

H View Angle

30.0~120°

Network Interface

Lan

10/100M BASE-TX,RJ-45 connector

Audio video encoding

Video Compression

H.264 Main Profile

Resolution

Main Stream

HD 1920P (2592*1920)15fps

Sub Stream

1080P/720P/ CIF(352*288)/QVGA(320*240)/1-30fps

Video Bitrate

32Kbps~4Mbps,Supports CBR/VBR

Title OSD

Supports channel name, date, and video stream information overlay;
OSD location is adjustable

Privacy Mask

4 configurable regions

Image Orientation

image flip and mirror

Auto Image Control Functions

Auto  Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC)

Image Controls

Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling

Audio Compression

G.711

Two Way Audio

Support

NetWork

Data storage

Video and Image

Recording

Recording set up to record by motion trigger,alarm trigger, manual, or schedule

Alarm Output

FTP,E-mail, Explorer, Software

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP

Wireless protocols(-W)

802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports), POE(Optional)

ONVIF protocols

Support 2.0 version

Remote View

PC

IE 6.0 or later, max 10 users

Mobile Phone

ios, Android

General Parameters

Environmental Casing

Waterproof (IP66  Rated), Outdoor Use

Installation

Brackets Included, Wall Mount

Operating Temperature

-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

Operating Humidity

0% -85% RH

Power

DC12V 2.0A

POE

POE Class 3 IEEE802.3af, optional for "-POE" Model

Power Consumption

12W(MAX)

Dimension

369(L) * 85(W) * 81 (H)mm

Weight

1.5KG

Approvals

CE FCC RoHS
