HD cloud 720P 1 Megapixel CMOS outdoor p2p IP Camera network camera
- 20000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GRT | Model Number: | HW10A2M2D |
Type: | IP Camera | Style: | Bullet Camera | Sensor: | Other, CMOS, 1/4"progressive scanning CMOS, OV9712+HI3518E |
Technology: | NetWork | Special Features: | Other, Waterproof / Weatherproof, Waterproof / Weatherproof |
Product Description

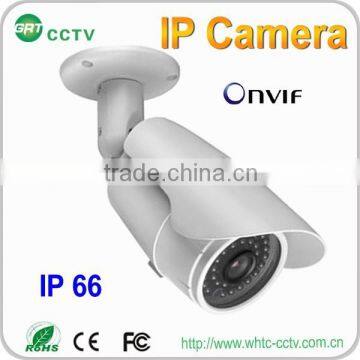

HD cloud 720P 1 Megapixel CMOS outdoor p2p IP Camera network camera
Mega pixel IR Camera- HW10A2M2D
Function Feature:
IP Camera HD cloud 720P 1 Megapixel CMOS indoor wireless p2p network camera
P2P IP Camera Support P2P function
H.264 Main Profile @level 3
HD 720P 1280*720 Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
Support RTSP Compatible with VLC Media Player
Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
Support Two Way Audio(Optional)
Build in Motion Detection
1/4"progressive scanning CMOS
3.6/6/mm Mega pixel Fixed Lens included
Φ5 36pcs IR LED IR Range 30 m
Support Power over Ethernet (IEEE 802.3af) optional
IP66 Rated Waterproof, Outdoor Use
Support iPhone/iPad/Android Mobile
Support Intelligent Video Analytics Software
IP Camera HD cloud 720P 1 Megapixel CMOS indoor wireless p2p network camera
Specification:
Model | HW10A2M2D | ||
Hardware | |||
Sensor | 1/4"progressive scanning CMOS | ||
Effective Pixels | 1280(H)×720(V) | ||
Min.Illumination | 0.1 LUX (0 LUX IR LED on) | ||
Day/Night | Auto,dual IR-Cut filter | ||
IR LED | Φ5 36pcs IR Leds IR Range 30 m | ||
Max S/N Ratio | >50dB | ||
Electronic Shutter | Rolling Shutter | ||
Interfaces | |||
Optical lens | Interface | MT12 (Interchangeable Lens) | |
Lens | Fixed Iris, Manual Focus | ||
Focal Length | Fixed-Focal, f3.6mm 2MP IR Lens (6mm lens optional) | ||
H View Angle | 70.0° | ||
Network Interface | Lan | 10/100M BASE-TX,RJ-45 connector | |
Audio video encoding | |||
Video Compression | H.264 Main Profile; MJPEG/JPEG Baseline | ||
Resolution | Main Stream | HD 720P (1280*720)30fps | |
Sub Stream | CIF(352*288)/QVGA(320*240)/QCIF(176*144) 1-30fps | ||
Video Bitrate | 32Kbps~4Mbps,Supports CBR/VBR | ||
Title OSD | Supports channel name, date, and video stream information overlay; | ||
Privacy Mask | 4 configurable regions | ||
Image Orientation | image flip and mirror | ||
Auto Image Control Functions | Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC) | ||
Image Controls | Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, | ||
Audio Compression | G.711 | ||
Two Way Audio | Support | ||
Data transmission and storage | |||
Data storage | Video and Image | ||
Recording | Recording set up to record by motion trigger,alarm trigger, manual, or schedule | ||
Alarm Output | FTP,E-mail, Explorer, Software | ||
Network protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP | ||
Wireless protocols(-W) | 802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports) | ||
ONVIF protocols | Support 1.02 version | ||
Remote View | PC | IE 6.0 or later, max 10 users | |
Mobile Phone | iPhone, Android, Blackberry Mobile | ||
General Parameters | |||
Environmental Casing | Waterproof (IP66 Rated), Outdoor Use | ||
Installation | Brackets Included, Wall Mount | ||
Operating Temperature | -20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V | ||
Operating Humidity | 0% -85% RH | ||
Power | DC12V 2.0A | ||
POE | POE Class 3 IEEE802.3af, optional for "-POE" Model | ||
Power Consumption | 9W(MAX) | ||
Dimension | 174(L) * 75(W) * Φ60 (H)mm | ||
Weight | 1KG (2.2lb) | ||
Approvals | CE FCC RoHS |
Quality Assurance:
1. Input Quality Control
2. Aging test for main raw material
3. Production in factory
4. 48 hours aging test for finished products
5. QA inspect samples
Our Service:
1. OEM, private labeling and distributorships are accepted
2. Your designated market area, idea of design and all private information are protected
3. Well-trained and experienced staffs will answer all enquiries and questions within 24hours
4. Providing free online technical support
5. 2-years warranty support
Others about quotation:
1. Discounts are accepted based on order quantities, and more discounts will provide if work longer
2. Shipping freight will be quoted to you for compare
Business Terms:
1. MOQ: 5pcs
2. Delivery terms: EX work, FOB, CFR, CIF etc.
3. Delivery time: Sample: within 3 working days
100~200pcs: 5 working days
201~800pcs: 10 working days
4. Payment terms: T/T before deliver, L/C, Western Union, MoneyGram
