Handheld Fiber Optic Micrscope_FV-9500

Name: Handheld Fiber Optic Micrscope_FV-9500
Brand: neofibo
SKU: 123884797

US$ 678 - 707 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

neofibo

Model Number:

FV-9500

Shenzhen Neofibo Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name neofibo

Model Number FV-9500

Key Feature:

1. FC/SC/ST/E2000/LC/MU/MPO compatible.

2. 3.5-inch TFT display.

3. Up to 250x overall magnification.

4. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection.

5. some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector.

Detail information:

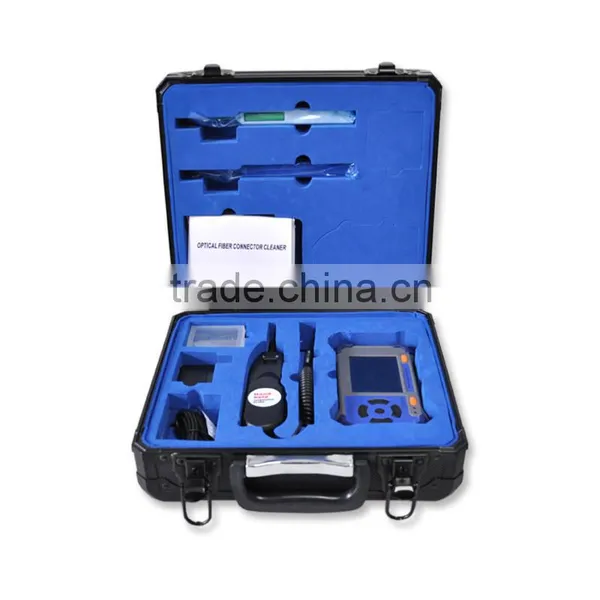

Standard Accessories
Inspection Probe	x 1
Mainframe	x 1
AC power adapter/battery charger	x 1
Rechargeable battery pack	x 1
2.5mm tip for PC male connectors	x 1
1.25mm tip for PC male connectors	x 1
Tip for SC / FC PC female connectors	x 1
Tip for LC PC female connectors	x 1
Tip box	x 1
User Manual	x 1
Carrying case	x 1
Inspection Probe
Magnification	400X (9” monitor); 250x (3.5”monitor)
Detection Limit	0.5μm
Focus Control	Manual , in-probe
Principle	Bright field reflected light microscopy
Dimensions	180mm x 40mm x 30mm
Weight	200g
Mainframe
Display	3.5” TFT-LCD, 320 x 240 pixels
Dimensions	170mm x 100mm x 40mm
Weigh(including battery)	200g
Power Supply	Replaceable battery or universal input 5V DC adapter
Battery	Rechargeable Li-Ion, 3.7V / 1450mAh
Battery life	> 3 hours (continuous)
Charger/AC adapter	US, EU, UK and Australian versions available
Image / Video Storage	8GB SD card
Operating Temperature	-20°C to 50°C
Storage Temperature	-30°C to 70°C
