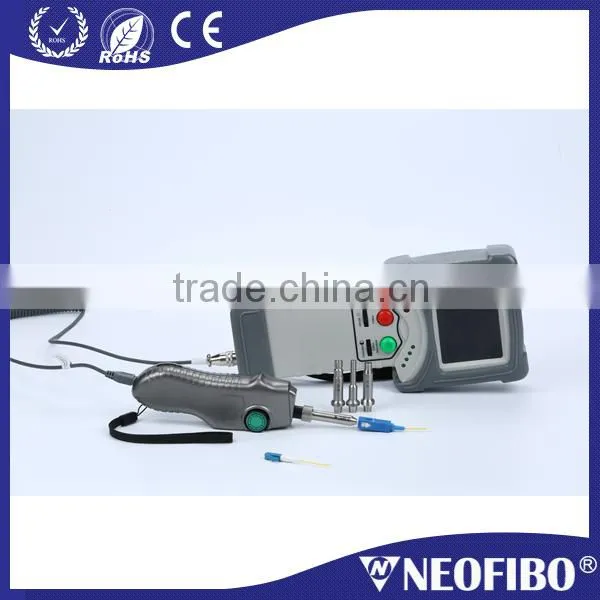

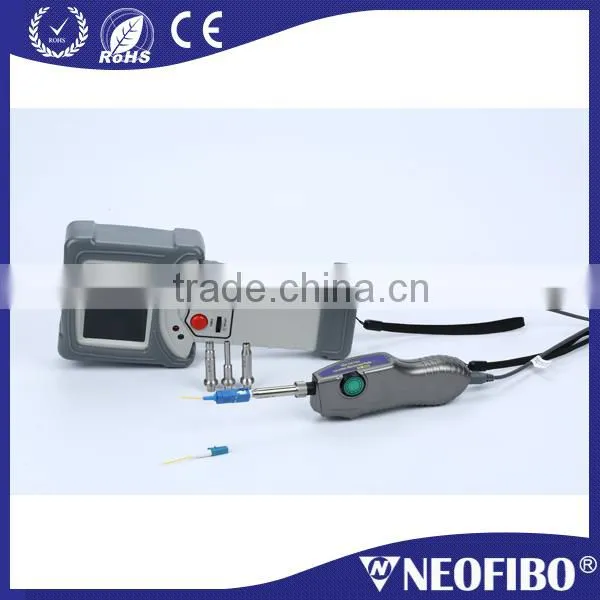

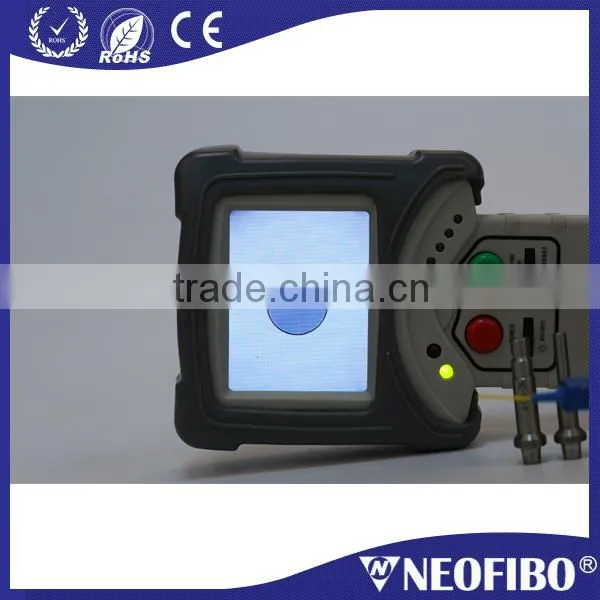

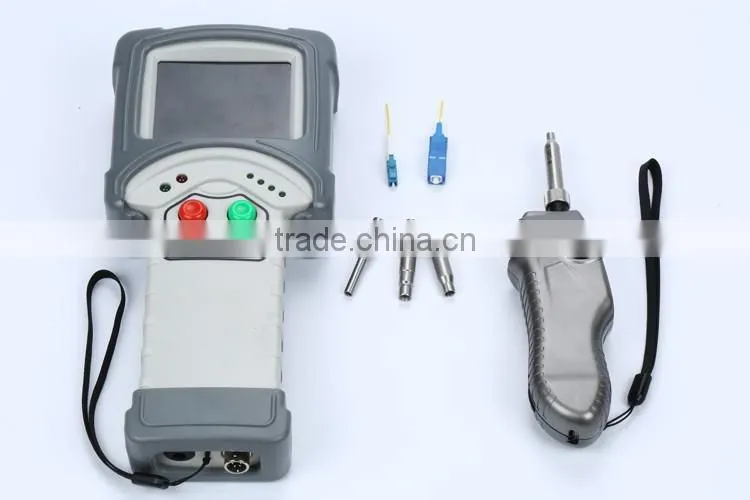

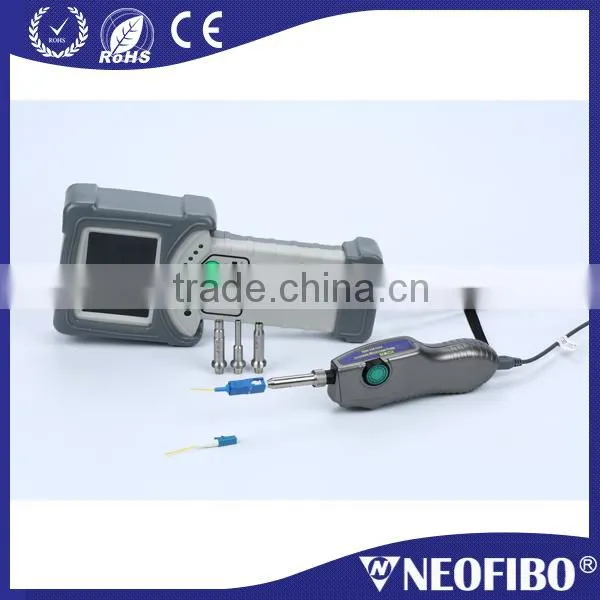

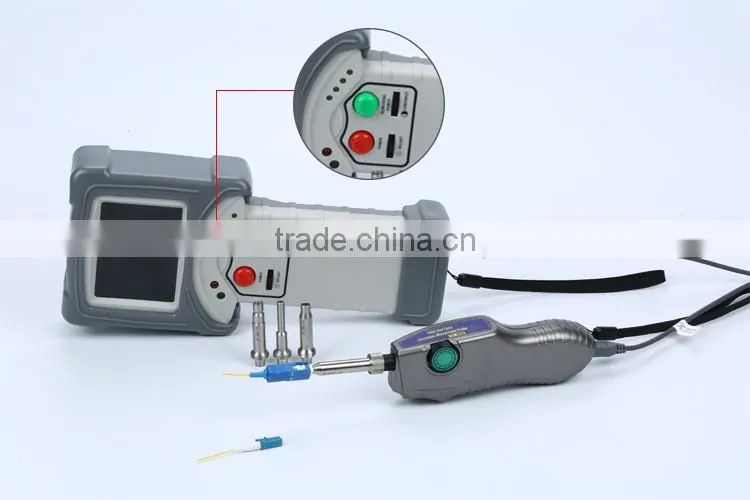

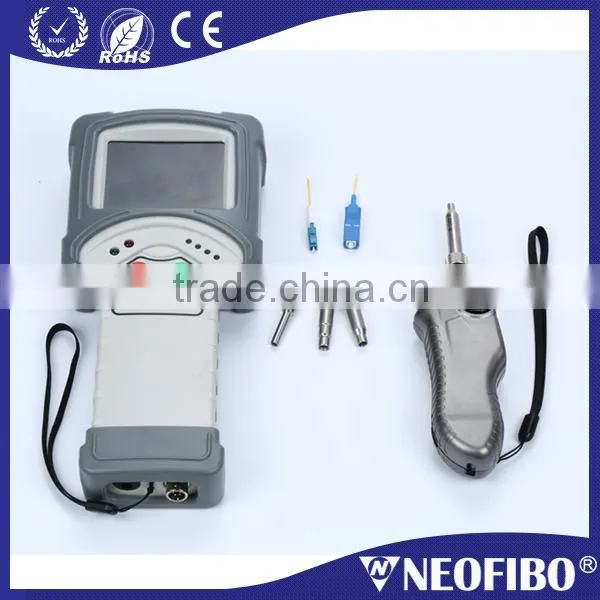

FK-7500A Handheld Optic Inspection fiber microscope
1.400X Magnification, less than 1μm resolution.
2.35 kinds of tips available to inspect both PC and APC
3.Available to inspect MPO/MTP PC or APC with multiple cores
4.More than 98% consist alignment with precise cone contact
5.Stable 8 hrs+ continuous work, less than 3% failure
| 1.Magnification Ability | 400X |
| 2.Resolution(μm) | <1μm |
| 3.Field of View(mm) | 0.40*0.31 |
| 4.CCD Sensor | 1/3, 600Line |
| 5.Machine Size | L 165(mm) × W 28(mm) × H 40(mm) |
| 6.LCD monitor size | 3.5 Inch Display |
| 7.End face size in display | 20(mm) |
| 8.Battery Volume | 3500(mAh) |
| 9.Working Hours | 8h |
| 10.Total Weight | 1.8 Kg |
| 11.Materials | Iron 40%+ plastic 60% |
Features
1.Single way of a flip of the wheel to have focus control
2.Bright and Contrast Adjustment for indoors/outdoors operation
3.60° or lengthen tips avaialble to test specital connectors
4.USB feature to connect PC and data software analyze
5.Precise cone contact to reach 98% consist alignment
6.35 assorted of tips available for all types connectors inspection
Applications
1.Used to inspecting fiber fiber connector end face in the field
2.Field termination installations for scratches clearly and highly visible
3.Finished, half-finished, PC and APC all types can be tested
4.Suitable for patch cord manufacturers and laboratories application
What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
