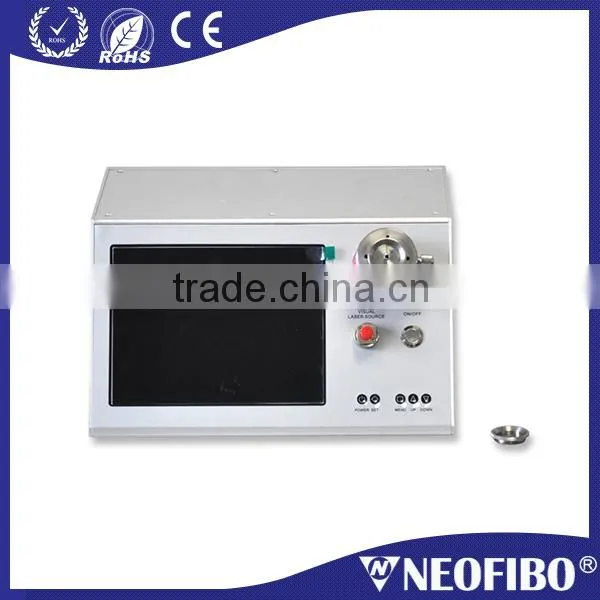

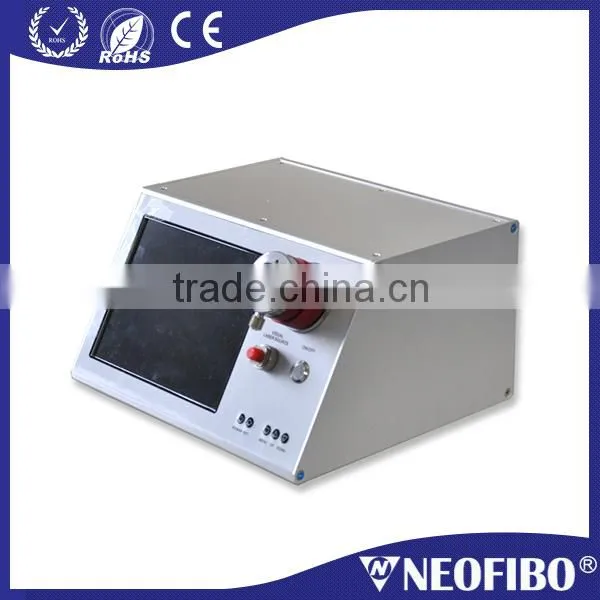

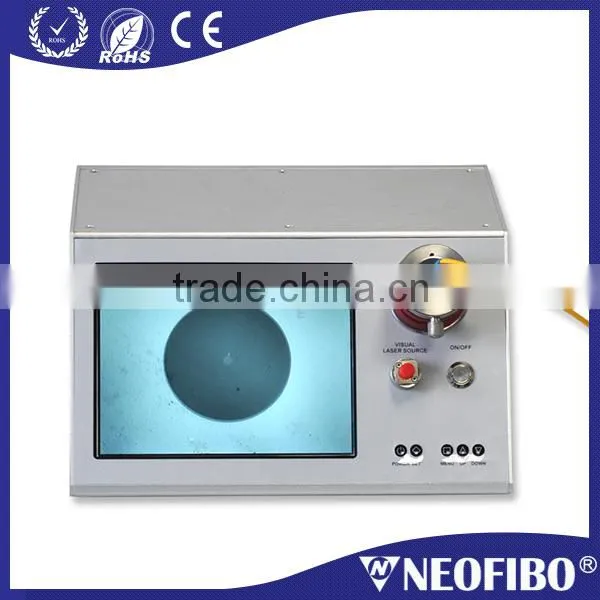

DC 12V Coaxial Blue LED 50000 hrs fiber optic connector inspection
1.Integrated design concept with monitor and inpecto together
2.Smiply operation with smooth focus control, stable testing results
3.8digital monitor and high resolution image sensor provide ultra clear image quality
4.Image capture function access to capture image anytime and in SD card
5.Built in visual fautl locator realize patchcord multifuction inspection
6.200× and 400 × magnification optionable
| 1.Magnification | 400X or 200 X |
| 2.CCD Area resolution | Coaxial Blue LED,50000 hrs |
| 3.Focus, adjust type | Manual; Y X axis center adjustment knob |
| 4.Monitor | 8" TFT 1280*768 Ultra clear screen |
| 5.Power supply | DC 12V |
| 6.Power consumption | 3-10W |
| 7.Total L*W*H | 285*245*160mm |
| 8.Total Weight | 2.95Kg |
| 9.Materials | Iron 80%+ plastic 20% |
Features
1.Fiber end face inspection with diameter 1.25mm and 2.5mm for patchcord
2.Available to inspect APC PC connectors, module, Rosa Tosa, MPO/MTP, MTRJ
3.Built in visual fautl locator realize patchcord multifuction inspection
4.Image capture function access to capture image anytime and in SD card
5.8” digital TFT display scratches/chips/dents/dust easily and clearly
6.Compact and easy to use, convenient, only need to connect power to start testing
7.Dust proof design concept provide good result under harsh environment
Applications
1.Bench-top microscope with diameter 1.25mm and 2.5mm for patchcord
2.Single core 1.25/2.5mm fiber connector inspection also MPO/MTP, MTRJ available
3.Suitable for patch cord manufacturers and laboratories application
What does NEOFIBO offer?
We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!
What will be the delivery cost?
All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.
How the goods will be delivered?
For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.
How can I order the goods?
NEOIFBO are pleased to offer our valuable customers three ordering channels, ie., Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.
How is the warranty for NEOFIBO product?
All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO's option.
