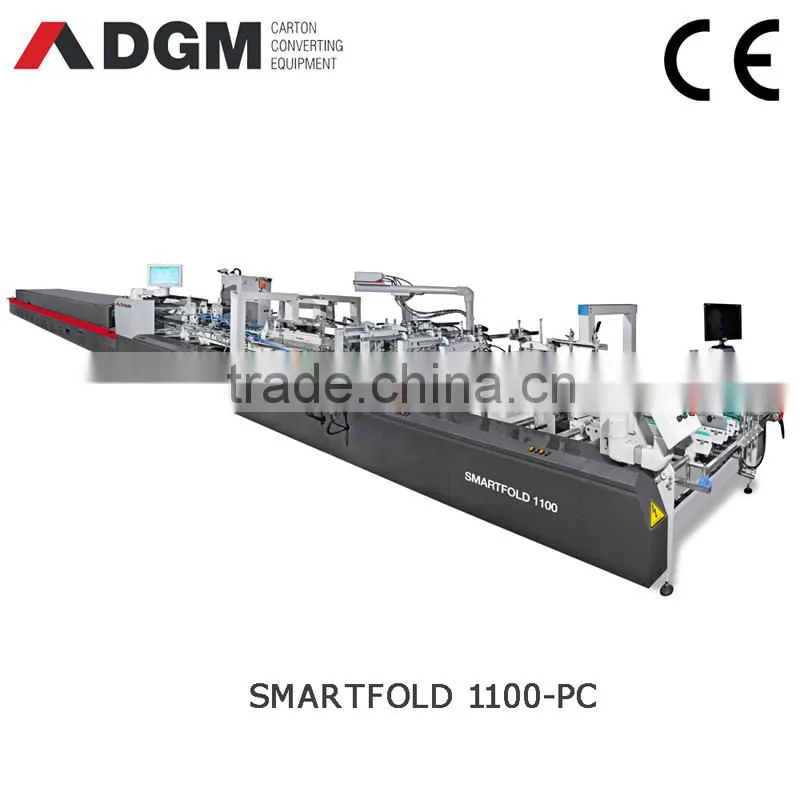

SMARTFOLD 1100 is specially indicated for the most demanding packaging companies, commercial printers and finishers. Can run from small to large sized boxes,covering a wide range of industries. It is flexible to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for straight line and crash lock bottom boxes.It is flexible and easy to operate.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .800gsm |
| Corrugated flute tyep | N,E & F |
| Capablity | |
| Speed | max. 400m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 20mm |
| Blank width | 1100mm |
| Dimensions & Weight | |
| Length | 15m |
| Width | 1.7m |
| Height | 1.9m |
| Net Weight | 4.7Ton |
| Installation | |
| Electrical connected load | 15KW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60L |
BOXES
|
Straight Line A:126-1100mm B:60-800mm |
|
Lock-bottom Box A:146-1100mm B:max.700mm C:min.60mm D:20-180mm
|
|
4-corner Box
A:120-1100mm
B:130-800mm
C:20-150mm
D:80-800mm
|
|
|
6-corner Box
A:250-1100mm
B:130-800mm
C:30-150mm
D:80-325mm
|
Key Components
| Picture | Description |
|
1). Feeder section:
|
|
2).Side register section
|
|
|
3).Pre-folding section:
|
|
|
4).Crash lock bottom section
|
|
|
5)Lower gluing Unit
|
|
|
6). Folding and Closing section:
|
|
|
7).Trombone section:
|
|
|
8.Press section(Delivery section):
|
|
|
9).4 and 6-corner device
|
|
|
10).Servo-motor of back folding device
|
