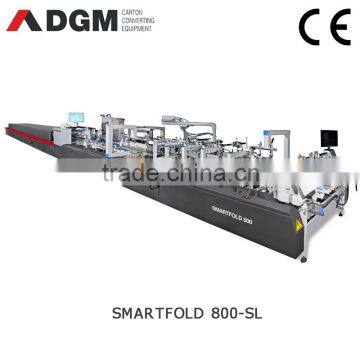

SMARTFOLD 800 bottom lock gluing machine

Straight Line

A:126-800mm

B:60-800mm

Lock-bottom Box

A:146-800mm

B:max.700mm

C:min.60mm

D:20-180mm

4-corner Box

A:120-800mm

B:130-660mm

C:20-150mm

D:80-500mm

6-corner Box

A:120-800mm

B:130-660mm

C:30-150mm

D:80-175mm

1). Feeder section:

 • Independent and motorized friction feeder with variable speed.

 • Adjustable electronic pile vibrator.

 • Side feed gates fully adjustable to the width of the blank.

 • Two adjustable front feed knives.

2).Side register section

• Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

3).Pre-folding section:

 • Left hand glue flap pre-folder up to 180º.

 • Third crease line pre-folder up to 135º.

 • 1st and 3rd crease openers.

4).Crash lock bottom section

• Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.

• Set of accesories for B-type lock bottom.

5)Lower gluing Unit

 • One lower(left side) gluing tank.

 • Easy to remove and clean

 • Electronic upper gluing system by guns.

6). Folding and Closing section:

 • Smooth and accurate folding of 2nd and 4th creases .

 • Outer folding belts adjustable up to 180º with variable speed.

 • Two upper & two lower carriers with 25 mm lower and 30 mm outer belts.

 • Width-wise adjustable heavy duty compression rollers(optional).

7).Trombone section:

 • Upper and lower drive mechanism for length adjustment.

 • Equipped with automatic belt tension-adjusting system.

 • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow.

8.Press section(Delivery section):

 • Independent and motorized press section.

 • Manual and Automatic mode(follow up).

 • Upper section moves back and forward allowing for different box length.

 • 3.2 meters total length with 2 meters effective pressure length.

 • Pneumatic pressure adjustment.

9).4 and 6-corner device

 • Motorized and untimed electronic back folding system with intelligent servo motor technology.

10).Servo-motor of back folding device

 • Two driven shafts allow a precise fold of the rear flaps.Easy to setup through the main touchscreen.
