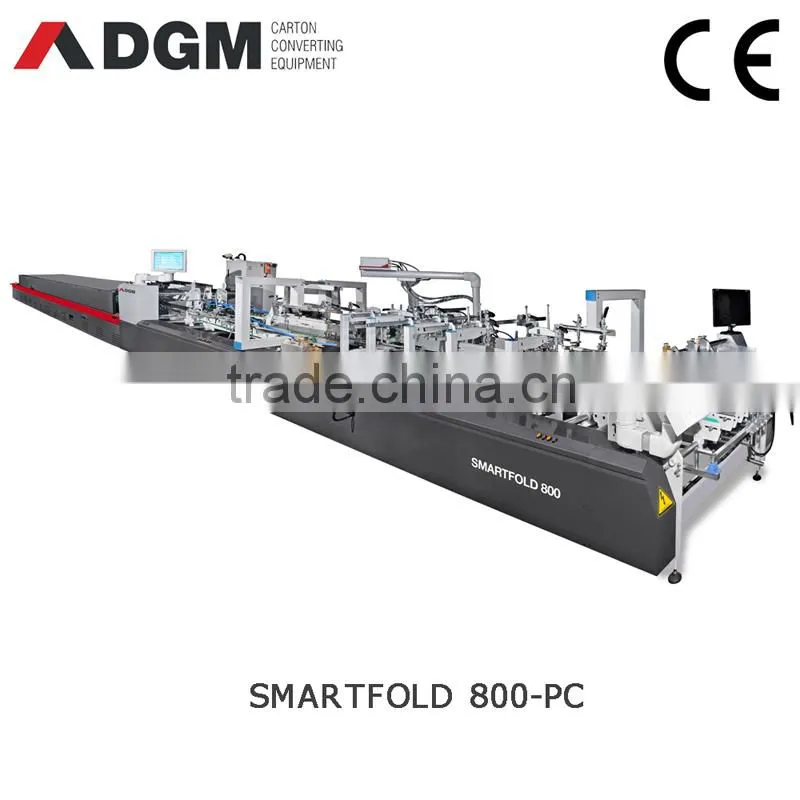

SMARTFOLD800PC Cardboard Folder Gluer Machine
SMARTFOLD SERIES
it is specially indicated for the most demanding packaging companies,commercial printers and finishers.It is optimized to run small&medium sized boxes like the one used in pharmaceutical or cosmetic industries.It is flexible to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for stranght line and crash bottom boxes.It is flexible and easy to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for straight line and crash lock bottom boxes.It is flexible and easy to operate.
A.Specification
| Processed materials | |
| Carton board | max .800gsm |
| Corrugated flute tyep | N,E & F |
| Capablity | |
| Speed | max. 280m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 12mm |
| Blank width | 100-800mm |
| Dimensions & Weight | |
| Length | 11m |
| Width | 1.4m |
| Height | 1.8m |
| Net Weight | 4Ton |
| Installation | |
| Electrical connected load | 1.5KW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60L |
| Picture | Description |
|
1. Feeder section:
|
|
2.Side register section
|
|
3.Pre-folding section:
|
|
4.Crash lock bottom section
|
|
5.Lower gluing Unit
|
|
6.Upper gluing unit
|
| |
7. Folding and Closing section:
|
| |
8.Trombone section:
|
|
9.Press section(Delivery section):
|
With more than 25 years in the ing and producing folding gluing machines,die-cutting machiens,hot foil-stamping machines and carton laminator machines,DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in Chia market.Based on this foundation,DGM machinery has its presence in over 25 countries with 5000 units sold
Bussiness development
-Founded in 1985 under under the previous name:Taiwan Bi CHENG machinery,first Technofold ES series folder gluer into production.
-1986-1989started exporting to Southeast Asia
-In 1990 sold the first folder gluer in China,opened domestic market
-1993 Laminating machine ETH series into production
-1998Automatic die-cutter Technocut series into production
-2004New 13000sqm facilities in Huizhou,Guangdong province
-Well communicated with important cities like Hongkong,Shenzhen and Guangzhou.
-2007 CE Certifications for all range of products
-2008 attended Drupa exhibition for the first time
-2012 Smartfold series intelligent folder gluer into production
DGM Machinery provides 360° services.Service process,DGM not only embodies into presales service,such as helping the customer get to know products,enhancing customer confidence in DGM products, knowing customer individual needs etc.,but also in to after sales service which is the most important aspect to make a big gap from other carton converting manufactures.DGM after sales service includes
-Techical services
-In-depth inspection and Maintenance
-Spare parts and consumables
-Machine improvements
2008attend Drupa exhibition for the first time
2014attend DGM attend all in print china 2014 on ShangHai New International Expo Center
2015attend the 9th Beijing International Printing Technology exhibition ect.,
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 752-277 37 80
Fax:(86) 752-277 37 78
