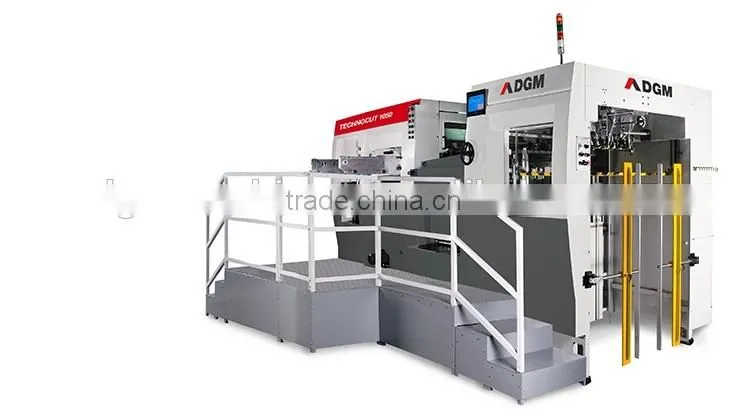

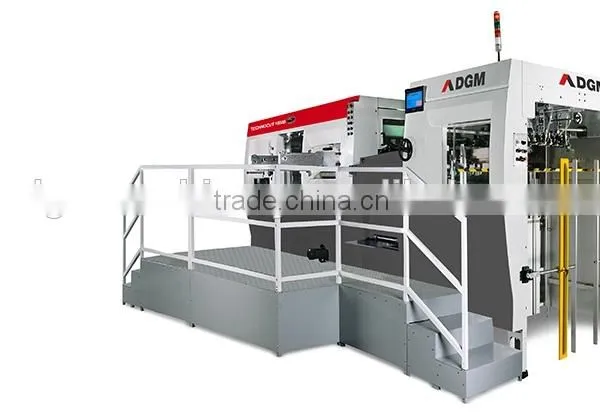

TECHNOCUT Automatic Punching Embossing and Die Cutting Machine,die Cut Machine With Embossing
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Packaging Type:
Other
Packaging Material:
Other
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DGM TECHNOCUT Automatic Flatbed Die Cutting and Creasing MachinesNegotiableMOQ: 1 Set -
TECHNOCUT 1050S Automatic Die Cutter MachineNegotiableMOQ: 1 Set
-
Automatic Paper Die Cutting Machine TECHNOCUT1050US$ 150,000 - 152,000MOQ: 1 Set
-
Flatbed Die Cutting and Creasing Machines(Technocut 1050)US$ 150,000 - 151,000MOQ: 1 Set
-
Automatic Platen Die Cutting and Creasing MachineUS$ 150,000 - 151,000MOQ: 1 Set
Packaging Type
Other
Packaging Material
Other
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
380v
Brand Name
DGM
Model Number
TECHNOCUT1050s
Weight
16TONS
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
TECHNOCUT Automatic punching embossing and die cutting machine,die cut machine with embossing
Product Description
1. Introduction
TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2. Technical Parameters:
A. Specifications:
| Processed Materials | |
| Paper | from 80g/m2 |
| Carton board | max.2000g/m2 |
| Corrugated board | max.4mm |
| Capability | |
| Sheet size | min.360*400mm |
| Sheet size | max.740*1050mm |
| Speed | 7500s/h |
| Cutting force | 300Ton |
Converting | |
| Cutting size | max.730*1040mm |
| Gripper margin | min.9.5mm |
Pile Height | |
| Feeder | 1600mm |
| Delivery | 1300mm |
| Dimensions &Weight | |
| Dimensions | 6.1*4.2*2.45m |
| Weight | 15Ton |
| Installation | |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m3 |
| Air tank-capacity | 100L |
B. Key components:
| Components | Description |
|
1). Feeder section:
|
|
2).Register table
|
|
3).Press section
|
|
4).Delivery section
|
Packaging & Shipping
DGM machines are usually loaded by 40 feet container by sea.The machines are nude cargo with fixed packaging in the container.
