Die Cutter Machine 1050
| Processed Materials | |
| Paper | from 80g/m2 |
| Carton board | max.2000g/m2 |
| Corrugated board | max.4mm |
| Capability | |
| Sheet size | min.360*400mm |
| Sheet size | max.740*1050mm |
| Speed | 7500s/h |
| Cutting force | 300Ton |
Converting | |
| Stamping & embossing size | max.720*1020mm(Longitudinal) |
| Stamping & embossing size | max.580*1020mm(Transversal) |
| Die cutting size | max.730*1040mm |
Heating System | |
Heatig Zones |
12 units |
Temperature |
max.200 º C |
Foil Equipment | |
foil length |
120 to 1200 mm |
Longitudinal |
Web width 50 to 1020 mm Web advance shafts 4 |
Transverse |
Web width 50 to 630 mm Web advance shafts 2 |
Pile Height | |
| Feeder | 1600mm |
| Feeder with non-stop | 1100(1500)mm |
| Delivery | max.1300mm |
| Dimensions &Weight | |
| Dimensions | 7.07*4.2*2.45m |
| Weight | from 16 to 18 Ton |
| Installation | |
| Compressed air | 6 bar |
| Air compressor capacity | 30 m3 |
| Air tank-capacity | 120 L |
B. Key components:
| Components | Description |
|

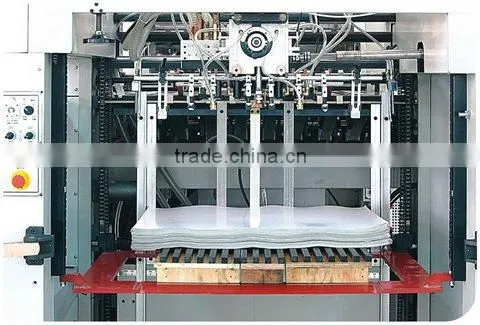

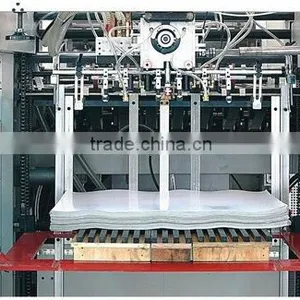

1). Feeder section:
|
|

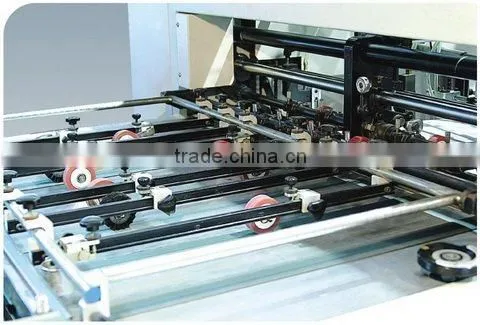

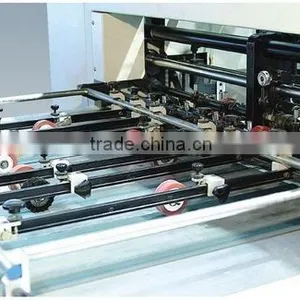

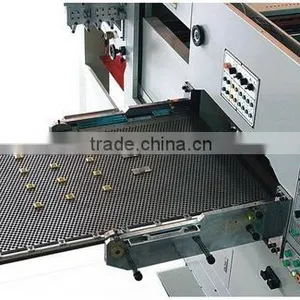

2).Register table
|
|

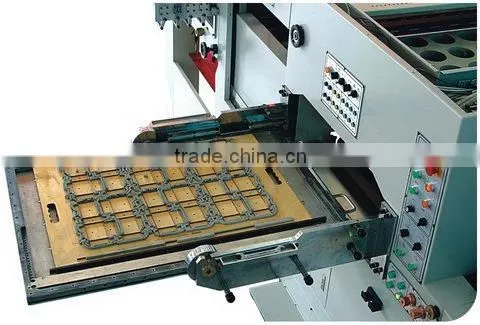

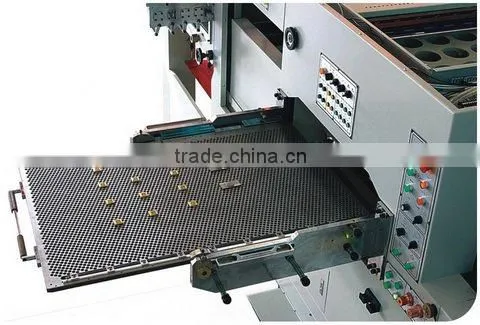

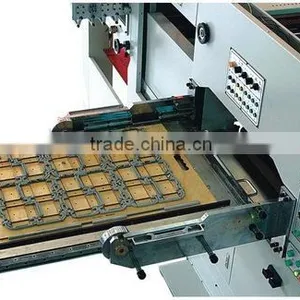

3).Press section
|
|

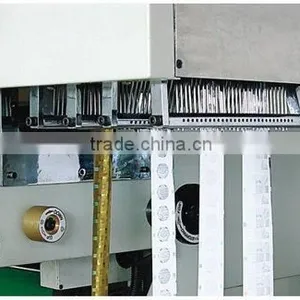

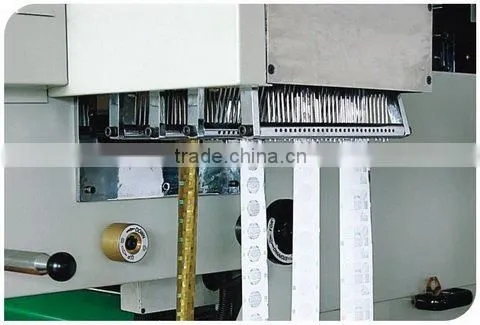

4).Foil stamping system
|
| |
6).Transverse shaft
|
With more than 20 years in the ing and producing folding gluing machines,die-cutting machiens,hot foil-stamping machines and carton laminator machines,DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in Chia market.Based on this foundation,DGM machinery has its presence in over 25 countries with 5000 units sold
Bussiness development
Workshop
DGM Machinery provides 360° services.Service process,DGM not only embodies into presales service,such as helping the customer get to know products,enhancing customer confidence in DGM products, knowing customer individual needs etc.,but also in to after sales service which is the most important aspect to make a big gap from other carton converting manufactures.DGM after sales service includes
-Techical services
-In-depth inspection and Maintenance
-Spare parts and consumables
-Machine improvements
2008attend Drupa exhibition for the first time
2014attend DGM attend all in print china 2014 on ShangHai New International Expo Center
2015attend the 9th Beijing International Printing Technology exhibition ect.,
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
