Specifications

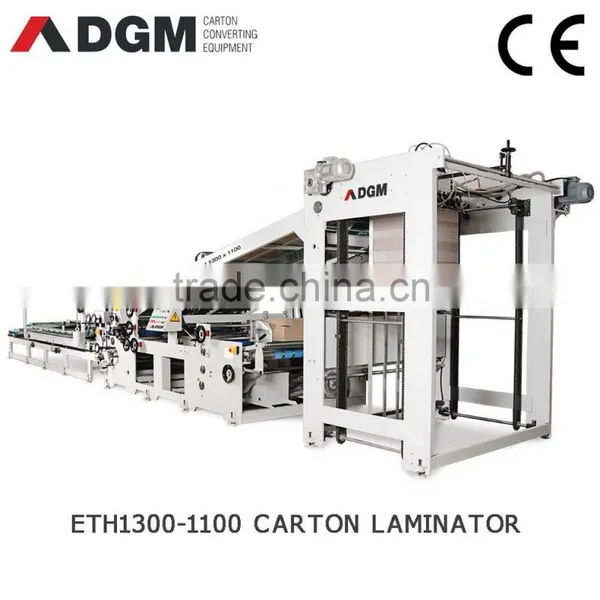

Automatic corrugator carton laminator machine ETH1300-1100
Carton Laminating
ETH Series
Automatic corrugator carton laminator machine ETH1300-1100
1. Introduction
Easy to operate and quick set-up. Suitable for all packaging industry,display floor stands,sidewalk signs,outdoor displays,poster displays,etc...
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | min.250g/ m2 |
| Corrugated flute tyep | E,F,B,C,A & up to 5 layers |
| Top sheet | from 250 to 350g/m2 |
| Capablity | |
| Speed | 5000s/h |
| Line speed | 130m/min |
| Sheet size | from 380× 380 to 1300× 1100mm |
| Blank width | 80-650mm |
| Dimensions & Weight | |
| Length | 13.45m |
| Width | 2.2m |
| Height | 2.6m |
| Net Weight | 5.5Ton |
| Installation | |
| Electrical connected load | 12.7KW |
Key Components
| Picture | Description |
|
1). Sheet Feeder : • Total height 2600-2680mm. • Streaming feeding suction head. • Feeder bridge with double sheet detector. • 8 sets of lifting suckers. • 4 sets of joggers and spring type side guide to control and transfer the substrate. • Side guide metering adjustment for flute width setting. |
|
|
2).Flute feeder • Friction feeder system by perforated belts and suction(Power 2.2 kw). • Brake system by electromagnetic clutch. • Registration System with micrometer adjustment for excellent register when laminating cardboard with cardboard. |
|
|
3).Lamination Unit • Main motor power 5.5kw. • Coater consists of 2 rollers,the glue comes from the top unit reach the gap between the application roller and metering roller. • The glue flow that is pumped out is controlled by a sensor. • Washing roller,it is used to remove unwanted glue stains from pressing cylinder,avoiding the flute to stain. • Laminating precision +/-1.5m. |
|
|
4).Pressure conveyor unit • Total length 5,100-6000 mm. • Independent motorized (total power 2.2kw) • Conveyor system with uniform and balanced pressure to ensure optimum quality in any type of work to be processed. • Upper conveyor moves back and forward. |
DGM WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines, DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, DGM machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
|
• Founded in 1985 under the previous name: Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
|
• 1986-1989 started exporting to Southeast Asia. |
| • In 1990 sold the first folder gluer in China, opened domestic market. |
| • 1993 Laminating machine ETH series into production. |
| • 1998 Automatic die-cutter Technocut series into production. |
| • 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
|
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |
| • 2007 CE certifications for all range of products. |
| • 2008 attended Drupa exhibition for the first time. |
| • 2012 Smartfold series intelligent folder gluer into production. |
workshop
|
|
|
|
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
CONTACT
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
