Home > Packaging & Printing > Packing Machinery > Laminating Machine > DGM ETH Fully Automatic Laminating Machine,corrugated to Cardboard Lining Laminating Machine

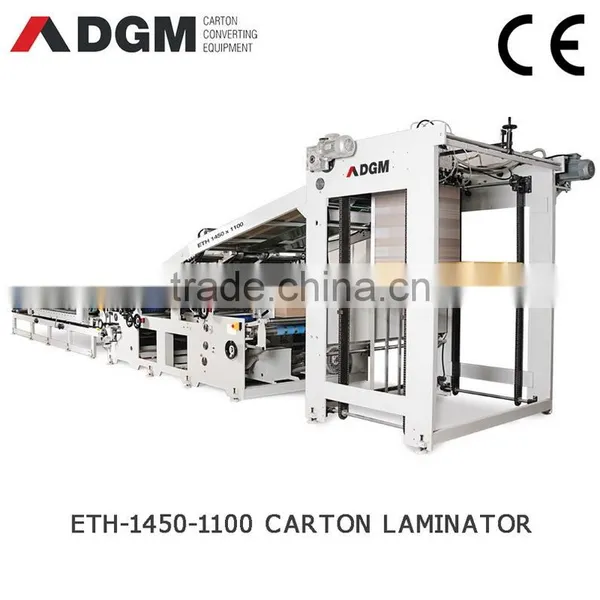

DGM ETH Fully Automatic Laminating Machine,corrugated to Cardboard Lining Laminating Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Cold glue laminating machine
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DGM ETH Series Corrugated Carton Flute Laminator MachineNegotiableMOQ: 1 Set -
Automatic Laminating Machine ETH1450-1450NegotiableMOQ: 1 Set
-
High Speed Automatic Flute Laminate MachineETH1300-1100US$ 73,000 - 8,000,000MOQ: 1 Set
-
DGM Automatic Sheet to Sheet Flute Laminating MachineUS$ 45,000 - 52,000MOQ: 1 Set
-
Cold Glue Laminating MachineUS$ 52,000 - 60,000MOQ: 1 Set
Condition
New
Type
Other, Cold glue laminating machine
Automatic Grade
Automatic
Place of Origin
Guangdong, China
Brand Name
DGM
Model Number
ETH1450*1100
Voltage
380V/50Hz
Power(W)
12.7kw
Dimension(L*W*H)
13.45*2.35*2.6m
Weight
5000KGS
Certification
CE, ISO9001
Warranty
12 month

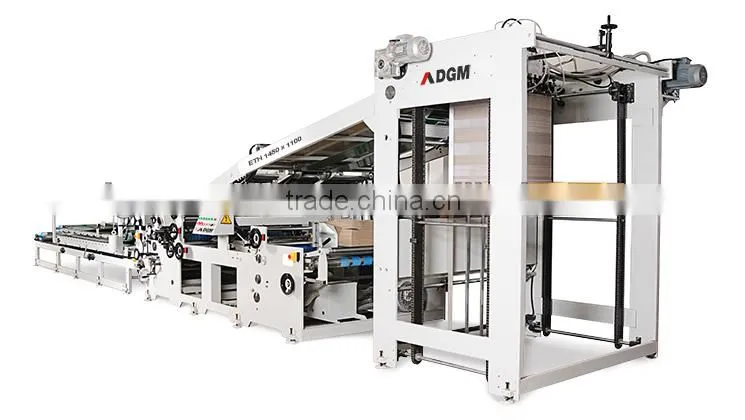

DGM ETH Fully Automatic Laminating Machine,corrugated to cardboard lining laminating machine
Product Description
1. Introduction
Easy to operate and quick set-up. Suitable for all packaging industry,display floor stands,sidewalk signs,outdoor displays,poster displays,etc...
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | min.250g/ m2 |
| Corrugated flute tyep | E,F,B,C,A & up to 5 layers |
| Top sheet | from 250 to 350g/m2 |
| Capablity | |
| Speed | 5000s/h |
| Line speed | 130m/min |
| Sheet size | from 380×380 to 1450× 1100mm |
| Dimensions & Weight | |
| Length | 13.45m |
| Width | 2.35m |
| Height | 2.6m |
| Net Weight | 7.2Ton |
| Installation | |
| Electrical connected load | 12.7KW |
Key Components
| Picture | Description |
|
1). Sheet Feeder :
|
| |
2).Flute feeder
|
| |
3).Lamination Unit
|
| |
4).Pressure conveyor unit
|
Packaging & Shipping
workshop
|
|
FAQ
1.What type of Container will it need to do loading?
1*40'GP Container
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2003
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
