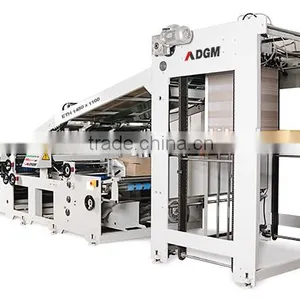

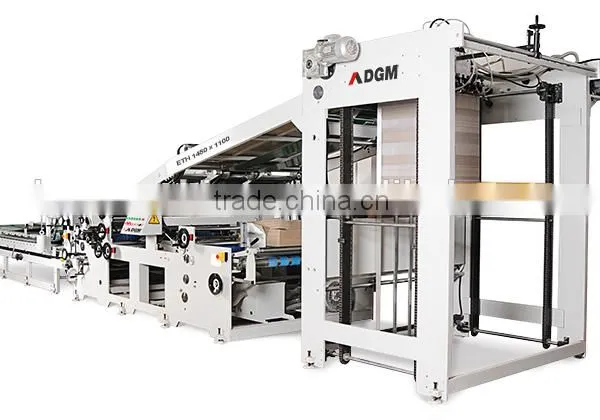

DGM Automatic Cardboard Laminator 1450*1100

US$ 52,000 - 60,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Cartons, Case

Huizhou Degang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Cartons, Case

Packaging Material Paper

Automatic Grade Automatic

Driven Type Mechanical

Voltage 380

Power 15.7kw

Place of Origin Guangdong, China

Brand Name DGM

Model Number ETH1450-1100

Dimension(L*W*H) 14.32*2.41*2.66m

Weight 7.8Ton, 7.8Ton

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

DGM Automatic Cardboard laminator 1450*1100

ETH Series

1. Introduction

Easy to operate and quick set-up. Suitable for all packaging industry,display floor stands,sidewalk signs,outdoor displays,poster displays,etc...

2.Technical parameters

Specifications

Key Components

Picture	Description
	1). Sheet Feeder : • Total height 2600-2680mm. • Streaming feeding suction head. • Feeder bridge with double sheet detector. • 8 sets of lifting suckers. • 4 sets of joggers and spring type side guide to control and transfer the substrate. • Side guide metering adjustment for flute width setting.
	2).Flute feeder • Friction feeder system by perforated belts and suction(Power 2.2 kw). • Brake system by electromagnetic clutch. • Registration System with micrometer adjustment for excellent register when laminating cardboard with cardboard.
	3).Lamination Unit • Main motor power 5.5kw. • Coater consists of 2 rollers,the glue comes from the top unit reach the gap between the application roller and metering roller. • The glue flow that is pumped out is controlled by a sensor. • Washing roller,it is used to remove unwanted glue stains from pressing cylinder,avoiding the flute to stain. • Laminating precision +/-1.5m.
	4).Pressure conveyor unit • Total length 5,100-6000 mm. • Independent motorized (total power 2.2kw) • Conveyor system with uniform and balanced pressure to ensure optimum quality in any type of work to be processed. • Upper conveyor moves back and forward.
