Home > Products > water meter > Quality Best Reliability IC card prepaid water meter

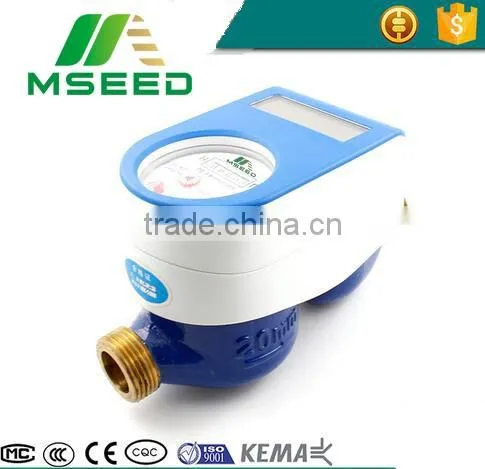

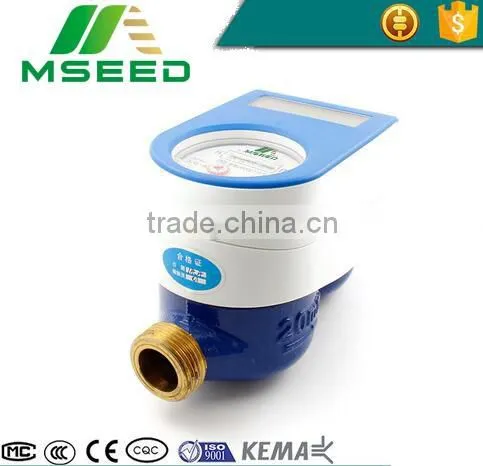

Quality Best Reliability IC card prepaid water meter
- 5000 Piece / Pieces per Month
- SHANGHAI OR NINGBO
- T/T L/C D/P D/A Credit Card PayPal
- Acrel ADF400L-3D 3 circuits single phase 10(80)A High accuracy
- Acrel ADF400L-4H Multi Circuit Electrical Instruments 4 channel 3 phase 3*1(6)A High installation flexibility
- Acrel Multi Circuit Electrical Instruments 2 channel 3 phase 3*10(80)A ADF400L-2S din rail
- Acrel din rail Multi Circuit Electrical Instruments 6 channel single phase 10(80)A High installation flexibility ADF400L-6D
- Acrel 6 channel three phase 3*1(6)A High installation flexibility din rail ADF400L-6H Multi Circuit Electrical Instruments
- Acrel ADL3000-E Electrical Measuring Instrument 3 Phase Digital Energy Meter support 2-31st
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Mseed | Model Number: | MSDN20 |
Display Type: | Analog and Digital | Phase: | Single Phase | Accuracy Class: | Class B |
Operating Temperature: | 0.1℃- +55℃ | Dimensions: | 190mm*95mm*120mm |
Product Description
Application
Measuring the volume of portable water that through the pipeline. Widely used in residential area and office building
Working Conditions
Water temperature (cold water): ≤ 40℃
Water temperature (hot water): ≤ 90 ℃
Water pressure: ≤ 1.6 Mpa
Construction
This meter consists of a meter body, a measuring unit, a register unit, a lens and others.
Indication
Cubic meter (m 3) and U.S.gallon(USG) for selecting.
◆Valve will shut down for warning when the remaining water is less than the warning limitation, and the valve will open up when inserting the card; Valve will termly shut down and open up automatically to prevent rust;
◆Hall sensor sampling, anti-magnetic attack with agile switching.
◆The data will be saved even if the power is cut;
◆External battery placement, easy to replace and its life is more than 6 years.
◆Patent ball valve, low pressure loss;
◆The entire water supply system is effectively controllable through mode of free record and pre-payment water fees;
◆The system saves a lot of manpower, and accelerates cash flow, helps to control the non-recoverable charges and do away with the due payment;
◆Quota use volume, lays down a flight of stairs water expenses, promotes water saving by using of pricing lever.
