Specifications

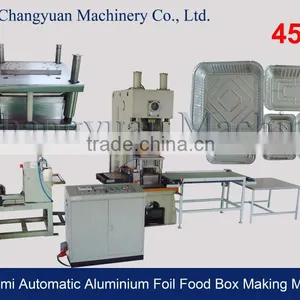

Semi Auto Aluminum Foil Container Production Line1.Easy Operation
2.CE standard
Semi Auto Aluminum Foil Container Production Line adopt imported Seimens motor,PLC and Schneider electronic componets to make sure the machine's top quality, the whole line include:
Aluminium foil roll---decoiler--pneumatic press----mould---conveyor---collection desk---packing
1). Aluminium Foil Container Making Machine adopt a lot of imported brand electronic componets, like
SEIMENS PLC and sevo motor to make sure the machine work accurate and steady.
2).There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
The foil feeder provides the supply of right quantity and length of aluminium foil, and it is
controlled by servo system in SEIMENS, which assure a high-precision step.
We are desinging & making mould by ourself for 8 years,after finishing the mould,we r testing on machine time by time to make sure the good quality and high precision,also can according to customer sample to make one cavity,2 cavites,and mulit cavites moulds.
3).This machine equipped with a mould lifter to make sure changing the mould easily by the worker.
4).We can design and manufacture machine according to customer’s requirment and customer's target price.
Technical Data:
ITEM |
CYAL-45T |
CYAL-63T |
Strokes |
40-75times/min |
30-70times/min |
Motor Capacity |
6.5KW |
8KW |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
6500KGS (approximate) |
7500KGS (approximate) |
Area |
7mx3m |
7mx3m |
Press Dimension |
1620x1050x2960 |
1820x1250x3080 |
Core Coil Head Dia |
3min/6inch |
3min/6inch |
Max. Foil Roll Outer Dia |
700mm |
800mm |
Max. Foil Width |
550mm |
670mm |
