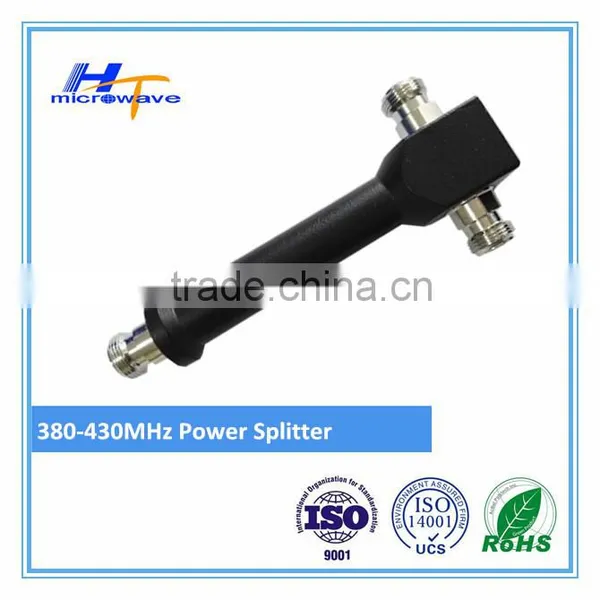

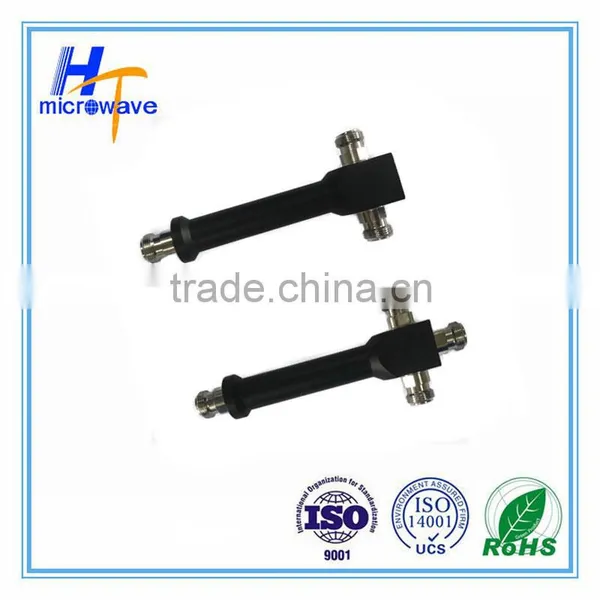

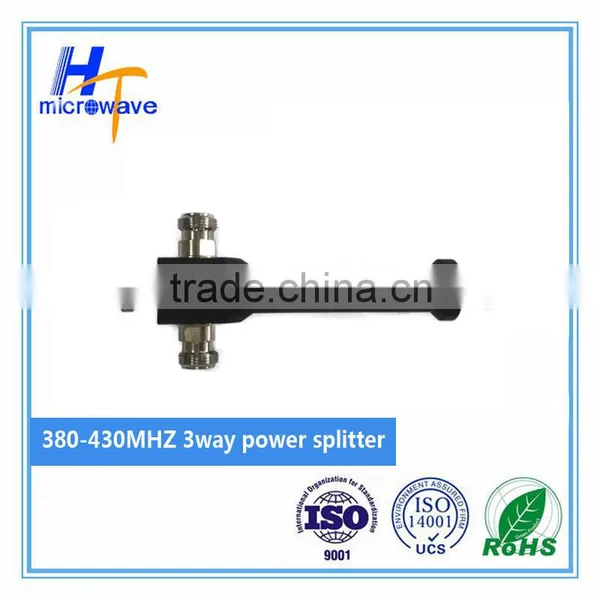

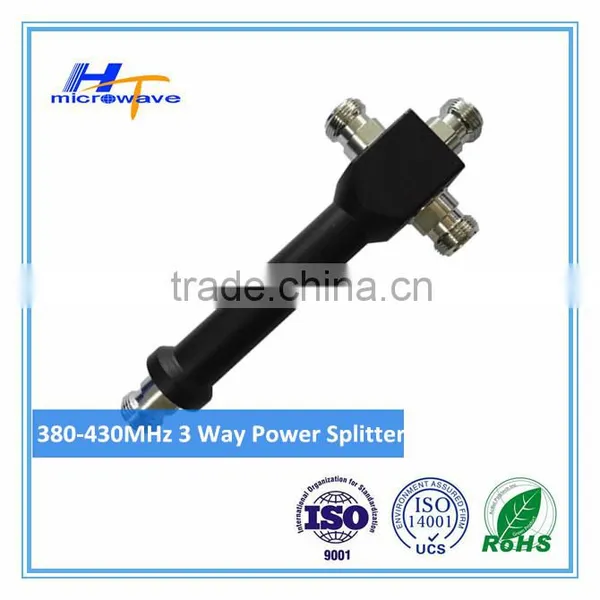

microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 3 way power splitter
- 1100000 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 3 way power divider
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 3 way coaxial splitter
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 3 way coax splitter
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 2 way splitter
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 2 way splitter combiner
-
microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 2 way rf splitter
Product Details
| Place of Origin: | Anhui, China | Brand Name: | HTMicrowave | Model Number: | HT.CPD-0825-41101 |
Packaging Details
50PCS/CARTON;
Shipping Marks & Logo can be customized
Product Description
HTMICROWAVE CO.,LTD
| | | | |
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| | | | |
| Dummy Load | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
What is power divider? Power dividers (also power splitters and, when used in reverse, power combiners) are passive devices used in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.Power dividers are used in a wide variety of applications and can satisfy almost any requirement where a signal needs to be distributed or combined.HTmicrowave offers 2-way,3-way and 4-way configurations fitted with N,7/16 DIN-Female or SMA-Femal connectors at all ports.Indoor or Outdoor use.This RF Splitter Series provide a low loss,same power split at all output ports while maintaining excellent amplitude and phase balance.Mainly used in repeater or base station to split,also can be used in indoor distribution system.Features of our products are high isolation,alternate connector configurations,rack mounting,high power combining and weatherproofing.You can choose the best product solutions for your specific needs here.
|
| microwave components telecom parts 50 ohm 380-430 mhz N and DIN type 3 way power splitter |
HT POWER SPLITTER SERIES
1. Multiple-Band Frequency
2. 200 Watt, 300 Watt and 500 Watt Average Power
3. Minimal RF Insertion Loss
4. High Reliability, IP65 & IP67
5. Low Specified PIM
6. High Reliability
7. Economic price
8. ISO9001,ISO14000,SGS RoHS Compliant
N Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz
| Electrical Specifications: | |||||||||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz | ||||||
| Split Way | 2way | 3way | 4way | 2way | 3way | 4way | 2way | 3way | 4way |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ||||||
| Insertion Loss(dB) | ≤3.3 | ≤5.2 | ≤6.3 | ≤3.3 | ≤5.2 | ≤6.4 | ≤3.3 | ≤5.2 | ≤6.5 |
| In-band Ripple(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | 50 | 50 | ||||||
| Connectors Type | N-Female | N-Female | N-Female | ||||||
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | Black Plated | Black Plated | ||||||
DIN Type Cavity Power Splitter-800-2500/800-2700/698-2700MHz
| Electrical Specifications: | |||||||||
| Frequency Range | 800-2500MHz | 800-2700MHz | 698-2700MHz | ||||||
| Split Way | 2way | 3way | 4way | 2way | 3way | 4way | 2way | 3way | 4way |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.25:1 | ||||||
| Insertion Loss(dB) | ≤3.3 | ≤5.2 | ≤6.3 | ≤3.3 | ≤5.2 | ≤6.4 | ≤3.3 | ≤5.2 | ≤6.5 |
| In-band Ripple(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.3 | ≤0.4 | ≤0.5 |
| Average Power(W) | 200/300/500 | 200/300/500 | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | 50 | 50 | ||||||
| Connectors Type | DIN-Female | DIN-Female | DIN-Female | ||||||
| Operating Temp.(℃) | -20~+55 | -20~+55 | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | For Indoor or Outdoor Use | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | Black Plated | Black Plated | ||||||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 7300m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Company Profile
HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China.
We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome.
We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes.
We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
