Home > Products > Hybrid Matrix Combiner > wideband 698-2700mhz microwave passive component combiner diplexer

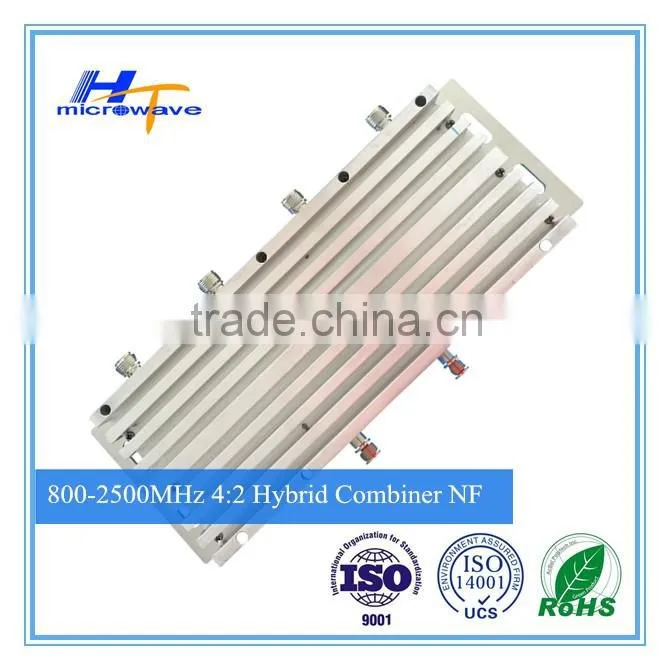

wideband 698-2700mhz microwave passive component combiner diplexer
- 30000 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
-
wideband 698-2700mhz microwave passive component triplexer combiner
-
wideband 698-2700mhz microwave passive component power combiner
-
wideband 698-2700mhz microwave passive component dual band combiner
-
wideband 698-2700mhz microwave passive component rf combiner
-
wideband 698-2700mhz microwave passive component hybrid combiner
-
wideband 698-2700mhz microwave passive component hybrid coupler 4x4
Product Details
| Place of Origin: | Anhui, China | Brand Name: | HTMICROWAVE | Model Number: | HT.HCP-0825-41101 |
Packaging Details
50PCS/Carton; Shipping Marks & Logo can be customized
Product Description
HTMICROWAVE CO.,LTD
| | | | |
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| | | | |
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
Hybrid Combiner is commonly used in combine two or more signals on the same frequency band.Its main function is to achieve a multi-channel broadband microwave signal and to ensure that the isolation between the output signal and reduce the signal interference.Mainly used in repeater station or base station for combing power,also can be used in indoor distribution system.
800-2500MHz Hybrid Combiner Series NF
800-2500MHz 2:1 Hybrid Combiner NF
800-2500MHz 2:2 Hybrid Combiner NF
800-2500MHz 3:1 Hybrid Combiner NF
800-2500MHz 3:2 Hybrid Combiner NF
800-2500MHz 4:1 Hybrid Combiner NF
800-2500MHz 4:2 Hybrid Combiner NF
800-2500MHz 4:4 Hybrid Combiner NF
698-2700MHz Hybrid Combiner Series NF
698-2700MHz 2:1 Hybrid Combiner NF
698-2700MHz 2:2 Hybrid Combiner NF
698-2700MHz 3:1 Hybrid Combiner NF
698-2700MHz 3:2 Hybrid Combiner NF
698-2700MHz 4:1 Hybrid Combiner NF
698-2700MHz 4:2 Hybrid Combiner NF
698-2700MHz 4:4 Hybrid Combiner NF
800-2700MHz Hybrid Combiner Series NF
800-2700MHz 2:1 Hybrid Combiner NF
800-2700MHz 2:2 Hybrid Combiner NF
800-2700MHz 3:1 Hybrid Combiner NF
800-2700MHz 3:2 Hybrid Combiner NF
800-2700MHz 4:1 Hybrid Combiner NF
800-2700MHz 4:2 Hybrid Combiner NF
800-2700MHz 4:4 Hybrid Combiner NF
|
| wideband 698-2700mhz microwave passive component combiner diplexer |
HT HYBRID COMBINER SERIES
1. Multiple-Band Frequency
2. Low Specified PIM
3. High Isolation,Low VSWR and Loss
4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant
HT Hybrid Combiner 3:1,3:2,4:1,4:2,4:4--800-2500MHz N-Female
| Electrical Specifications: | ||||||
| Combiner Type | 2:1 | 3:1 | 3:2 | 4:1 | 4:2 | 4:4 |
| Frequency Range | 800-2500MHz | |||||
| Insertion Loss(dB) | ≤3.5 | ≤5.5 | ≤7.0 | ≤7.3 | ||
| VSWR | ≤1.25:1 | ≤1.3:1 | ||||
| Isolation(dB) | ≥23 | ≥18 | ||||
| Average Power(W) | 100/200 | |||||
| Impedance(Ω) | 50 | |||||
| Connectors Type | N-Female | |||||
| Operating Temperature(℃) | -20~+55 | |||||
| Finish | Black Plated or Passivated Aluminum | |||||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Company Profile
HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China.
We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome.
We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes.
We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
Contact Us
- HTMicrowave Co., Ltd.
- Contact nameSunny Sun
- Phone0086-551-62725878
- AddressNo.1698, XiYou Road, HTMICROWAVE Industrial Park Hefei,Anhui
-
wideband 698-2700mhz microwave passive component 4 in 4 out hybrid combiner
-
wideband 698-2700mhz microwave passive component combiner 4 in 4 out
-
wideband 698-2700mhz microwave passive component rf combiner 2 in 2 out wideband 698-2700mhz microwave passive component hybrid
-
698-2700MHz 4 in 4 out 4x4 RF Power Combiner Hybrid Matrix N female
-
800-2700MHz 2 in 1 out 2x1 3dB Hybrid Coupler RF Combiner Matrix N Female
-
RF 698-2700MHz 2X2 3dB Hybrid Coupler Combiner/Matrix 2 in 2 out N Female
-
698/700-2700MHz RF Hybrid Combiner Matrix 3x2 3 in 2 out n female
-
RF 698-2700MHz 3x1 Hybrid Combiner Matrix 3 in 1 out n female 200/300/500W
-
rf 800-2700MHz 4x2 Hybrid Combiner Matrix 4 in 2 out n female connector
-
698/700-2700MHz RF reactive power 4x1 4 in 1 out Hybrid Matrix Combiner
-
698-2700MHz 4 in 4 out 4x4 RF Hybrid Matrix Combiner N female 200/300/500W
-
800-2500MHz 4 in 4 out 4x4 RF Hybrid Matrix Combiner N female/male connector
-
Low PIM3 698/700-2700MHz 4x4 4 in 4 out out hybrid combiner N Female -130dbc
-
698-2700MHz 4 in 4 out 4x4 Passive Hybrid Matrix Combiner N female DC-3Ghz
-
Low PIM3 800-2500MHz 4 in 4 out 4x4 Hybrid Matrix Combiner N female -130dBc
-
4:4 microwave combiner Hybrid Matrix Combiner 4 X4, 800-2500MHz with n female connectors
-
RF Hybrid Cominer 4 X1 4 ways combiner 800-2500MHz with n female connectors
-
800-2500MHz 100,200W micro wave passive component hybrid coupler 4x4
-
800-2500MHz 100,200W micro wave passive component 4 in 4 out hybrid combiner
-
800-2500MHz 100,200W micro wave passive component combiner diplexer
-
800-2500MHz 100,200W micro wave passive component combiner 4 in 4 out
-
microwave passive component, 800-2500MHz hybrid matrix combiner 4x4
-
800-2500MHz 100,200W micro wave passive component power combiner
-
800-2500MHz 100,200W micro wave passive component dual band combiner
