800-2500 mhz passive component rf hybrid antenna combiner

Name: 800-2500 mhz passive component rf hybrid antenna combiner
Brand: HTMICROWAVE
Availability: InStock

FOB Price

USD $85 - $85 / Piece

100 Pieces(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port shanghai ShenZhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	HTMICROWAVE
Model Number	HT.HCP-08251-41101

Packaging Details

50PCS/Carton; Shipping Marks & Logo can be customized

Product Description

HTMICROWAVE CO.,LTD

RELATED PRODUCT


Reactive Power Splitters	Directional Couplers	Hybrid Couplers	Hybrid Matrix Combiner	Attenuators

Dummy Load	Low PIM Attenuator& Terminations	Antennas	Cable Assembly	Connectors & Adapters

HT HYBRID COMBINER SERIES

What is a combiner?An RF combiner is used to combine RF from a number of different sources. This is achieved while maintaining the characteristic impedance of the system. Dependent upon the type of combiner it may introduce additional loss by using resistors, or it may be use transformers in which case it could in theory be lossless. Hybrid Combiner can be used in a number of different applications. They are used for sending several signals along a single feeder, and they may also be used for circuits where several RF signals need to be brought together

FEATURES OF PRODUCT

800-2500 mhz passive component rf hybrid antenna combiner

HT HYBRID COMBINER SERIES

1. Multiple-Band Frequency
2. Low Specified PIM

3. High Isolation,Low VSWR and Loss

4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

SPECIFICATION

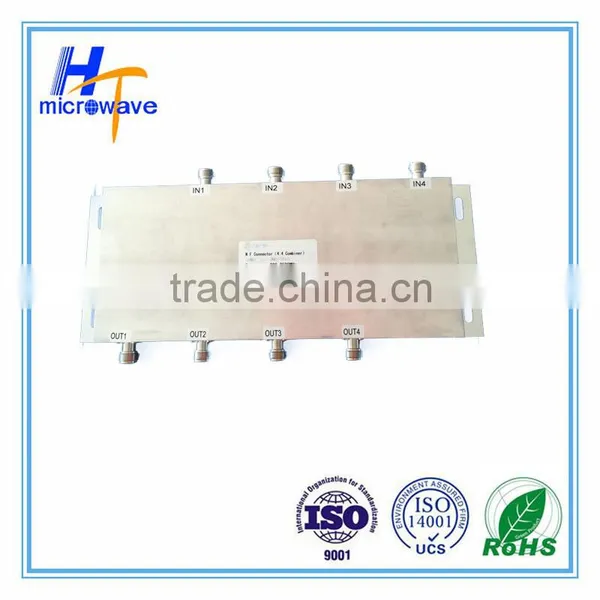

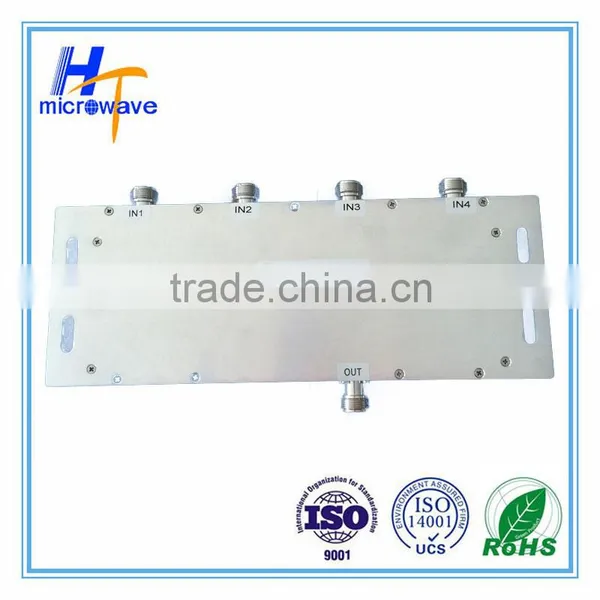

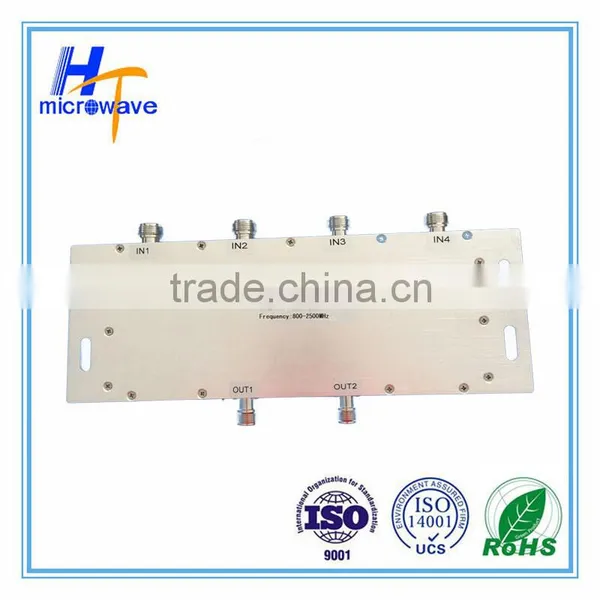

HT Hybrid Combiner 3:1,3:2,4:1,4:2,4:4--800-2500MHz N-Female

Electrical Specifications:
Combiner Type	2:1	3:1	3:2	4:1	4:2	4:4
Frequency Range	800-2500MHz
Insertion Loss(dB)	≤3.5	≤5.5	≤7.0	≤7.3
VSWR	≤1.25:1	≤1.3:1
Isolation(dB)	≥23	≥18
Average Power(W)	100/200
Impedance(Ω)	50
Connectors Type	N-Female
Operating Temperature(℃)	-20~+55
Finish	Black Plated or Passivated Aluminum

PACKAGE AND TRANSPORTATION

COMPANY FILE

HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m² and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.

TESTING EQUIPMENT

OUR CUSTOMERS

FAQ

Q:Are you factory or trading company?

A:We are manufacturer.

Q:How long is your delivery time?

A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.

Q:Do you provide samples?Is it free?

A:Yes,we provide samples if you need.Free or not is depended on the product you need.

Q:What is your terms of payment?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
