What is a combiner?An RF combiner is used to combine RF from a number of different sources. This is achieved while maintaining the characteristic impedance of the system. Dependent upon the type of combiner it may introduce additional loss by using resistors, or it may be use transformers in which case it could in theory be lossless. Hybrid Combiner can be used in a number of different applications. They are used for sending several signals along a single feeder, and they may also be used for circuits where several RF signals need to be brought together
|

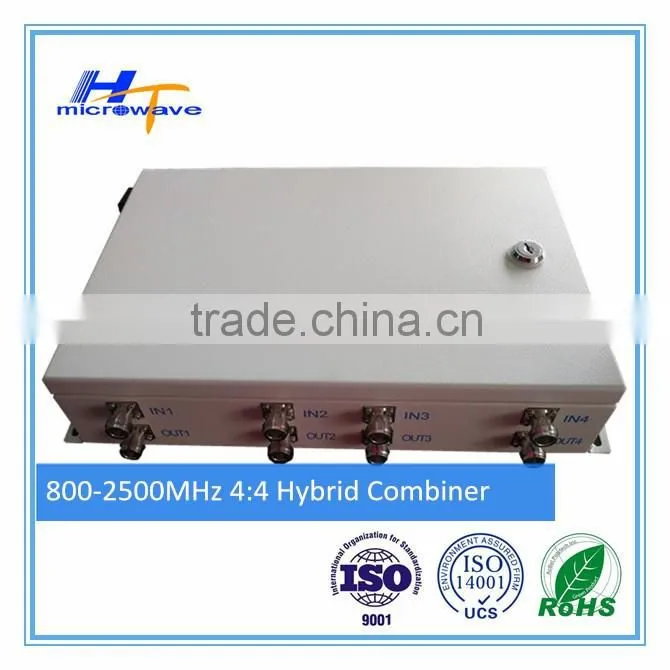

| 800-2500 mhz passive component microwave hybrid same band combiner |
HT HYBRID COMBINER SERIES
1. Multiple-Band Frequency
2. Low Specified PIM
3. High Isolation,Low VSWR and Loss
4. High Reliability,Moisture Sealed
5. Economic price
6. ISO9001,ISO14000,SGS RoHS Compliant

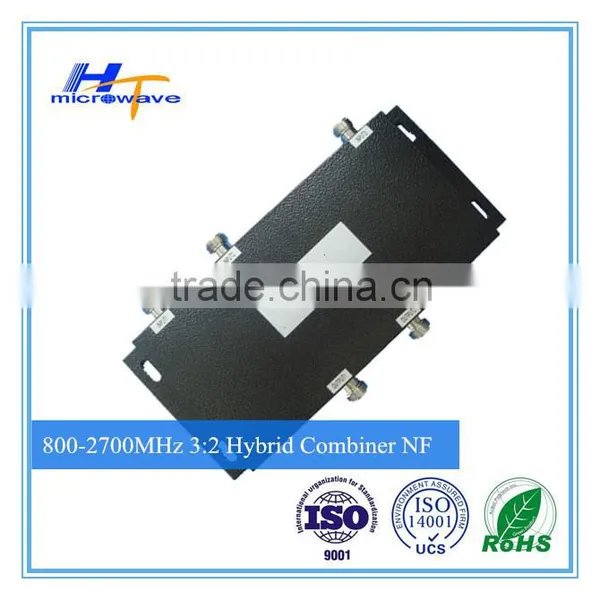

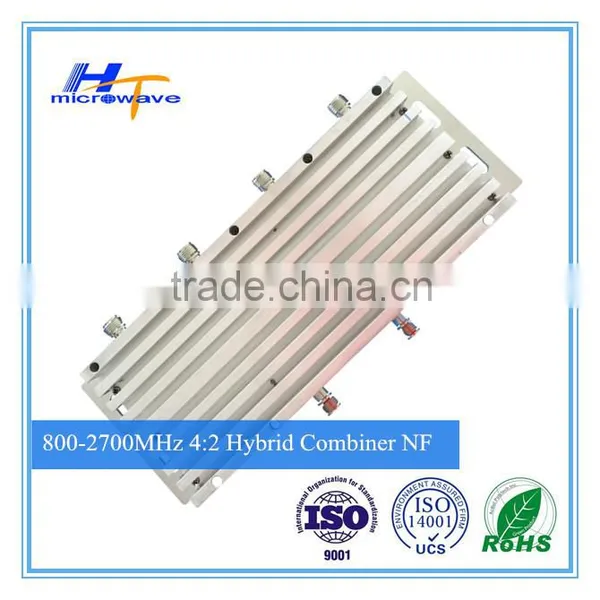

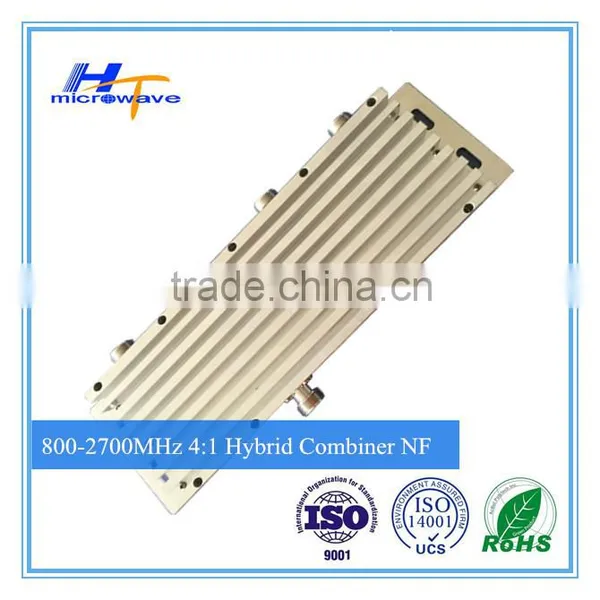

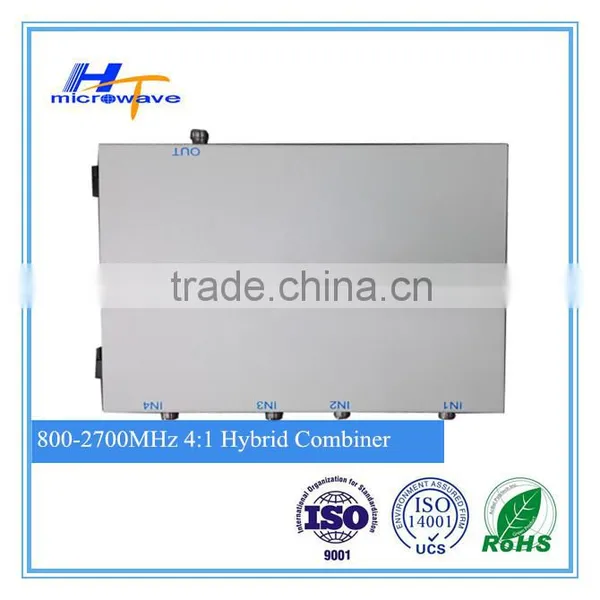

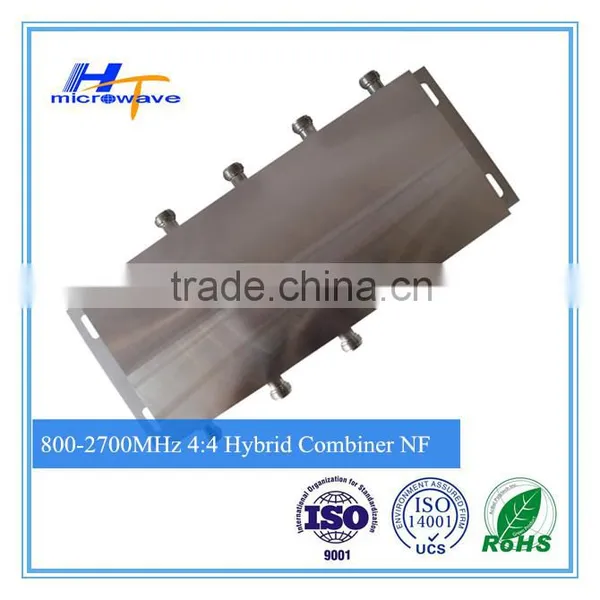

HT Hybrid Combiner 3:1,3:2,4:1,4:2,4:4--800-2500MHz N-Female
| Electrical Specifications: | ||||||
| Combiner Type | 2:1 | 3:1 | 3:2 | 4:1 | 4:2 | 4:4 |
| Frequency Range | 800-2500MHz | |||||
| Insertion Loss(dB) | ≤3.5 | ≤5.5 | ≤7.0 | ≤7.3 | ||
| VSWR | ≤1.25:1 | ≤1.3:1 | ||||
| Isolation(dB) | ≥23 | ≥18 | ||||
| Average Power(W) | 100/200 | |||||
| Impedance(Ω) | 50 | |||||
| Connectors Type | N-Female | |||||
| Operating Temperature(℃) | -20~+55 | |||||
| Finish | Black Plated or Passivated Aluminum | |||||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 73000m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
