Help CenterDirectional Cavity Coupler 698 - 2700MHz 5 6 7 10 15 20 30dB With DIN Female Connectors
Related Products
-
Passive Directional Coupler 800 - 2700MHz Directional Coupler DIN Type(Telecom Parts)NegotiableMOQ: 1 Piece -
RF Directional Coupler With DIN Female Connectors, 800-2500MHz , 10, 20dB (Telecommunication)NegotiableMOQ: 5 Pieces
-
RF Cavity Directional Coupler 800-2500MHz With N-Female ConnectorsNegotiableMOQ: 50 Pieces
-
698-2700MHz Microwave Passive Components RF Cavity Directional Coupler N Female ConnectorUS$ 2.5 - 3.5MOQ: 1 Piece
-
High Power 200/300/500w RF Passive Device N Female Connector Directional Cavity CouplerUS$ 2.5 - 3.5MOQ: 1 Piece
Directional Coupler---698-2700MHz BTS Type 5/6/7/10/15/20/30dB DIN-Female
Features:
1. Wide Frequency Range;
2. Excellent Coupling Flatness;
3. Low Insertion Loss;
4. Low VSWR;
5. High Directivity/Isolation.
6. Low Intermodulation, can reach -140/-150dBc.
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.

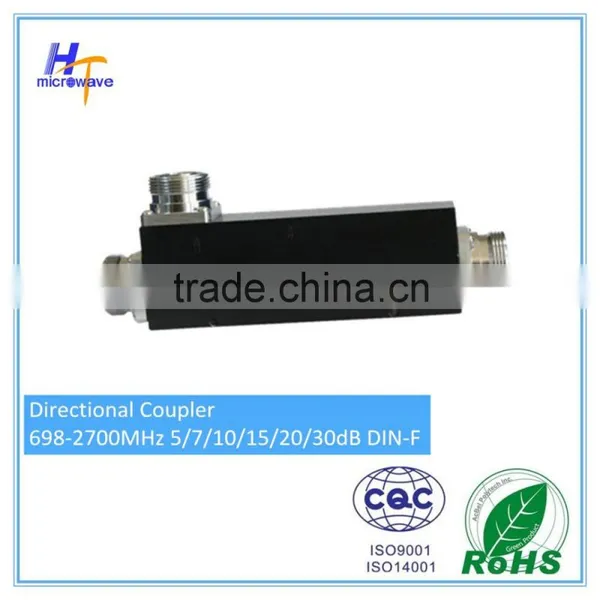

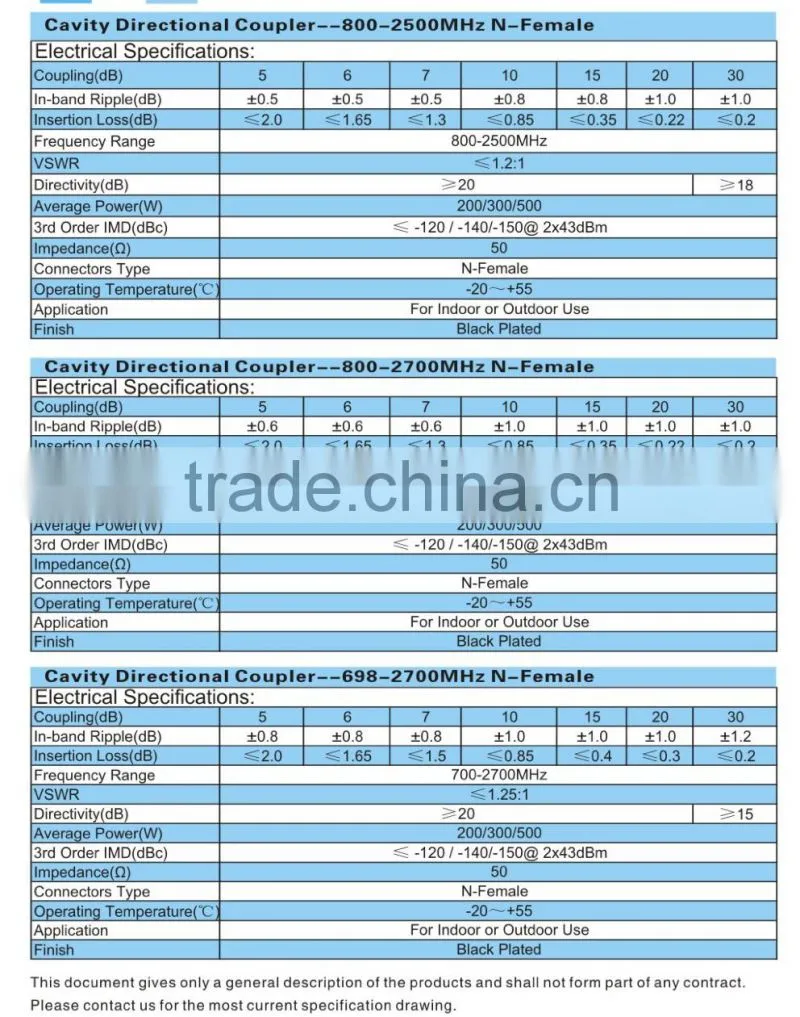

| 698-2700MHz Directional Coupler---BTS Type DIN-Female | |||||
| Model No. HT.BCP-0727-XX3304 | |||||
| Electrical Specifications: | |||||
| Frequency Range(MHz) | 698-2700 | ||||
| VSWR | ≤1.25:1 | ||||
| 3rd Order IMD (dBc) | ≤-140@ 2x43dBm | ||||
| Impedance(Ω) | 50 | ||||
| Average Power(W) | 300 | ||||
| Connectors | DIN-Female | ||||
| Operating Temperature(℃) | -25~+55 | ||||
| Ingress Protection | IP65 | ||||
| Net Weight (g) | 630 | ||||
| Finish | Black Plated | ||||
| Model No. | Coupling | Insertion Loss | In-band Ripple | Directivity | Dimensions |
| HT.BCP-0827-053304 | 5dB | ≤1.95dB | ±0.6dB | ≥20 | 167.4x65.7x36mm |
| HT.BCP-0827-063304 | 6dB | ≤1.5dB | ±0.6dB | ≥20 | 167.4x65.7x36mm |
| HT.BCP-0827-073304 | 7dB | ≤1.3dB | ±0.6dB | ≥20 | 167.4x65.7x36mm |
| HT.BCP-0827-103304 | 10dB | ≤0.75dB | ±0.8dB | ≥20 | 167.4x65.7x36mm |
| HT.BCP-0827-153304 | 15dB | ≤0.34dB | ±0.8dB | ≥19 | 167.4x65.7x36mm |
| HT.BCP-0827-203304 | 20dB | ≤0.3dB | ±1.0dB | ≥19 | 167.4x65.7x36mm |
| HT.BCP-0827-303304 | 30dB | ≤0.2dB | ±1.0dB | ≥19 | 167.4x65.7x36mm |
