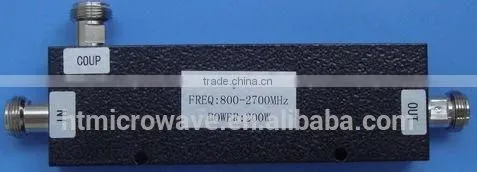

Directional Coupler---800-2500MHz Cavity Type N-Female
Features:
1. Wide Frequency Range;
2. Excellent Coupling Flatness;
3. Low Insertion Loss;
4. Low VSWR;
5. High Directivity/Isolation.
Applications:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
| 800-2500MHz Cavity Directional Coupler 5/6/7/10/15/20/25dB |
P/N: HT.ACP-0825-XX1138 (XX indicates coupling value) |

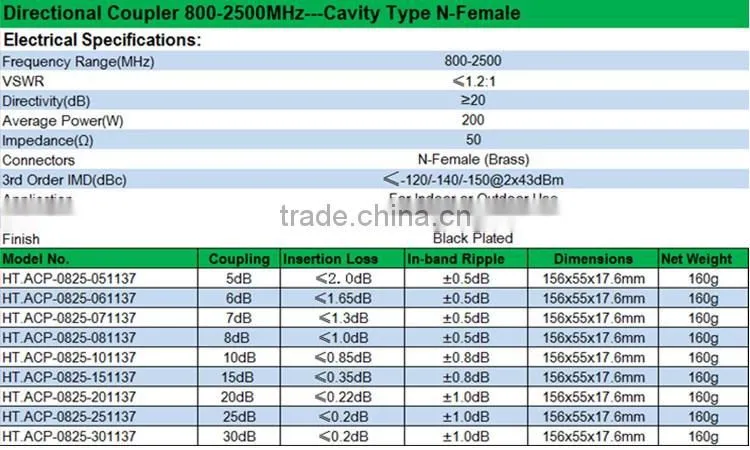

Electrical Specifications: |
1. Frequency Range(MHz): 800-2500 |
2. Coupling(dB): 5 6 7 10 15 20 25 |
3. In-band Ripple(dB): ±0.5 ±0.5 ±0.5 ±0.6 ±1.0 ±1.0 ±1.1 |
4. Insertion Loss(dB): ≤1.95 ≤1.5 ≤1.3 ≤0.75 ≤0.33 ≤0.21 ≤0.2 |
5. VSWR: ≤ 1.2:1 |
6. Directivity(dB): ≥20 |
7. Impedance(Ω): 50 |
8. Power(W): 200 |
9. Connectors: N-Female |
10. Operating Temperature(°c): -40- +70 |
11. Dimension(mm): Refer to the drawing |
12. Finish: Black plated |
