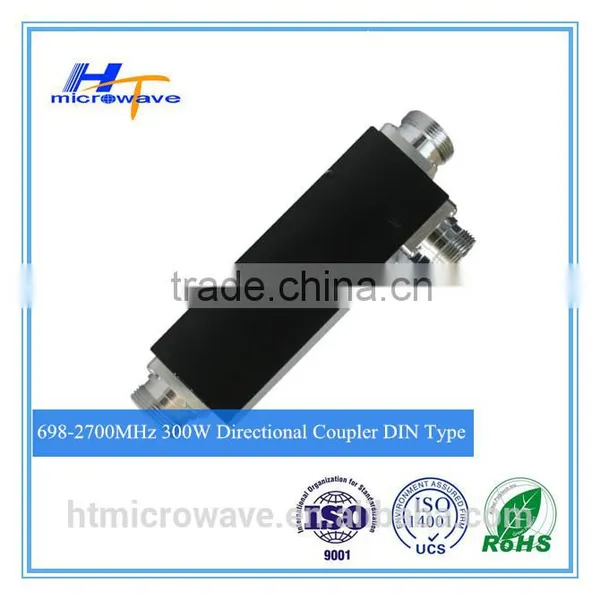

698/700-2700MHz 7/16 DIN connector Type rf Coupler Directional 5-30dB
- 2000 Piece / Pieces per Month
- Shanghai
- T/T
-
RF Directional Coupler, 800 - 2500MHz, 5 7 10 15 20dB, N-Female connectors
-
RF N Female Connector Directional Coupler/power tapper 5/6/7/ 8 /10 /15/ 20/30dB
-
800-2700MHz RF power tapper/Directional Cavity Coupler 5-40dB
-
Passvide device Directional Coupler 698 - 2700MHz Directional Coupler 5/7/10/15/20/30dB telecom parts
-
RF Cavity Directional Coupler 800 - 2700MHz 10dB directional coupler passive rf coupler
-
RF Directional Coupler 800 - 2500MHz 5 6 7 10 15 20 30dB directional coupler passive rf coupler
Product Details
| Place of Origin: | Anhui, China | Brand Name: | HTMICROWAVE | Model Number: | HT.BCP-0727-**3301 |
Packaging Details
50PCS/Carton;
Shipping Marks & Logo can be customized.
Product Description
HTMICROWAVE CO.,LTD
| | | | |
| Reactive Power Splitters | Directional Couplers | Hybrid Couplers | Hybrid Matrix Combiner | Attenuators |
| | | | |
| Terminations | Low PIM Attenuator& Terminations | Antennas | Cable Assembly | Connectors & Adapters |
Directional couplers are used in a wide variety of applications and can satisfy almost any requirement for sampling incident and
reflected microwave power conveniently and accurately with mininal disturbance to the transmission line
Cavity Directional Coupler Series
800-2500MHz Cavity Directional Coupler Series
698-2700MHz Cavity Directional Coupler Series
800-2700MHz Cavity Directional Coupler Series
380-2500MHz Cavity Directional Coupler Series
Base Station Directional Coupler Series
800-2500MHz DIN type Directional Coupler Series
698-2700MHz DIN type Directional Coupler Series
800-2700MHz DIN type Directional Coupler Series
|
| 698/700-2700MHz 7/16 DIN connector Type rf Coupler Directional 5-30dB |
HT Cavity Directional Coupler
1. Multiple-Band Frequency
2.Flat Response 698-2700MHz
3.Minimal RF Insertion Loss
4. Low Specified PIM
5. High Reliability
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant
HT Cavity Directional Coupler-800-2500MHz N-Female
| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.5 | ±0.5 | ±0.5 | ±0.8 | ±0.8 | ±1.0 | ±1.0 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.3 | ≤0.85 | ≤0.35 | ≤0.22 | ≤0.2 |
| Frequency Range | 800-2500MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥18 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
HT Cavity Directional Coupler-800-2700MHz N-Female
| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.6 | ±0.6 | ±0.6 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.3 | ≤0.85 | ≤0.35 | ≤0.22 | ≤0.2 |
| Frequency Range | 800-2700MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥18 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
HT Cavity Directional Coupler-698-2700MHz N-Female
| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.0 | ±1.0 | ±1.2 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.5 | ≤0.85 | ≤0.4 | ≤0.3 | ≤0.2 |
| Frequency Range | 700-2700MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥15 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
HTMicrowave Co., Ltd., established in 1992,is a new-high-tech enterprise which focus on microwave technology research,RF,microwave component and system industry development.We are located in HeFei,covering total 7300m2 and possess 300 advanced microwave detection devices and precision machining equipments. Now there are 3 subsidiaries,2 factories and 1 branch belong to HTMicrowave Co., Ltd., The capacity of production one year here is around USD200 million.
Our products contains 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitter, Directional Coupler, RF Attenuator Dummy Load, Cable Assembly, Connector, Filter, Duplexer and Combiner. Customers' designs (OEM / ODM) are also available.
Q:Are you factory or trading company?
A:We are manufacturer.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock.Or it is 15-20 days according to quantity.
Q:Do you provide samples?Is it free?
A:Yes,we provide samples if you need.Free or not is depended on the product you need.
Q:What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
Company Profile
HT Microwave Co., Ltd., established in 2005, is an ISO9001:2000 certified company. We are a leading microwave/RF component manufacturing and design company in China.
We focus on Microwave Technology Research, as well as RF Microwave Component and System Industry Development. Our products are widely used in communication network, satellite orientation, radar and military fields. We offer a highly diversified product line that serves top tier telecom / satellite companies.
Our products include 16 series and 1000 designs with their own property right and authority approval. The products are Power Splitters, Directional Couplers, RF Attenuators, Dummy Load, Cable Assemblies, Connectors, Duplexers, Combiners and antenna. Customers' designs (OEM / ODM) are also welcome.
We have Two Microwave Industrial Parks, One R&D Center, Two Branch Factories,hundreds of advanced microwave measuring instruments and automation equipment for precision machining & specialized production and 100 sets of Numerical Control Lathes.
We are continuously seeking new ways to develop new products. With our enthusiasm, innovative technology and professional services, we will create sustainable development for our customers around the world and make more contribution to the communication field.
