Directional couplers are used in a wide variety of applications and can satisfy almost any requirement for sampling incident and
reflected microwave power conveniently and accurately with mininal disturbance to the transmission line
Cavity Directional Coupler Series
800-2500MHz Cavity Directional Coupler Series
698-2700MHz Cavity Directional Coupler Series
800-2700MHz Cavity Directional Coupler Series
380-2500MHz Cavity Directional Coupler Series
Base Station Directional Coupler Series
800-2500MHz DIN type Directional Coupler Series
698-2700MHz DIN type Directional Coupler Series
800-2700MHz DIN type Directional Coupler Series
|
| Directional Coupler, 800-2500MHz, 698-2700MHz, 800-2700MHz, N and DIN Connectors |
HT Cavity Directional Coupler
1. Multiple-Band Frequency
2.Flat Response 698-2700MHz
3.Minimal RF Insertion Loss
4. Low Specified PIM
5. High Reliability
6. Economic price
7. ISO9001,ISO14000,SGS RoHS Compliant

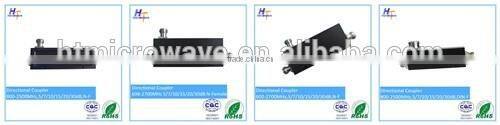

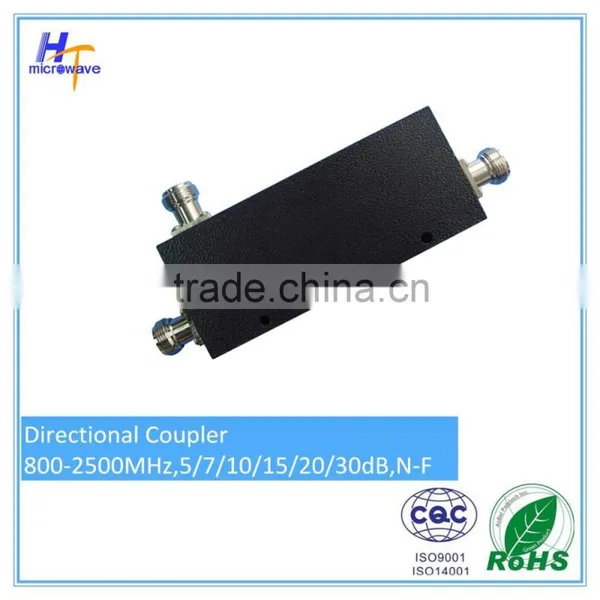

HT Cavity Directional Coupler-800-2500MHz N-Female

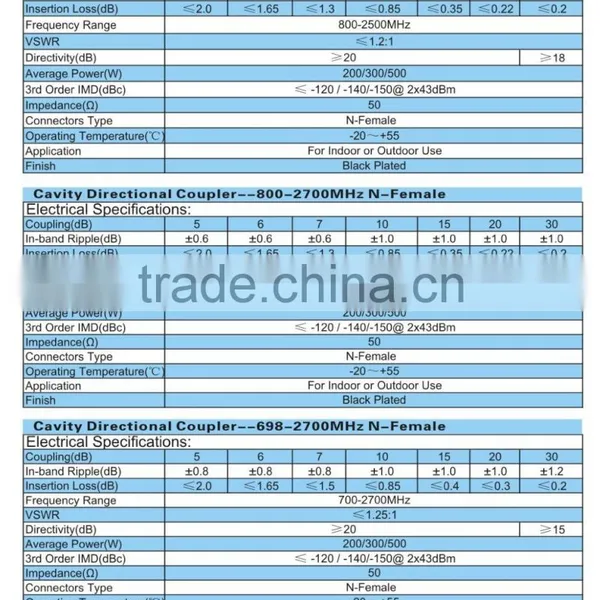

| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.5 | ±0.5 | ±0.5 | ±0.8 | ±0.8 | ±1.0 | ±1.0 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.3 | ≤0.85 | ≤0.35 | ≤0.22 | ≤0.2 |
| Frequency Range | 800-2500MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥18 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
HT Cavity Directional Coupler-800-2700MHz N-Female
| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.6 | ±0.6 | ±0.6 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.3 | ≤0.85 | ≤0.35 | ≤0.22 | ≤0.2 |
| Frequency Range | 800-2700MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥18 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
HT Cavity Directional Coupler-698-2700MHz N-Female
| Electrical Specifications: | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 15 | 20 | 30 |
| In-band Ripple(dB) | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.0 | ±1.0 | ±1.2 |
| Insertion Loss(dB) | ≤2.0 | ≤1.65 | ≤1.5 | ≤0.85 | ≤0.4 | ≤0.3 | ≤0.2 |
| Frequency Range | 700-2700MHz | ||||||
| VSWR | ≤1.25:1 | ||||||
| Directivity(dB) | ≥20 | ≥15 | |||||
| Average Power(W) | 200/300/500 | ||||||
| 3rd Order IMD(dBc) | ≤-120/-140/-150@2X43dBm | ||||||
| Impedance(Ω) | 50 | ||||||
| Connectors Type | N-Female | ||||||
| Operating Temperature(℃) | -20~+55 | ||||||
| Application | For Indoor or Outdoor Use | ||||||
| Finish | Black Plated | ||||||
