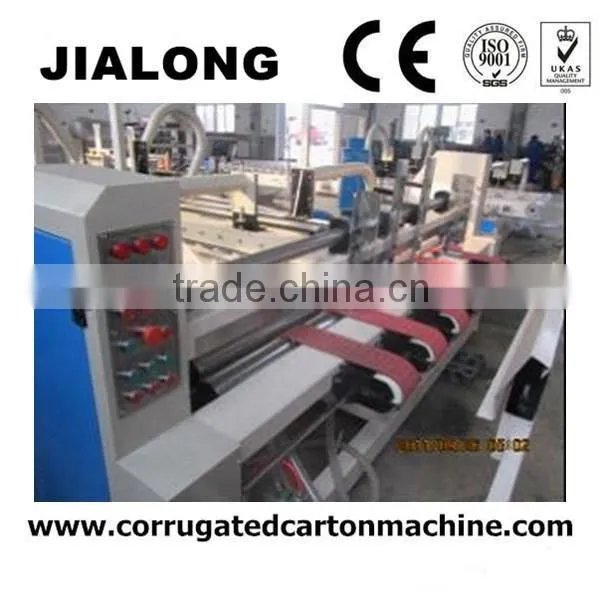

TECHNOFOLD SERIES Fully Automatic High-Speed automatic folder gluer, automatic folder gluer ES-800SL

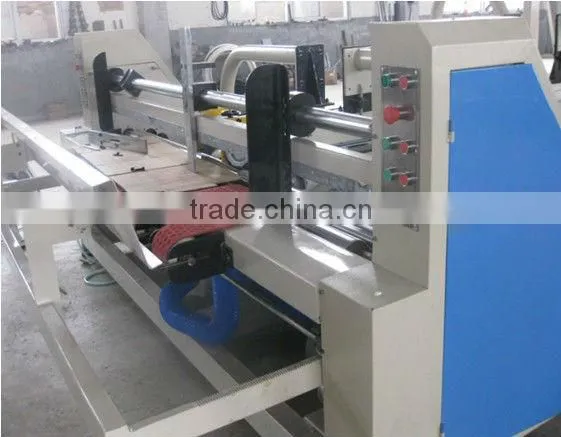

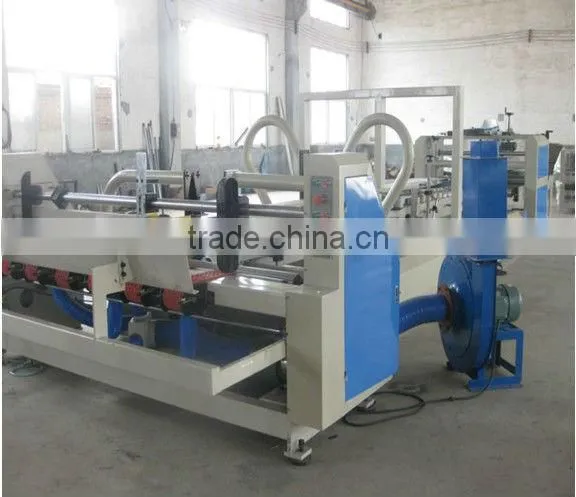

TECHNOFOLD ES 800 SL
1. Introduction
ES 800 is specially indicated for small to medium packaging companies,commercial printers and finishers.Can run from small to medium sized boxes.The simple but clever design of ES series makes it ideal for those who are new on the folding and gluing but at the same time will exceed the expectations of the most experienced.The standard machine comes with accessories for straight line and crash lock bottom boxes.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .800gsm |
| Corrugated flute tyep | N,E & F |
| Capablity | |
| Speed | max. 280m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 12mm |
| Blank width | 100-800mm |
| Dimensions & Weight | |
| Length | 14m |
| Width | 1.5m |
| Height | 1.35m |
| Net Weight | 8.4Ton |
| Installation | |
| Electrical connected load | 18KW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60L |
BOXES
|
Straight Line
A:120-800mm B:60-750mm |
|
|
Lock-bottom Box
A:160-800mm B:750mm C:min.60mm D:20-160mm
|
|
|
4-corner Box
A:120-800mm B:130-750mm C:20-140mm D:80-520mm |
|
|
6-corner Box
A:300-800mm B:130-750mm C:30-140mm D:105-190mm
|
Key Components
| Description | |
|
1. Feeder section:
|
|
|
2.Side register section
|
|
|
3.Pre-folding section:
|
|
|
4.Crash lock bottom section
|
|
|
5.Lower gluing Unit
|
|
|
6.Upper gluing unit
|
|
|
7. Folding and Closing section:
|
|
|
8.Trombone section:
|
|
|
9.Press section(Delivery section):
|
|
|
10)4 and 6-corner device
.
|
JL WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines,JL has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, JL machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
|
• Founded in 1985 under the previous name:
Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
|
• 1986-1989 started exporting to Southeast Asia. |
|
• In 1990 sold the first folder gluer in China, opened domestic market. |
|
• 1993 Laminating machine ETH series into production. |
|
• 1998 Automatic die-cutter Technocut series into production. |
|
• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
|
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |
|
• 2007 CE certifications for all range of products. |
|
• 2008 attended Drupa exhibition for the first time. |
|
• 2012 Smartfold series intelligent folder gluer into production. |
GLOBAL SOLUTION
JL Machinery provides 360 º services . Service process, JL not only embodies in to pre-sales service, such as helping the customer get to know JL products, enhancing customer confidence in JL products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. JL’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
CONTACT
so i will give you a best quotation:
Fax:0086-317-7897598
Sales hotline/WhatsApp/Viber/Wechat:008618713728915
Factory add:South Development Zone, Dongguang County,Cangzhou City, Hebei P. R. China.
