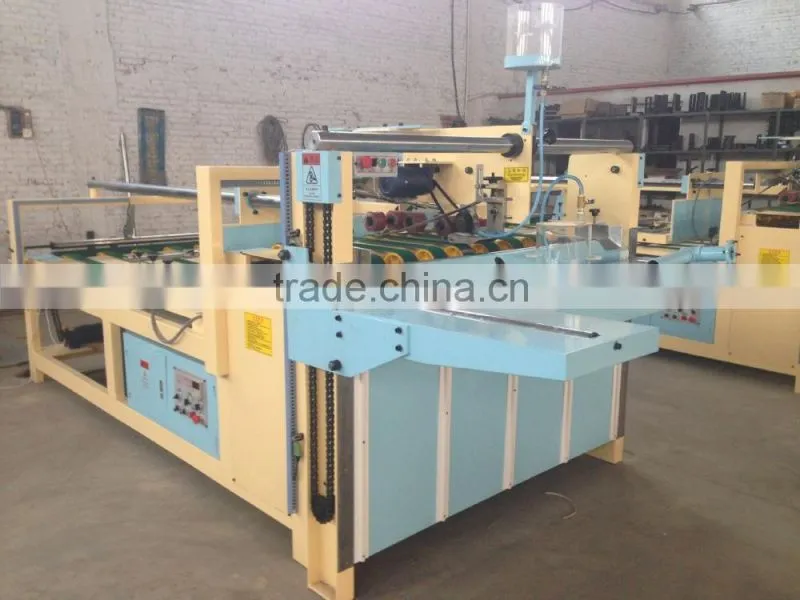

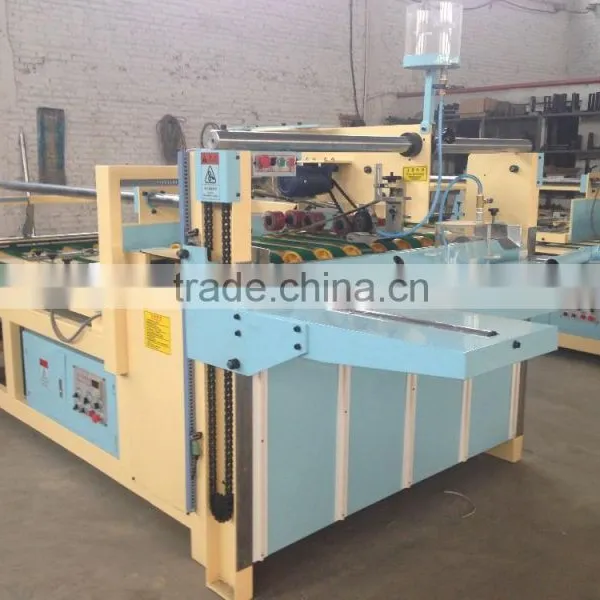

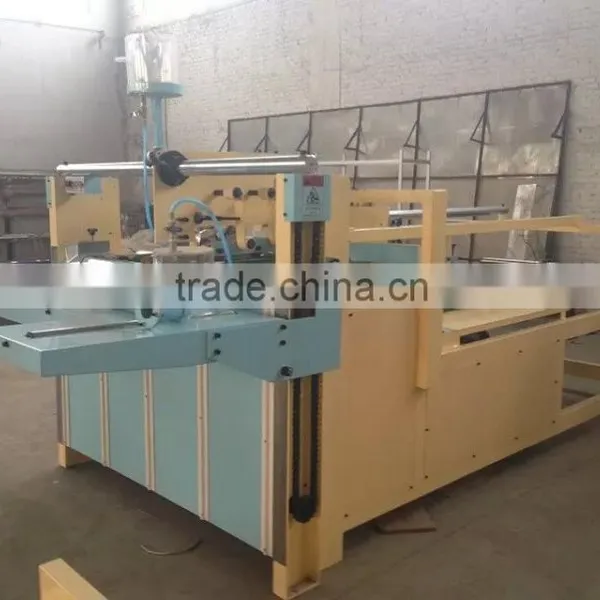

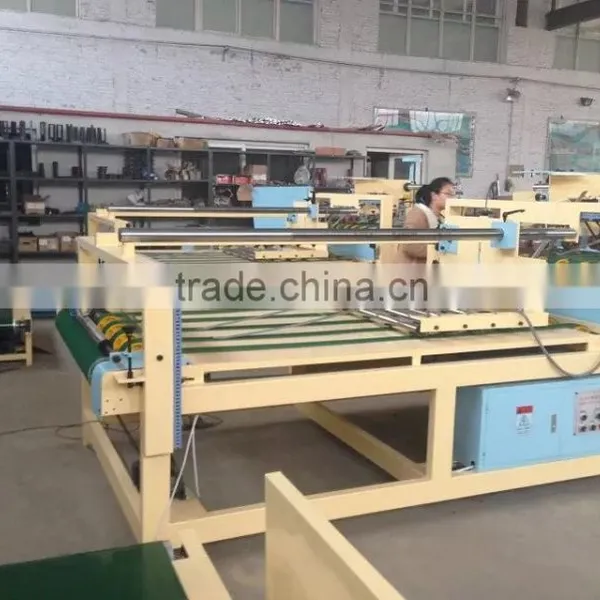

Semi-automatic Folder Gluer(Press model)
Semi-Auto Gluer Machine (Combined pressure model) is the latest exploit. According to the small order of the user,
1. It has a small volume and cover small area,
2. Easy operation without of having experience, applicability range is wide.
3. Suitable for small quantity produce and simple to change variety.
4. Ordinary carton and heterogeneous shape can be glued,
5. It saves glue and the glue dosage is one third of the manual glue dosage.
6. Maxium mechanical speed is 56m/min, efficiency is 4 times higher than manual operation.
7. Adhesive is strong, tidy and not leak glue, UV light membrane and plastic coated of sticky mouth section can be polished and removed by two-headed burnish implement, improving the glue adhesive and solve the difficulty of some cartons are easy to opening glue problem in some seasons.
8. With manual folding carton, it will improve the work efficiency and suitable for wrong indentation line made by automatic machine, special abnormal shape and cartons with window on paperboard.
Grinding paper department
1. The burnishing wheel is adopt special material for its high hardness and long life,
2.Highspeed burnishing wheel improve burnishing paper effect, efficient cleaner adsorptive the paper scraps, keep clean and tidy work environment.
Glue department
1. Adopt stainless steel bucket for suppling glue, hard to rust, high corrosion resistance.
2. Multiple types of pasting wheel, meet all kinds of production.
Model |
XGM-1500 | XGM-1800 |
Voltage |
3-380VAC |
3-380VAC |
Hz |
50/60hz |
50/60hz |
Power |
3.2kw |
3.2kw |
Current |
6.3A |
7A |
Weight |
1.0T |
1.3T |
Overall size |
2200x1900x1300mm |
2200x2400x1300mm |
Max size of box |
1500x1100mm |
1800x1100mm
|
Min size of box |
200x260mm |
200x260mm |
