Flexo folder gluer machine
Feature:
SHH-E Series of Full automatic flexo folder gluer machine is a new economical high speed and crash lock bottom automatic folder gluer for both corrugated cardboard box and ordinary paperboard box.
The forming beautiful shape, easy to fill boxes in kind, more convenient to open. Separate operation before and after the single transducer. Is more economical, more practical models. Professional for the wine box, gluing side keep stright no inclined, sticky boxes degree of intensity, will not be break and cractk, etc., can do 15,000 or more per hour like the wine box with crash lock bottom.
Wroking principle:
After starting the machine, the automatic paper feeding table will feed the paper sheets needed to be pasted out one by one continuously. The gluing device will automatically coat the glue on the adhesive position of paper box evenly. The glued paper sheets also will automatically send to the fold part. In the course of paper sheets ahead, the belt device of the fold part will automatically fold and stick the paper box. After finishing the fold and adhesion, send the paper box to the pressing part. After pressing, send it to the conveying part to be pressed firmly, finally send it to the paper receiving table. The whole working procedure is finished.
Specifications:
1. Main parameter
Model |
Speed |
Paper weight |
Power |
Weight |
Overall dimension |
m/min |
g/m2 |
KW |
T |
mm |
|
JT-SHH1200E |
220 |
200-800 and corrugated cardboard |
11 |
2.8 |
11000 x1450x 1400 |
JT-SHH1400E |
220 |
200-800 and corrugated cardboard |
11 |
3.2 |
11000 x1650x 1400 |
JT-SHH1600E |
220 |
200-800 and corrugated cardboard |
11 |
3.6 |
11000 x1850x 1400 |
JT-SHH1800E |
220 |
200-800 and corrugated cardboard |
11 |
4.2 |
11000 x2050x 1400 |

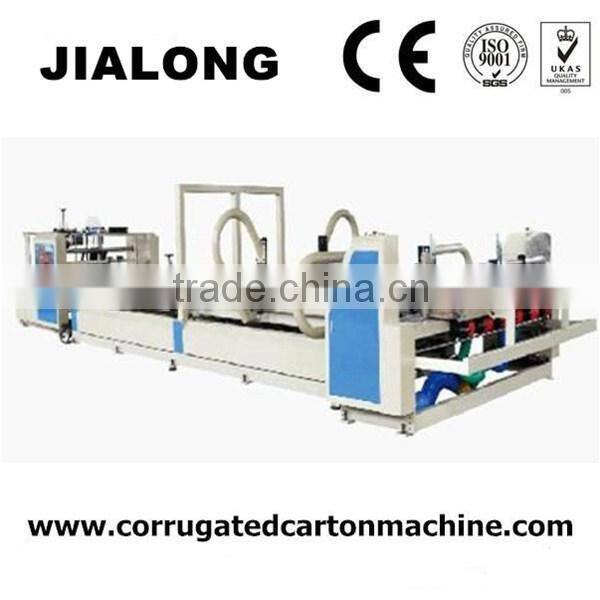

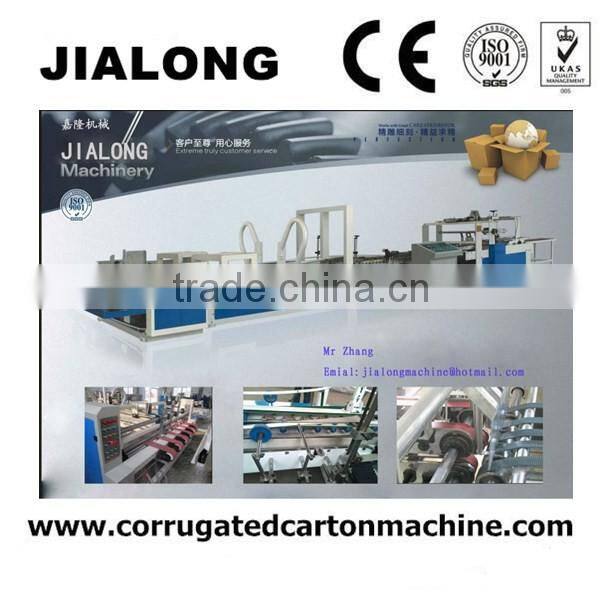

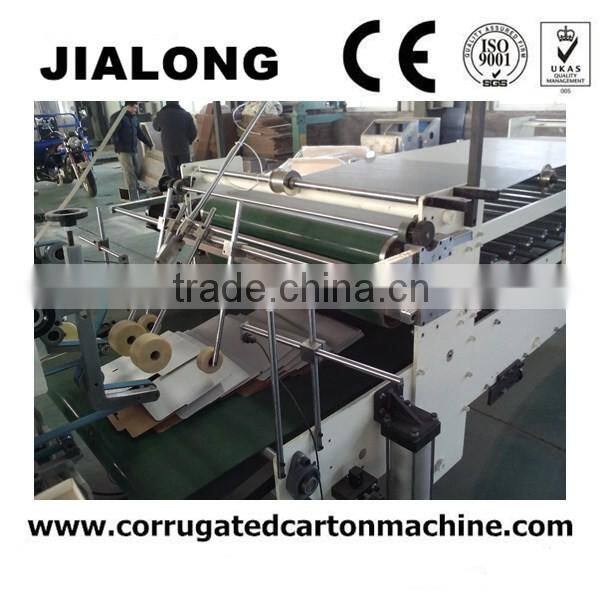

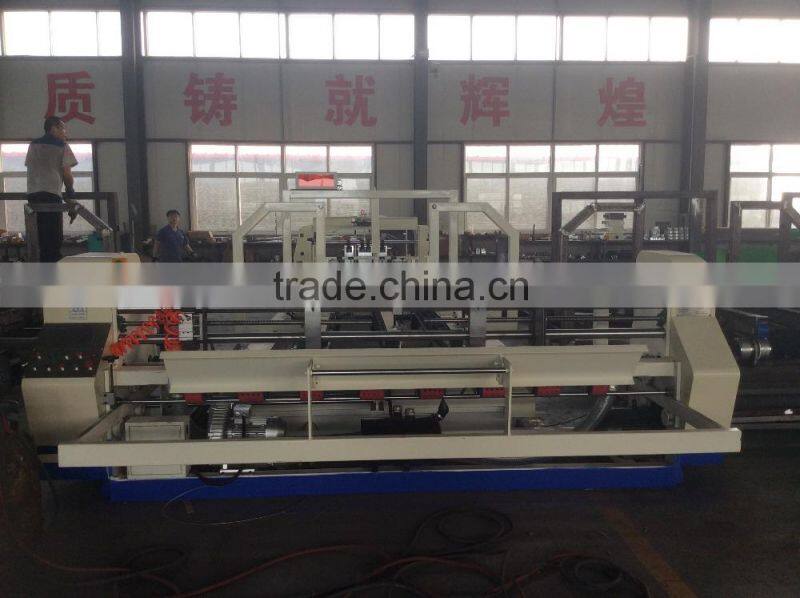

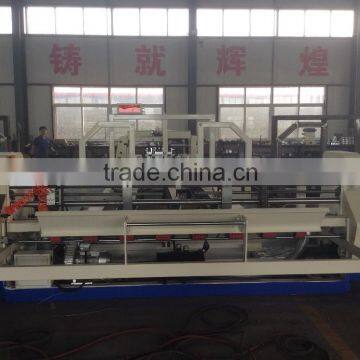

Machine pictures:
We are specializing in manufacturing printing & packaging machinery like Paper bag making machine, Die cutting and creasing machine, Folder gluer machine, Paper cutting machine, Paper folding machine, Flexo printing machine and most of relevant machine.
With us, your money is safe, and your business is safe!
