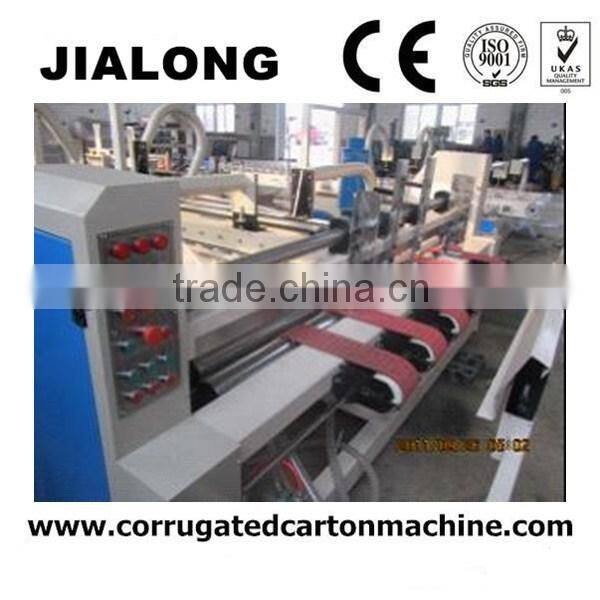

Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine

Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine thumbnail-1
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine thumbnail-2
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine thumbnail-3
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine thumbnail-4
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine photo-1
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine photo-2
Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine photo-3

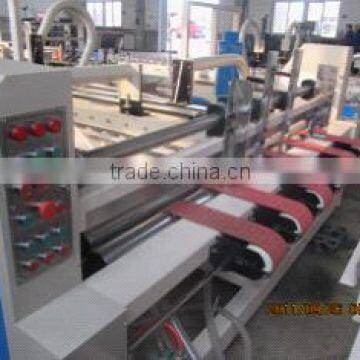

Manufacture Price Corrugated Cardboard Folder Gluer Craft Carton Box Making Machine photo-4
US$ 1,000 - 1,000 MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Film
Contact Supplier Request Quote Chat Now
Dongguang Jialong Packaging Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Machinery & Hardware
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 7.45kw
Place of Origin Hebei, China
Brand Name JIALONG
Model Number JL-2000
Dimension(L*W*H) 5200X1820X1500
Weight 4000kg
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas



PRODUCT INTRODUCTION:
The ZH-800A/880A1000A is one type of the pre-fold equipments. lt adds first line folds 180°, and third line folds 90°. with preford function, the box can be open easily, On the automatic packing machine, particularly for the medicine box. lt is widely uesd in medicine box, wine box and other box. lt's an essential equipment for printing industry.
CHARACTERISTICS:
Box forming:Either side folds, the both sides prefold and either side glue.
Paper board feeding:Automatic feeding
Way of folding:First?second and fourth lines fold 180°,third line fold90°.
Line speed:0~220 m/min continuous adjustment.
Usage paper:210~600g/m2 Paperboard.
Binder:Dissolve the type.
Speed:6000c/min
Electric:Single-phase AC220V 3.7KW
Weight:2000kg
Dimension:8500×900×1300 mm
The counting range:0~999999(full-automatic)

Technique parameter:


Model

Model

AMax

AMin

BMax

BMin

CMax

CMin

DMax

DMin

ZH-800A

Side paste  box

560mm

106mm

500mm

65mm

270mm

50mm

7mm

6mm

Pre folding box

560mm

180mm

500mm

65mm

270mm

90mm

10mm

6mm

ZH-880A

Side paste box

660mm

110mm

500mm

65mm

320mm

50mm

7mm

6mm

Pre folding box

660mm

180mm

500mm

65mm

320mm

90mm

10mm

6mm

ZH-1000A

Pre folding box

760mm

130mm

600mm

80mm

370mm

60mm

10mm

8mm

Pre folding box

760mm

180mm

600mm

80mm

370mm

90mm

15mm

8mm





Manufacture price Corrugated cardboard folder gluer craft carton box making machineManufacture price Corrugated cardboard folder gluer craft carton box making machineManufacture price Corrugated cardboard folder gluer craft carton box making machine



Jialong Packaging Machinery Co.,Ltd  is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.

Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.

We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together



Manufacture price Corrugated cardboard folder gluer craft carton box making machineManufacture price Corrugated cardboard folder gluer craft carton box making machineManufacture price Corrugated cardboard folder gluer craft carton box making machine
