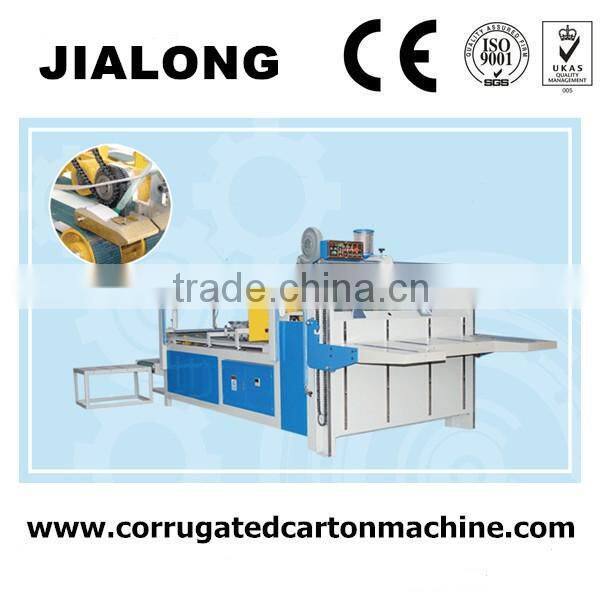

JL-1 Semi Automatic Corrugated Box Folder Gluer Machine

JL-1 Semi Automatic Corrugated Box Folder Gluer Machine photo-1
JL-1 Semi Automatic Corrugated Box Folder Gluer Machine photo-2
US$ 20,000 - 20,000 MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Textiles, Beverage, Machinery & Hardware, Textiles
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Other, Textiles, Beverage, Machinery & Hardware, Textiles
Packaging Type Film
Packaging Material Plastic
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 220V/380V
Power 4kw
Place of Origin Hebei, China
Brand Name JIALONG
Model Number JL-1
Dimension(L*W*H) 5200x1820x1500
Weight 2000kg
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Corrugated box folder gluer machine

JL-1 Semi automatic corrugated box folder gluer machineJL-1 Semi automatic corrugated box folder gluer machine





Features

  • The RD-ZXJ series of semi automatic corrugated box folder gluer machine is widely used in folding and gluing paperboard and corrugated cardboard.
  • The machine is composed of the main structure and 2 conveyor unit.
  • The structure is consist of the following units:
    • Frame
    • Lifting workbench
    • Forepart paper feeding device
    • Forepart correction device
    • Midpiece conveying device
    • Midpiece pressing device
    • Finished products side outputting device
    • Electrical control system
  • All the electrical components are imported named brand.
  • Equipped with a simple and reliable operation system.
  • Quick changing order according to the different size of carton box.
  • Automatic counting.



Specifications



ModelUnitRD-ZXJ2000RD-ZXJ2400RD-ZXJ2800
Max (length+width)*2mm200024002800
Min (length+width)*2mm340340340
Max (width+height)*2mm151515151515
Min (width+height)*2mm240240240
Feeding heightmm900900900
Speedm/min606060
PowerKW2.22.22.2
WeightT1.8522.15















Company Information

Jialong Packaging Machinery Co.,Ltd  is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of corrugated cardboard production line, automatic flexo ink printing slotting die cutting machine, semi-autoatic flexo ink printing slotting machine,auto rotary die cutting machine ,single facer corrugator machine, flute laminating machine, automatic carton folder gluer machine,carton stitching machine, slotting machine, thin blade slitter scorer machine, egg tray making machine, paper edge protector making machine, paper tube core making machine and other relevant packaging machinery.

Many years before, our company considers “Quality is first, Honesty is root” as our principal, to meet customers’ demand is our target. We can supply from machine design to after-sale all service with high quality and professional technique.

We would like to cooperate with friend from every countries sincerely, and we will work hard to create the future of package together

JL-1 Semi automatic corrugated box folder gluer machine





Our Services

After Sales Service
We deeply know that, excellent and effcient after-sales service is an indispensable part for clients to achieve due benefits. To offer most favourable and satisfactory service for wide clients, we hereby solemnly promise:
fessional technicians will be assigned to client's site to give guidance in equipment installation and commissioning and hole training class for operators;we also offer charge-free training in our company for operators and maintenance personnel if requsted by clients.
2.The equipments will be delivered accompanied with detailed installation and operation manual and related information. Upon client's request,we can also offer plant layout design by free of charge.
3.All the equipments are offered with one year quality warranty. within the warranty period, maintenance of equipment and replacement of wearing parts are charge-free.Affer the guarantee is expired, we offer long-term maintenance service and supply of parts and components at cost price. Clinets Complaint: A speacias round-clock fax will receive your complaints seriously. We will response within 24 to 48 hours affer receiving your complaints by phone call or going to site.
