China computer control ldpe plastic bag making machine price Quality Choice

Specifications

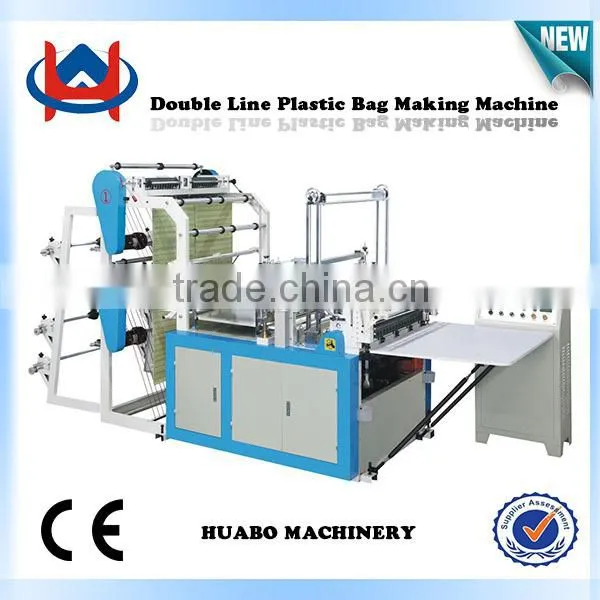

Plastic T-Shirt Bag Making Machine Price
They are famous for high quality, high efficiency, and easy handling with competitive

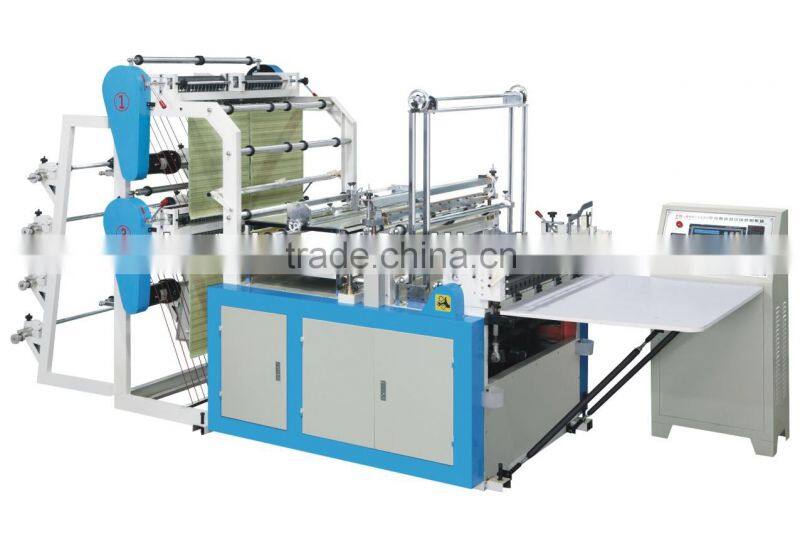

  China computer control ldpe plastic bag making machine price







Use

The machine adopts the materials like rolled LDPE and HDPE film etc to manufacture vest bags. It adopts computer PLC control, featuring in high degree of automation, and servo, (stepping) motor to fix the length, photoelectric tracking, auto punch, finished product automatic conveying, automatic temperature control, automatic counting system, alarm system etc.





Feature:

1. One time four bags.

2. T-shirt bag making machine is suitable for making print bags or no-print bags.

3. The sealing and cutting device adopts one computer to control the machine.

4. The punch device adopts another computer to control. If moving the punch unit out, the sealing and cutting device also can make flat bags.

5. The waste film under the machine will be delivered out by another conveyer belt under the machine.

6. The machine can run two lines for making plain bags, one time four bags. Only one line when making printed bag. Photo cell is used for print bag to do one line production.



Main technical parameter:

Type: vest bag. Shopping bag. flat bag
Model	700	900
Max Width	300mm	400mm
Max. Length	800mm	1000mm
Speed per Minute	20×4-130×4pcs/min	20×4-130×4pcs/min
Air pressure required	0.5-0.6mpa	0.5-0.6mpa
Power of Main Motor	4kw	6kw
sealing thickness	0.008-0.10mm	0.008-0.10mm
Overall Dimensions	5000X1100X1700mm	5000X1200X1800mm

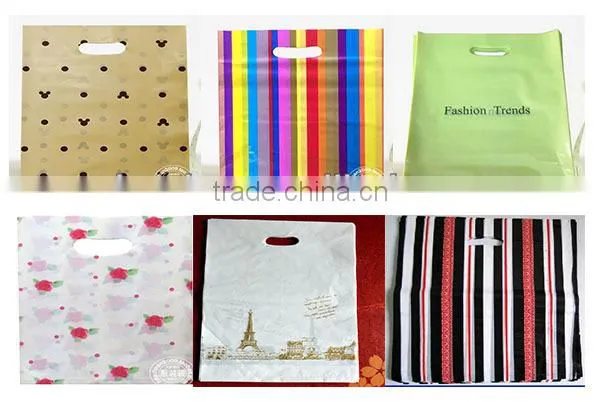

 Bag samples
