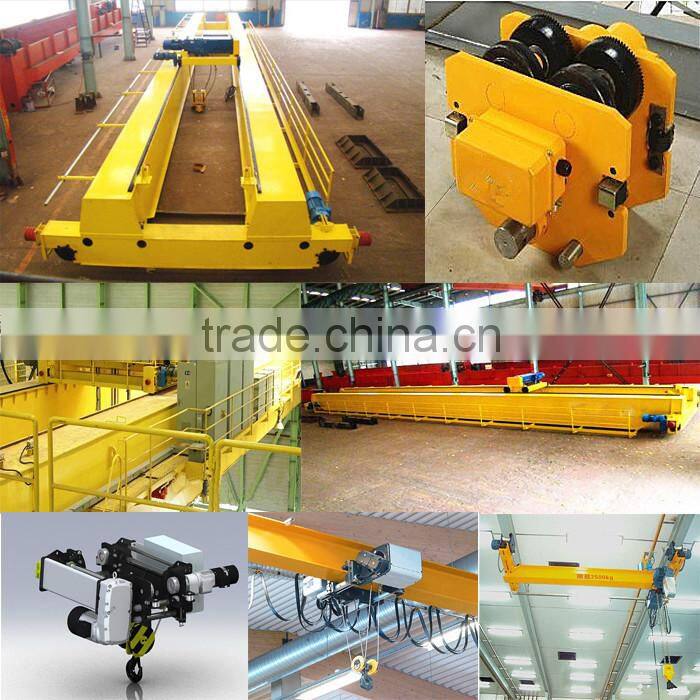

Europe Design 10T QD Type Double Girder Overhead Crane

Specifications

                              Europe Design 10T QD Type Double Girder Overhead Crane

1. The frame of crane beam is square box frame, it is m ade by Q235 steel plate,

2. The lifting unit is wire rope electric hoist, it is developed from CD/MD or HC/HM model electric hoist, and it is low headroom frame, it takes smaller space on vertical direction.

3. This overhead crane(bridge crane) has several safe protection functions, such as up/down limit switch, overload protection, low-voltage protection and long travelling limit switch, and the cross and long travelling motors have soft start function, the crane is very easy to use.

Europe overhead crane is medium duty class overhead crane, the capacity from 1ton to 20tons. The span from 7.5m to31.5m, the working grade is A3-A4. Working temperature within -25 to +40 centigrade.

This overhead crane(bridge crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.

technical parameter

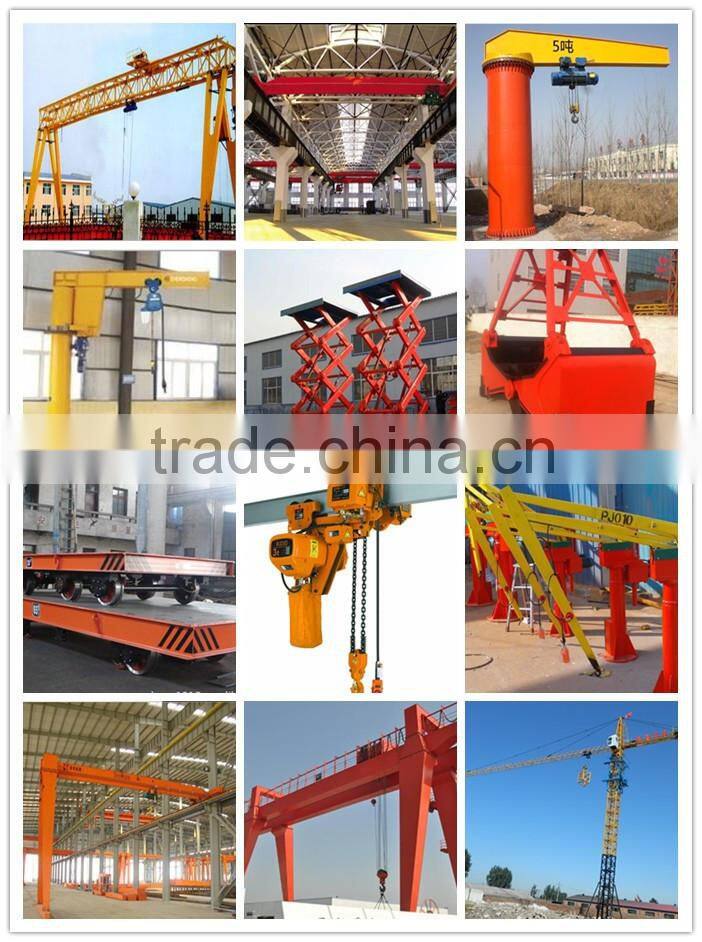

What kind of overhead crane we can produce?

 Safe features

1) Weight overload protective device

2) Top quality polyurethane buffer

3) Crane traveling limit switch and lifting limit switch

4) Low voltage protection function

5) Emergency stop system

6) Current overload protection function.

Packing suitable for sea transportation to make sure all the goods arrive at client's job site in good condition.

1. Large pieces like main girders and spporting legs are delivered as bulk cargos;

2. Smaller pieces such as electrical control, trolley, end carriages, motors ect. are packed in wooden boxes and delivered inside containers to avoid damages during sea transportation as much as possible.

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Lifting height.(hook center to ground)

3. Have you installed the rails? Do you need us supply the rails? How long is it?

4. Power supply: Voltage.

5. Working condition: which material to lift? temprature?

6. Would be better if you have drawings of your plant.

This is only an overview of our products ,for more details,please never hesitate to

contact jackie !
